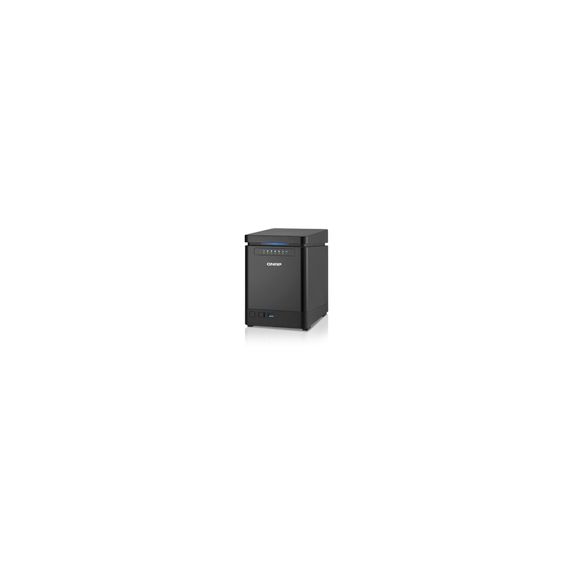

QNAP TS-453mini / NAS server / 4 bays / SATA 6Gb/s / RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare / Gigabit Ethernet / iSCSI | TS-453MINI-8G
QNAP TS-453mini / NAS server / 4 bays / SATA 6Gb/s / RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare / Gigabit Ethernet / iSCSI | TS-453MINI-8G
Description Feel surprised that how a NAS can be extraordinary, like the TS-453mini! The glossy TS-453mini features a stylish vertical design that takes up less desktop space, suitable for offices or even study rooms at home. It houses a quiet internal compact exhaust that helps dissipate heat, delivers less noise and reduces dust. With the tool-less design, you can easily remove the TS-453mini's magnetic top cover to add or replace hot-swappable 3.5" hard drives. Upgrading the RAM of a NAS has also never been easier with a conveniently accessible cover at the bottom.The aesthetically-designed skyline LED indicator will flash a blue light for system S3 sleep mode notification. Besides, you can adjust the brightness of all system indicators and also schedule the system to automatically dim the LEDs at certain times when needed. Special Features
Product features
|
Product Specification
Device Type | NAS server |
Host Connectivity | Gigabit Ethernet |
Total Storage Capacity | 0 GB |
Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
Width | 15.1 cm |
Depth | 20 cm |
Height | 21 cm |
Weight | 2 kg |
Built-in Devices | Led panel |
Processors Installed | 1 x Intel Celeron 2 GHz |
Number of Cores | Quad-Core |
Max Supported Qty | 1 |
RAM Installed | 8 GB (installed) / 8 GB (supported) - DDR3L |
Flash Memory Installed | 512 MB |
Type | RAID |
Interface Type | SATA 6Gb/s |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare |
Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
Network / Transport Protocol | TCP/IP, PPTP, iSCSI, SMTP, FTP, DHCP, Bonjour, SMB |
Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS, SSH |
Network Services Compatibility | Microsoft Active Directory (AD), Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) |
Features | Wake on LAN (WOL), Syslog support, E-mail alert, print server, IPv6 support, proxy server, web server, backup server, download client, iTunes server, Jumbo Frames support, DHCP server, FTP server, SMS alert, BitTorrent Client, UPnP Media Server, IPv4 support, surveillance station, DLNA Media Server, DHCP client, e-mail notification, cloud backup, VPN Server, Apple AirPlay |
Encryption Algorithm | FIPS 140-2, 256-bit AES |
Compliant Standards | DLNA CERTIFIED, UPnP |
IP Cameras Supported | 24 |
Expansion Bays | 4 (total) / 4 (free) - 2.5" / 3.5" |
Interfaces | 2 x Ethernet 1000Base-T - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 3 x USB 3.0 - Type A ¦ 1 x HDMI output - Type A |
Cables Included | 2 x network cable |
Features | Remote control, built-in cooling fan |
Power Device | X external power adapter |
Voltage Required | AC 120/230 V |
Power Provided | 90 Watt |
Storage Operating System | QNAP QTS 4.1 |
OS Required | UNIX, Linux, Microsoft Windows XP or later, Apple MacOS X or later, Microsoft Windows Server 2003 or later |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
