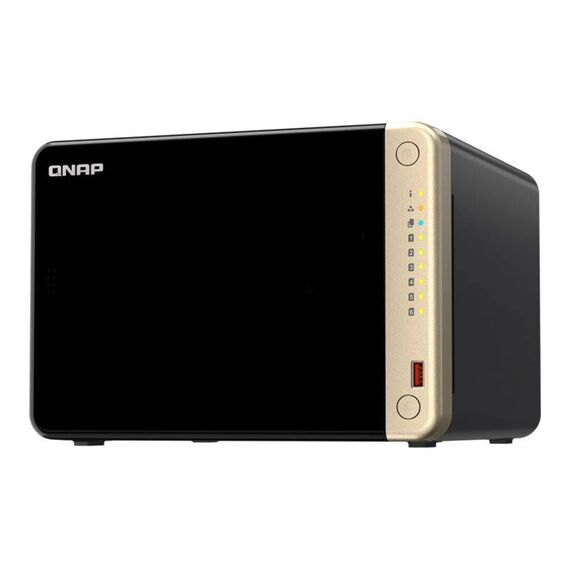

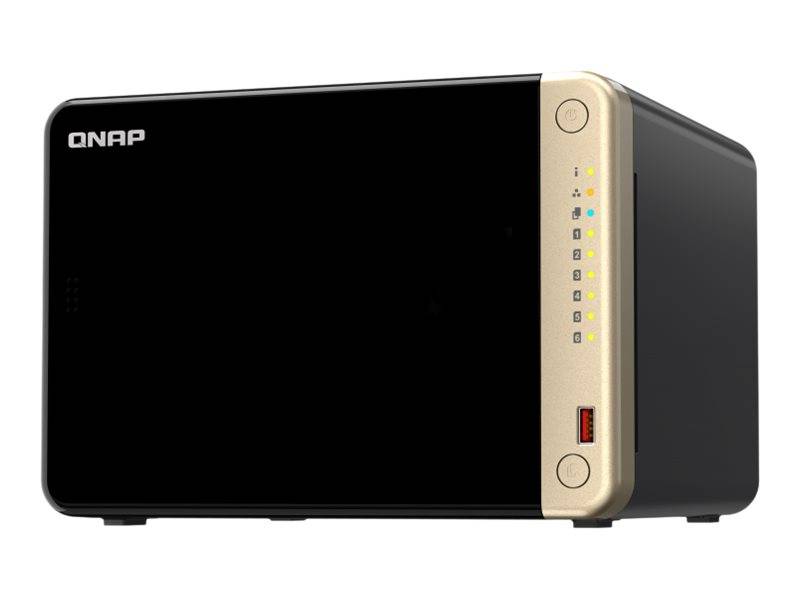

QNAP TS-664 / NAS server / 6 bays / SATA 6Gb/s / RAID 0, 1, 5, 6, 10, 50, JBOD / RAM 8 GB / 2.5 Gigabit Ethernet / iSCSI support | TS-664-8G
Please sign in so that we can notify you about a reply
Product Features
- 2.5GbE is a must
TS-664 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports. - Quad-core for multitasking
Perform additional tasks, stream more media, and have more services running with an Intel quad-core processor optimized for multitasking. - Smooth video conversion
Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices. - Upgrade to dual-port 10GbE
Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,644 MB/s transfer speed. - Faster USB transfer
Two USB 3.2 Gen 2 (10 Gbps) ports allow faster backup to/from USB devices. - More M.2 NVMe SSDs
If two M.2 slots aren't enough, install a QM2 PCIe expansion card for more M.2 SSD slots.
Special Features
- 2.5GbE is a must
- Quad-core for multitasking
- Smooth video conversion
- Upgrade to dual-port 10GbE
- Faster USB transfer
- More M.2 NVMe SSDs
Product Specification
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 6 (max) |
| Width | 23.5 cm |
| Depth | 22.6 cm |
| Height | 16.8 cm |
| Weight | 2.9 kg () |
| Built-in Devices | IR sensor |
| Processor / Memory | Processor / Memory |
| Processors Installed | 1 x Intel Celeron N5095 |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 2.9 GHz |
| RAM | 8 GB |
| Flash Memory Installed | 4 GB |
| Storage Controller | Storage Controller |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD |
| Networking | Networking |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, 2.5 GigE |
| Network / Transport Protocol | PPTP, L2TP, IPSec, iSCSI, DDNS, IPv4, IPv6, CIFS, WireGuard, QBelt, QuFTP, OpenVPN |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, RADIUS |
| Network Services Compatibility | Microsoft CIFS, FTP, Apple File Protocol (AFP), HTTP, HTTPS, SFTP, Network File System v3 (NFS v3), Network File System v4 (NFS v4) |
| Performance | Concurrent connections (CIFS): 1500 - (with maximum memory) ¦ Maximum number of storage pool: 128 ¦ Maximum number of volume: 128 ¦ Maximum volume size: 250 TB ¦ Maximum pool size: 308 TB ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Log recording: 3000 events per second ¦ Virtual hosts: 32 ¦ Maximum LUN size: 250 TB ¦ Maximum number of targets LUN: 256 |
| Features | VLAN support, wake on LAN (WOL), Jumbo Frames support, DHCP server, FTP server, Domain Controller, built-in hardware transcoding, file station, WebDAV server support, port trunking, SSD trim, Windows ODX, FXP support, hybrid backup sync, Qfiling, Qsirch, Q'center (NAS CMS), SQL Server, Network Recycle Bin, VJBOD Cloud, Qsync, QuMagie, QmailAgent, QuWAN, user quota managerment, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), Object Storage, shared folder permission, advanced folder permission, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, SSD cache acceleration support, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, multipath IO (MPIO), online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Boxafe, Windows ACL, SSD Cache RAID |
| Encryption Algorithm | SSL, TLS, TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 6 (total) / 6 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 2 (free) x M.2 2280 ¦ 1 (total) / 1 (free) x PCI Express 3.0 x2 |
| Interfaces | 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 2 x USB 3.2 Gen 2 - Type A ¦ 1 x HDMI output |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable |
| Features | Security lock slot (cable lock sold separately), built-in firewall, Secure Erase, Smart Fan, 2 x 90 mm cooling fans |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FIPS 140-2 |
| Included Accessories | 18 x flat head screws (for 2.5" HDD), 18 x flat head screws (for 3.5" HDD), power cable |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 44.02 Watt (with drives fully populated) |
| Power Consumption Stand by | 23.22 Watt |
| Power Provided | 120 Watt |
| Software / System Requirements | Software / System Requirements |
| Storage Operating System | QNAP QTS 5.0.1 |
| OS Required | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, QNAP QVR Pro, Microsoft Windows 7 / 8 / 10 / 11, Ubuntu Linux 14.4 (64-bit), QNAP QVR Elite |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - accessories - 1 year |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 4.56 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
Features - QNAP - TS-664-8G
More Details
Product Code
07:130330
EAN Code
4711103082317
Manufacturer
QNAP
