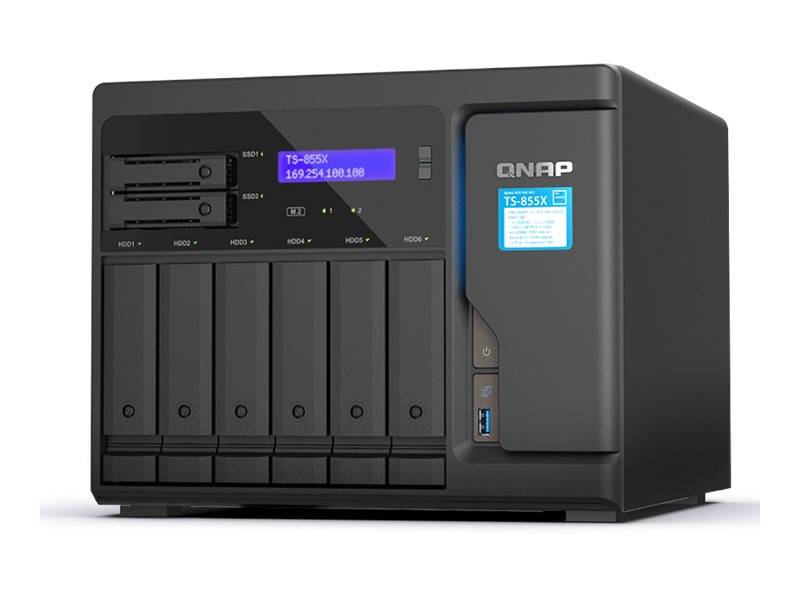

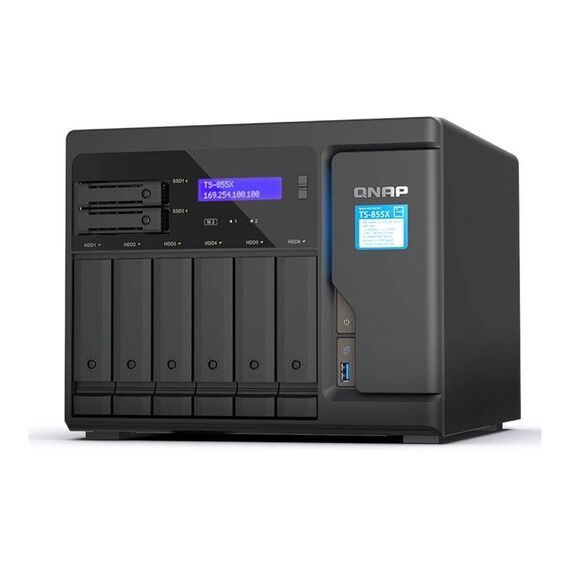

QNAP TS-855X / NAS server / 8 bays / SATA 6Gb/s / RAID 0, 1, 5, 6, 10, 50, JBOD, 60 / RAM 8 GB / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet / iSCSI support | TS-855X-8G

TS-855X-8G
2,010.66
(2,392.69 inc. VAT)
Availability: 1 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.Express DeliveryExpress delivery within 2 to 3 business days.
Find similar
Delivery
Payment options
Product CodeCI19068 EAN Code4711103084007 ManufacturerQNAP

Product Features

  • 2.5GbE/10GbE connectivity
    Dual-port 2.5GbE and single-port 10GbE connectivity. The dual 2.5GbE ports also support SMB Multichannel for up to 5 Gbps!
  • Flexible PCIe Gen3 expansion
    Features two PCIe Gen 3 slots for installing 5/10/25GbE network cards, QM2 cards or Fiber Channel cards.
  • M.2 SSD caching
    Dual M.2 PCIe NVMe slots enable SSD caching, SSD storage pools, or Qtier auto-tiered storage.
  • Virtual machines and containers
    Host virtual machines and containerized apps on one device to optimize resource utilization and IT budgeting. Supports SR-IOV.
  • All-inclusive data backup and restoration
    A reliable backup center for your PC/Macs, virtual machines, containers, cloud data, and SaaS data.
  • Ultimate 8-core performance with up to 128 GB RAM and Intel QuickAssist technology
    The TS-855X delivers exceptional 8-core performance for running multiple concurrent tasks. AES-NI encryption and Intel QuickAssist technology (QAT) are supported to offload resource-demanding compression and improving IPsec/SSL cryptography performance.
  • Direct 2.5GbE connectivity for up to ten PC/workstations
    Your team needs a high-speed environment and productivity boost, and the TS-855X delivers with two 2.5GbE ports. By installing two 4-port PCIe network cards, the TS-855X can directly connect to up to ten PC/workstations - no switch required - for faster large file transfer/backup, video editing, and much more.
  • Multi-version snapshots mitigate ransomware threats
    The TS-855X supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
  • Reliable, high-performance storage for virtualization
    The TS-855X supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.
  • All-in-one solution for hosting virtual machines and containers
    By running multiple virtual machines and containers on the TS-855X, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
  • Comprehensive security and privilege settings
    The TS-855X is loaded with flexible privilege settings and security measures. Besides IP blocking, QNAP Authenticator, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

Special Features

  • 2.5GbE/10GbE connectivity
  • Flexible PCIe Gen3 expansion
  • M.2 SSD caching
  • Virtual machines and containers
  • All-inclusive data backup and restoration
  • Ultimate 8-core performance with up to 128 GB RAM and Intel QuickAssist technology
  • Build a high-speed 10GbE/2.5GbE network environment
  • Direct 2.5GbE connectivity for up to ten PC/workstations
  • Multi-version snapshots mitigate ransomware threats
  • Reliable, high-performance storage for virtualization
  • All-in-one solution for hosting virtual machines and containers
  • Comprehensive security and privilege settings

Product Specification

Device Type NAS server
Host Connectivity 2.5 Gigabit Ethernet / 10 Gigabit Ethernet
Total Storage Capacity 0 GB
Installed Devices / Modules Qty 0 (installed) / 8 (max)
Width 29.29 cm
Depth 31.98 cm
Height 23.19 cm
Weight 8.5 kg ()
Built-in Devices Led panel
Processor / Memory Processor / Memory
Processors Installed 1 x Intel Atom C5125 2.8 GHz
Number of Cores 8-core
Max Supported Qty 1
RAM 8 GB (installed) / 128 GB (supported) - DDR4
Features Supported ECC modules operate in non-ECC mode
Flash Memory Installed 5 GB
Storage Controller Storage Controller
Type RAID
Interface Type SATA 6Gb/s
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Networking Networking
Data Link Protocol 10Mb LAN, 100Mb LAN, GigE, 10 GigE, 2.5 GigE
Network / Transport Protocol PPTP, L2TP, IPSec, WireGuard, QBelt, OpenVPN
Remote Management Protocol SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH
Network Services Compatibility Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Network File System v3 (NFS v3), Network File System v4 (NFS v4)
Performance Concurrent connections (CIFS): 2500 - (with maximum memory) ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Maximum pool size: 308 TB ¦ Maximum number of storage pool: 128 ¦ Maximum LUN size: 250 TB ¦ Maximum number of targets LUN: 128 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Domain user/group account: 200000 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ System log & notification centre: 3000 events per second ¦ Virtual hosts: 32 ¦ Maximum number of version control: 64
Features Wake on LAN (WOL), RADIUS support, DHCP server, FTP server, Domain Controller, Single Root I/O Virtualization (SR-IOV), file station, port trunking, SSD trim, Windows ODX, hybrid backup sync, Qfiling, Qsirch, SQL Server, McAfee protection, VJBOD Cloud, Qsync, QuMagie, Smart Fan, QmailAgent, QuWAN, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, External Device Management, Mount Smart Phone (MTP), Object Storage, shared folder permission, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, DA Driver Analyzer, floating point unit, fibre channel service, block-based iSCSI LUN, LUN snapshot, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Boxafe, Windows ACL, schedule on/off, Secure Erase, QVPN Service, End-to-End Data Integrity, External RAID Device Management, user quota, DDNS (Dynamic Domain Name Service), Encryption Engine
Encryption Algorithm 256-bit AES, AES-NI
Expansion / Connectivity Expansion / Connectivity
Expansion Bays 6 (total) / 6 (free) x hot-swap - 3.5" ¦ 2 (total) / 2 (free) x hot-swap - 2.5"
Expansion Slots 2 (total) / 2 (free) x PCI Express 3.0 x4 ¦ 2 (total) / 2 (free) x M.2 2280
Interfaces 3 x USB 3.2 Gen 1 ¦ 1 x USB 2.0 ¦ 1 x Ethernet 10Gb ¦ 2 x 2.5 Gigabit Ethernet
Miscellaneous Miscellaneous
Cables Included 2 x network cable
Features Security lock slot (cable lock sold separately), built-in 3 cooling fans, auto-copy function, reset button, dual boot, alarm buzzer
Security Slot Type Kensington security slot
Compliant Standards FIPS 140-2, TLS v1.2, TLS v1.0, TLS v1.1, TLS v1.3
Included Accessories 2 x M.2 SSD heatsink, 24 x flat head screws (for 2.5" HDD), 32 x flat head screws (for 3.5" HDD), power cable
Power Power
Power Device Internal power supply
Voltage Required AC 100-240 V
Power Consumption Operational 75.79 Watt (with drives fully populated)
Power Provided 250 Watt
Software / System Requirements Software / System Requirements
OS Required Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows Server 2022, Microsoft Windows 7 / 8 / 10 / 11, Apple macOS 10.10 or later
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 3 years
Dimensions & Weight (Shipping) Dimensions & Weight (Shipping)
Shipping Weight 10.11 kg
Environmental Parameters Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 - 95% RH (non-condensing)
