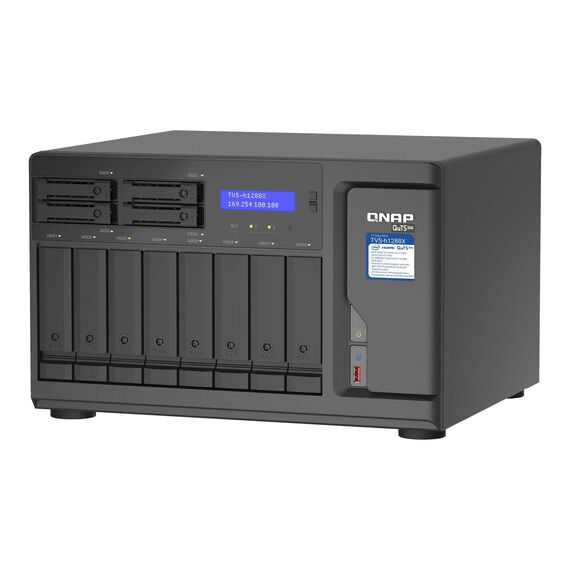

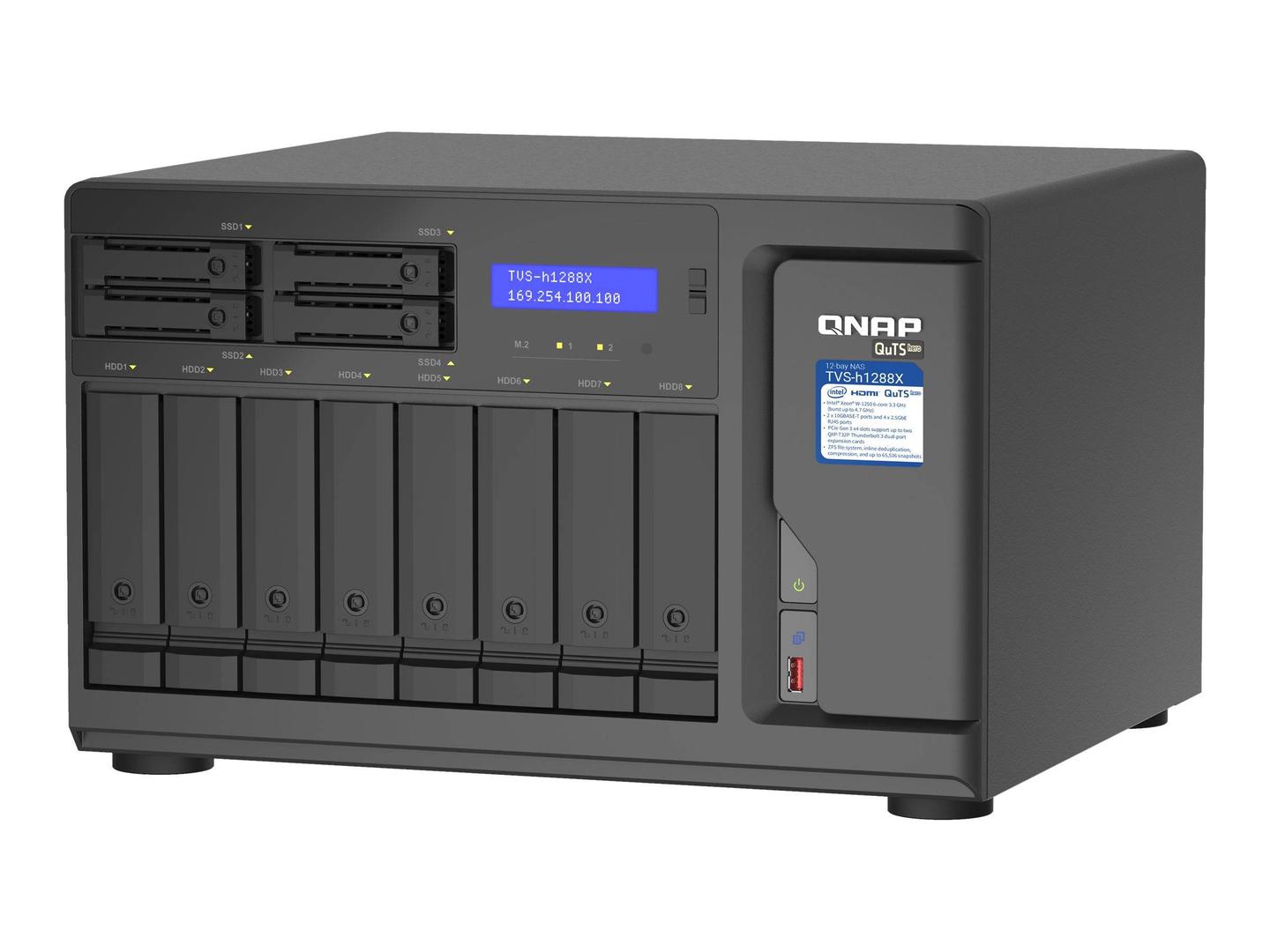

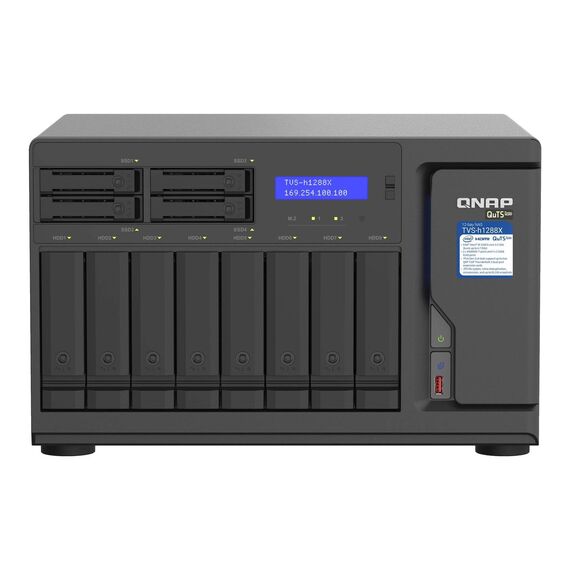

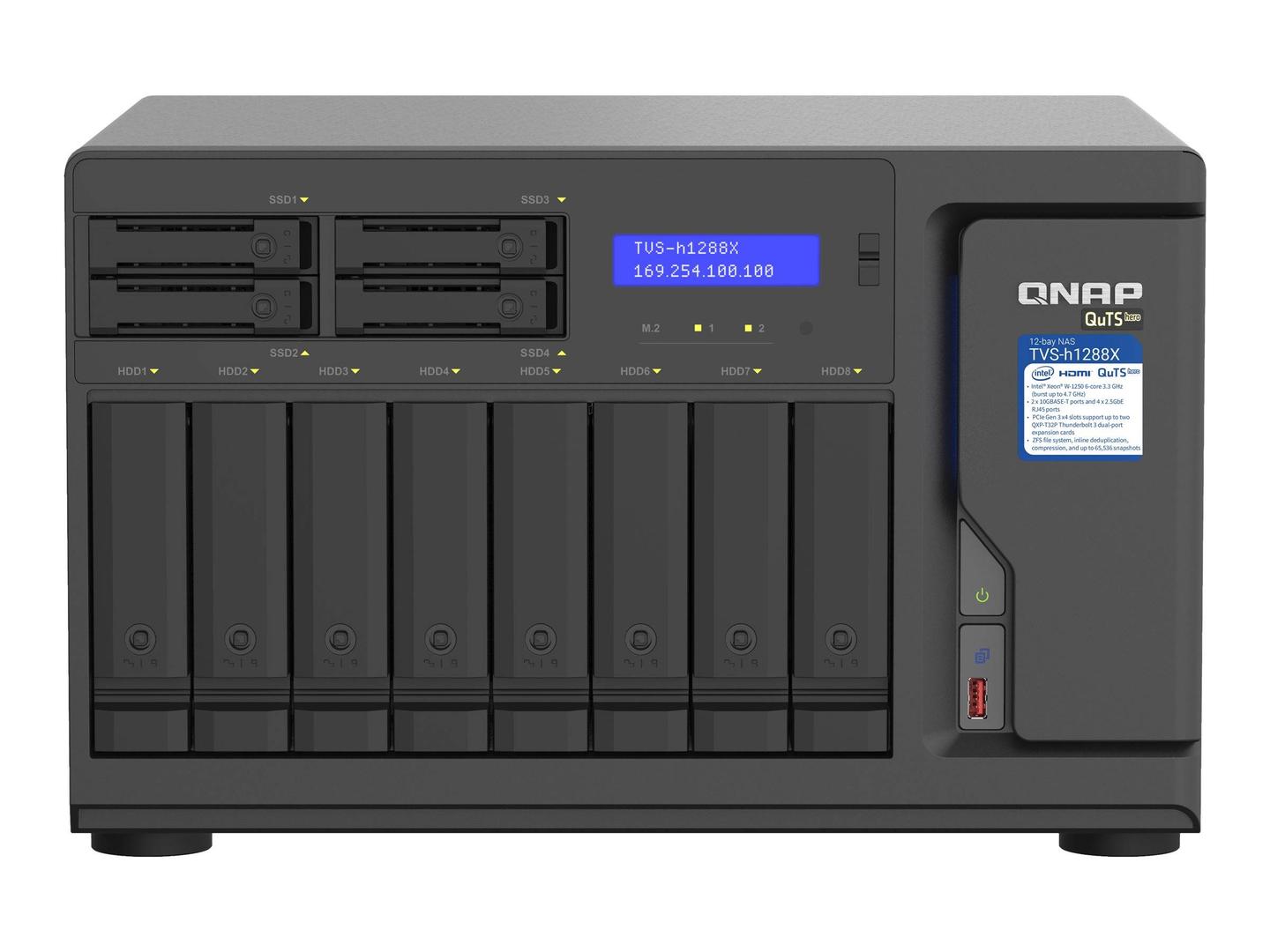

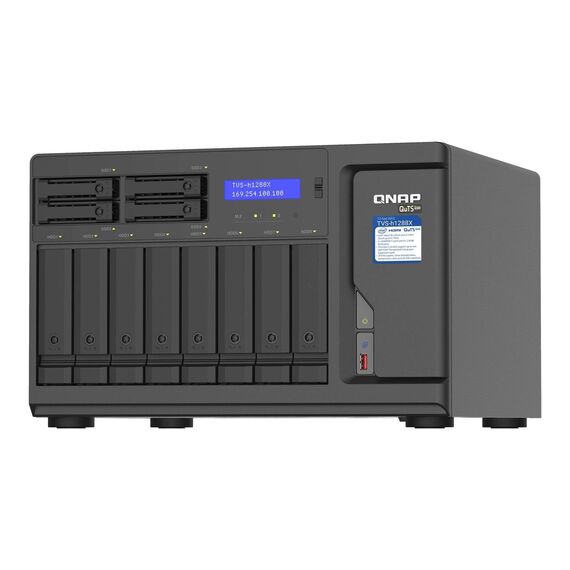

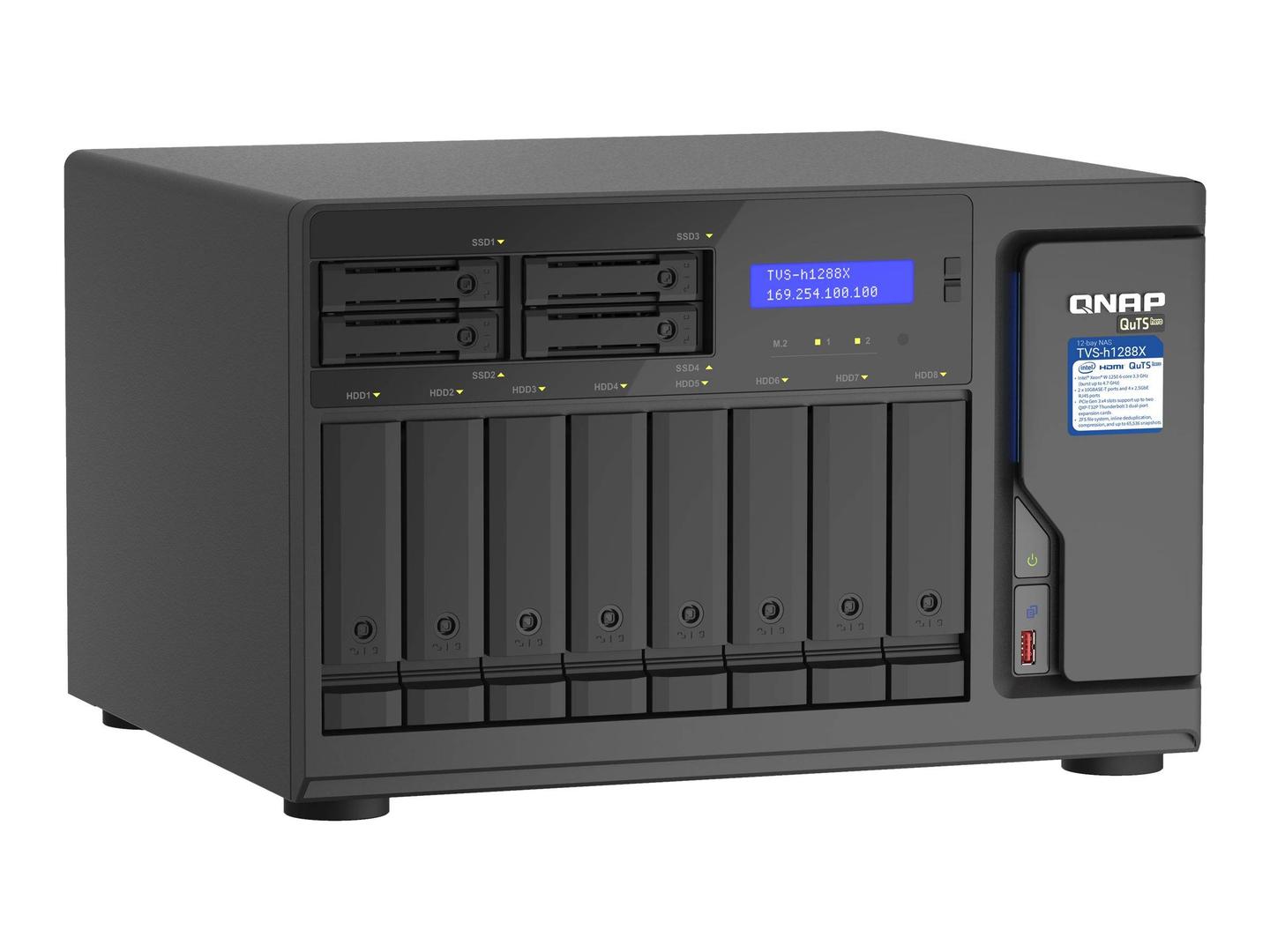

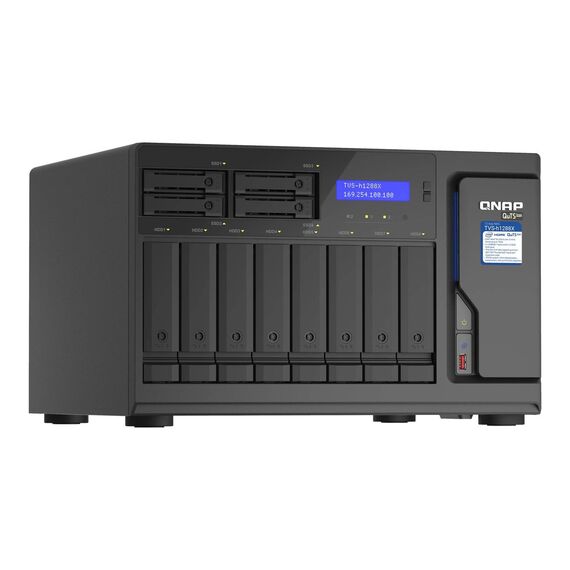

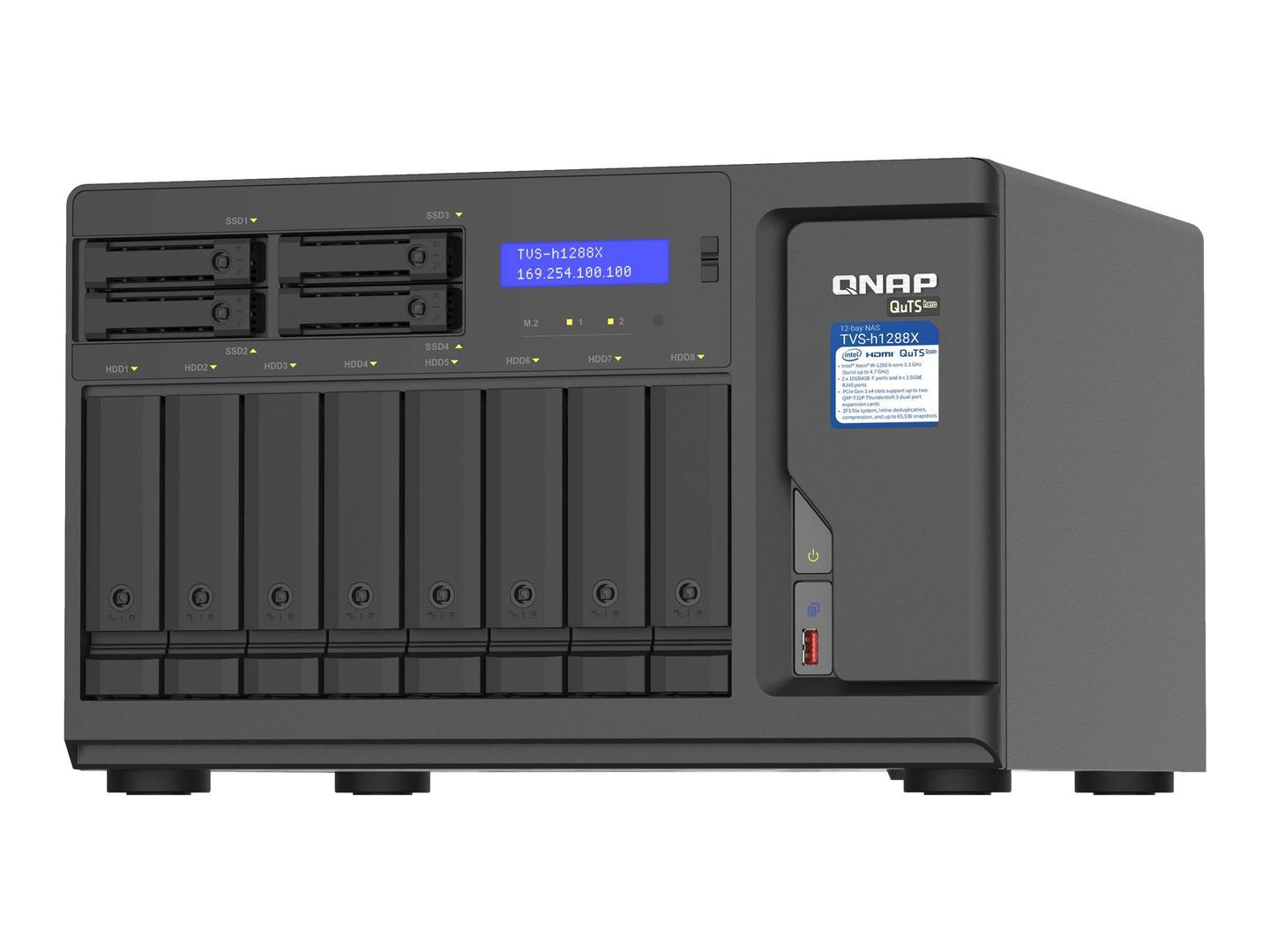

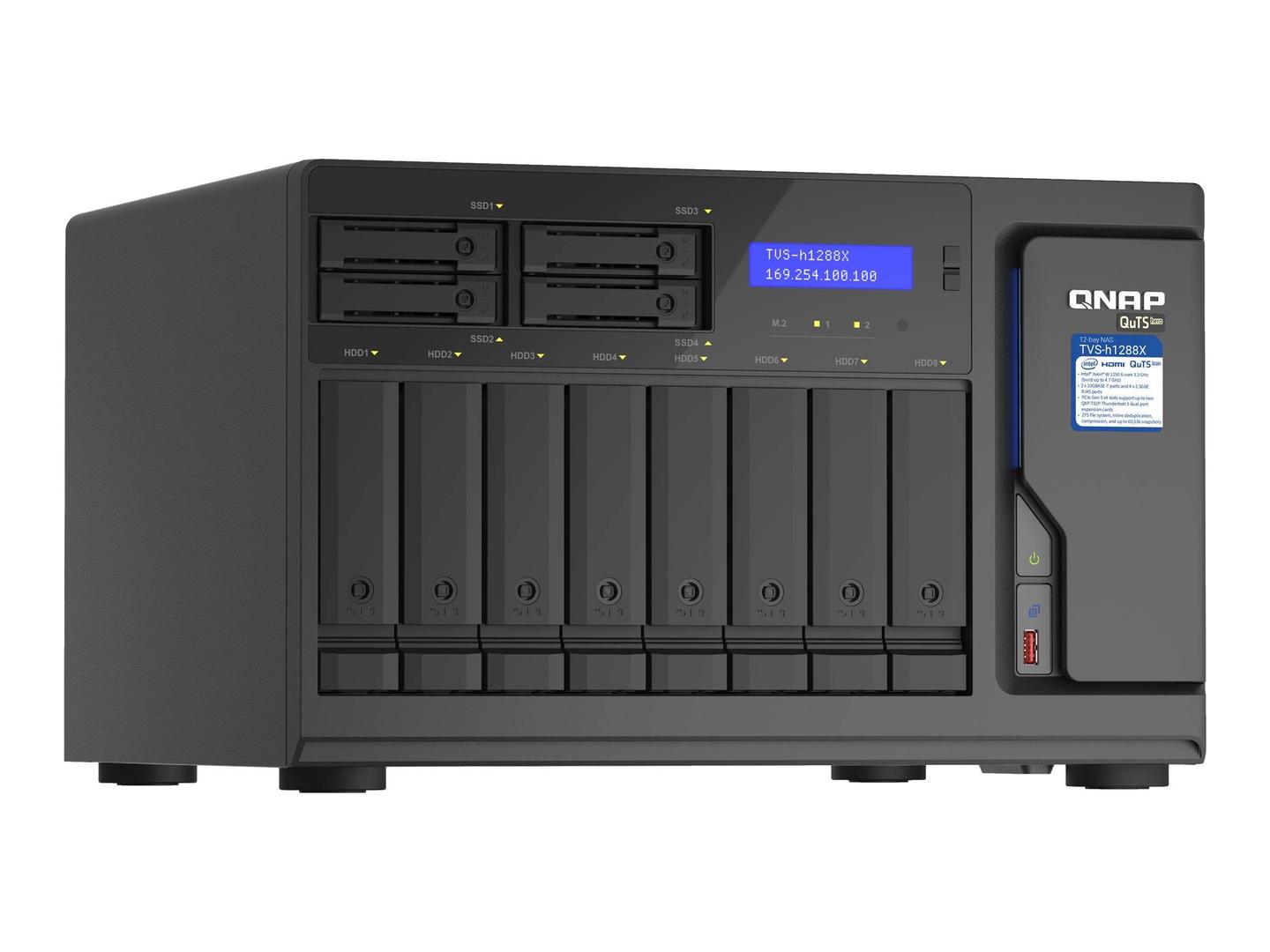

QNAP TVS-h1288X / NAS server / 12 bays / SATA 6Gb/s / RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 5 hot spare, 6 hot spare, 60, 10 hot spare, RAID TP / RAM 16 GB / Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet / iSCSI suppo | TVS-H1288X-W1250-16G

Product Features

• Six cores up to 4.7 GHz with up to 128 GB DDR4 ECC memory
  Intel Xeon W processors are designed for a wide range of creative professionals. Powered by an Intel Xeon W-1250 6 cores/12 threads 3.3GHz processor (Burst up to 4.7 GHz), the TVS-h1288X has enormous processing power to drive virtual machine performance. The integrated Intel AES-NI encryption engine boosts encryption performance while also maintaining the security of NAS data. With dual-channel modules and four Long-DIMM slots, the TVS-h1288X's DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads.
• Thunderbolt 3 + 10Gb Ethernet: perfect for studios and post-production houses
  The TVS-h1288X can simultaneously run general Ethernet services with the built-in 10GBASE-T LAN card in addition to the Thunderbolt 3 network, completely independently and with no bandwidth interference. The media resources in the TVS-h1288X can be easily accessed by Thunderbolt and Ethernet workstations for different concurrent tasks with increased productivity.
• Dual 10GbE connectivity optimizes high-speed data transfer and supports RDMA/RoCE
  The TVS-h1288X comes with a pre-installed dual-port 10GBASE-T network card (supports 10GbE/1GbE), supporting failover and up to 20Gb/s bandwidth under Port Trunking, to improve bandwidth-demanding data center and virtualization applications. The 10GbE SmartNIC uses a Broadcom NetXtreme E-Series BCM57416 network controller that supports RDMA over Converged Ethernet (RoCE and RoCEv2), allowing data to bypass general network drivers, the socket layer, and directly enter the ESXi server and storage memory buffer. RoCE technology can improve NAS performance while lowering the CPU usage of applications that use Ethernet networks, ideal for low-latency and high-speed large data transfers.
• Set SSD caching to boost IOPS with M.2 NVMe SSD
  The TVS-h1288X comes with four 2.5-inch SATA 6Gb/s drive bays for SSDs and two M.2 NVMe Gen 3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance, reduce storage volume latency, and optimize 2.5GbE/10GbE performance. This is especially perfect for databases and virtual machine applications. With dedicated SSD bays/slots, the TVS-h1288X allows you to dedicate all of the 3.5-inch drive bays for high-capacity hard drives, ensuring both maximized storage capacity and performance.

Special Features

• Two 10GBASE-T and four 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer
• PCIe slots allow for installing 5/10/25/40GbE adapters, QM2 cards, or graphics cards to increase application performance
• 4K media playback and real-time transcoding; directly output videos to an HDMI display (up to 4K @30Hz)
• Supports virtual machines and containerized apps, centralized storage, backup, sharing, disaster recovery, and storage expansion
• Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud
