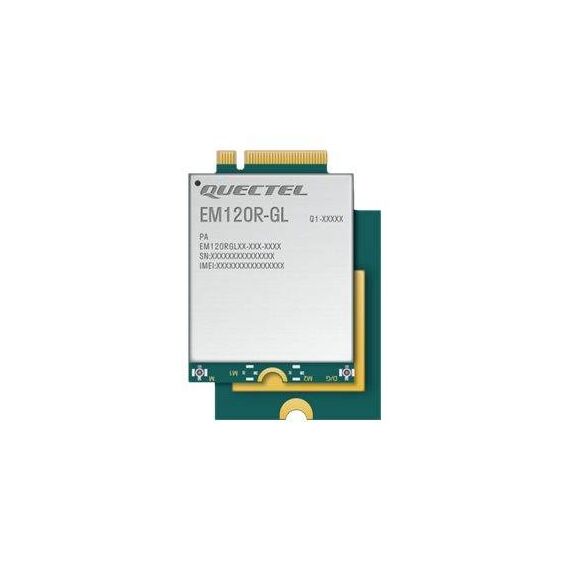

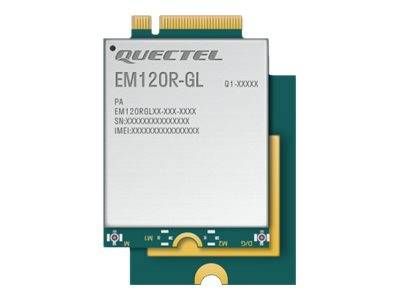

Quectel EM120R-GL / Wireless cellular modem / 4G LTE Advanced / M.2 Card / 600 Mbps / for (WWAN-ready): ThinkPad L14 Gen 2 20X1, 20X2, 20X5, 20X6; L15 Gen 2 20X3, 20X4, 20X7; P14s Gen 2 20VX, 20VY, 21A0; P15s Gen 2 20W6, 20W7; T14 Gen 2 20W0 | 4XC1D51447
Please sign in so that we can notify you about a reply
Special Features
- Supports DFOTA
- Supports DTMF
- Supports MIMO
- USB 2.0 high-speed interface
- Multi-constellation GNSS receiver
Product Specification
| Device Type | Wireless cellular modem |
| Form Factor | Internal |
| Modem | Modem |
| Bus | M.2 Card |
| Connectivity Technology | Wireless |
| Max Transfer Rate | 600 Mbps |
| Mobile Band | W-CDMA B1/B2/B5/B8 / LTE B1/B12/B13/B14/B17/B18/B19/B2/B20/B25/B26/B28/B29/B3/B30/B32/B38/B39/B4/B40/B41/B42/B43/B46/B48/B5/B66/B7/B8 |
| Mobile Communication Protocol | UMTS, WCDMA, HSPA+, DC-HSDPA, LTE Advanced, FDD LTE, TDD LTE |
| Features | Dual SIM Single Standby, 1.8/3.0V (U)SIM card support |
| Miscellaneous | Miscellaneous |
| SIM Card Supported | Dual SIM (eSIM+nano-SIM) |
| Compliant Standards | WHQL, JATE, CCC, IC, FCC, ANATEL, TELEC, PTCRB, GCF, KC, SRRC, NCC, RCM, ICASA, NAL, IFETEL |
| Dimensions & Weight | Dimensions & Weight |
| Width | 4.2 cm |
| Depth | 3 cm |
| Height | 0.23 cm |
| Weight | 6.8 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 75 °C |
| Compatibility Information | Compatibility Information |
| Designed For | (WWAN-ready): ¦ Lenovo ThinkPad L14 Gen 2 20X1, 20X2, 20X5, 20X6 ¦ Lenovo ThinkPad L15 Gen 2 20X3, 20X4, 20X7 ¦ Lenovo ThinkPad P14s Gen 2 20VX, 20VY, 21A0 ¦ Lenovo ThinkPad P15s Gen 2 20W6, 20W7 ¦ Lenovo ThinkPad T14 Gen 2 20W0, 20W1, 20XL ¦ Lenovo ThinkPad T14s Gen 2 20WM, 20WN ¦ Lenovo ThinkPad T15 Gen 2 20W4, 20W5 ¦ Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0 ¦ Lenovo ThinkPad X13 Gen 2 20WK, 20WL ¦ Lenovo ThinkPad X13 Yoga Gen 2 20W8, 20W9 |
Features - Lenovo - 4XC1D51447
More Details
Product Code
04:379819
EAN Code
0195892020929
Manufacturer
Lenovo
