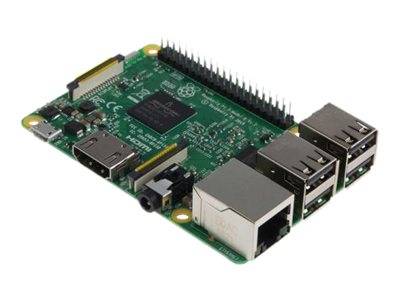

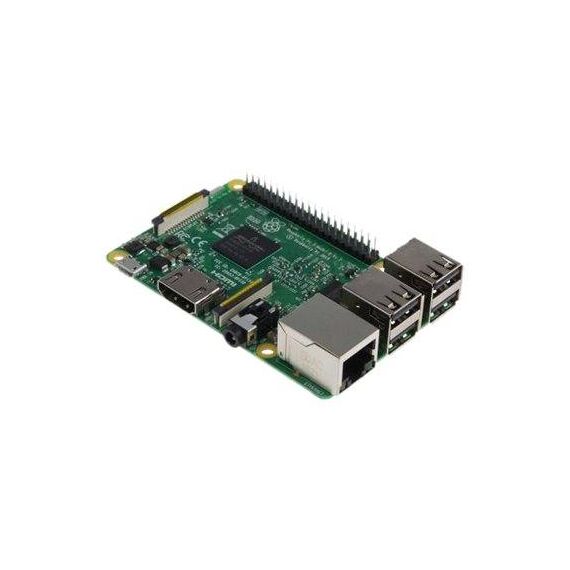

Raspberry Pi 3 Model B / Single-board computer / Broadcom BCM2837 / 1.2 GHz / RAM 1 GB / 802.11b/g/n, Bluetooth 4.1 | RASPBERRY-PI-3B S
RASPBERRY-PI-3B S
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- BCM43438 wireless LAN and Bluetooth Low Energy (BLE) on board
- 40-pin extended GPIO
- 4 USB 2 ports
- 4 Pole stereo output and composite video port
- Full size HDMI
- CSI camera port for connecting a Raspberry Pi camera
- DSI display port for connecting a Raspberry Pi touchscreen display
- Micro SD port for loading your operating system and storing data
- Upgraded switched Micro USB power source up to 2.5 A
Product Specification
| Product Type | Single-board computer |
| Processor | Processor |
| Type | Broadcom |
| Processor Number | BCM2837 |
| Clock Speed | 1.2 GHz |
| Number of Cores | Quad-Core |
| 64-bit Architecture | Yes |
| RAM | RAM |
| Technology | LPDDR2 SDRAM |
| Installed Size | 1 GB |
| Flash Memory | Flash Memory |
| Supported Flash Memory Cards | microSDHC, microSD |
| Graphics System | Graphics System |
| Graphics Accelerator | VideoCore IV |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.1 |
| Wireless Protocol | 802.11b/g/n, Bluetooth 4.1 |
| Wired Protocol | 10/100 Ethernet |
| Interface Provided | Interface Provided |
| Interface Provided | LAN - RJ-45 ¦ CSI - ZIF ¦ 4 x USB 2.0 - Type A ¦ GPIO - 40 pin IDC ¦ DSI - ZIF ¦ Composite video/audio line-out - 4-pole mini-jack ¦ HDMI output - Type A |
| Power Device | Power Device |
| Power Source | AC power adapter |
| Miscellaneous | Miscellaneous |
| Width | 8.5 cm |
| Depth | 5.6 cm |
| Height | 1.7 cm |
Features - Raspberry - RASPBERRY-PI-3B S
More Details
Product Code
CE30503
EAN Code
5060214370028
Manufacturer
Raspberry
