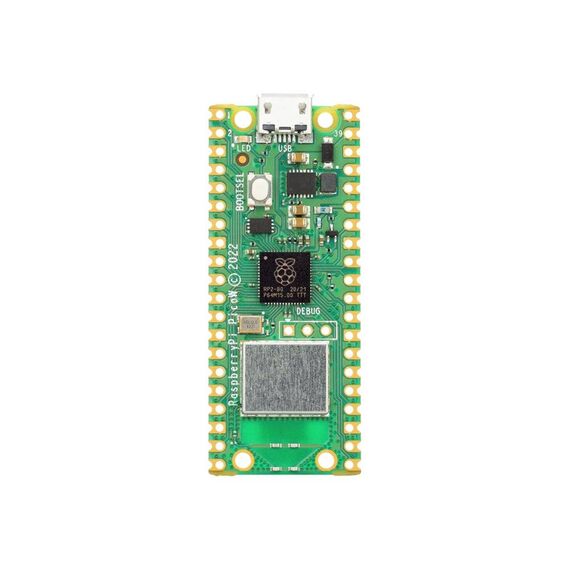

Raspberry Pi Pico W / Development board / Raspberry Pi RP2040 / 133 MHz / RAM 264 KB / Flash 2 MB / 802.11n | RASPBERRY-PI-PICO-W
RASPBERRY-PI-PICO-W
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Development board |
| Features | Temperature |
| Parameters | 26 multifunction GPIO pins, 3 analogue inputs, 2 x UART, 2 x SPI controllers, 2 x I2C controllers, 16 PWM channels, USB 1.1 controller and PHY, with host/device support, 8 x Programmable I/O (PIO) state machines, -20°C to 85°C operating temperature, castellated module allows soldering direct to carrier boards |
| Supported Software | C, MicroPython |
| Processor | Processor |
| Type | Raspberry Pi |
| Processor Number | RP2040 |
| Clock Speed | 133 MHz |
| Number of Cores | Dual-Core |
| RAM | RAM |
| Installed Size | 264 KB |
| Flash Memory | Flash Memory |
| Installed Size | 2 MB |
| Networking | Networking |
| Data Link Protocol | IEEE 802.11n |
| Wireless Protocol | 802.11n |
| Interface Provided | Interface Provided |
| Interface Provided | USB - micro-USB ¦ GPIO |
| Power Device | Power Device |
| Power Source | GPIO, USB port |
| Miscellaneous | Miscellaneous |
| Width | 5.1 cm |
| Depth | 2.1 cm |
Features - Raspberry - RASPBERRY-PI-PICO-W
More Details
Product Code
CF40121
EAN Code
5056561803173
Manufacturer
Raspberry
