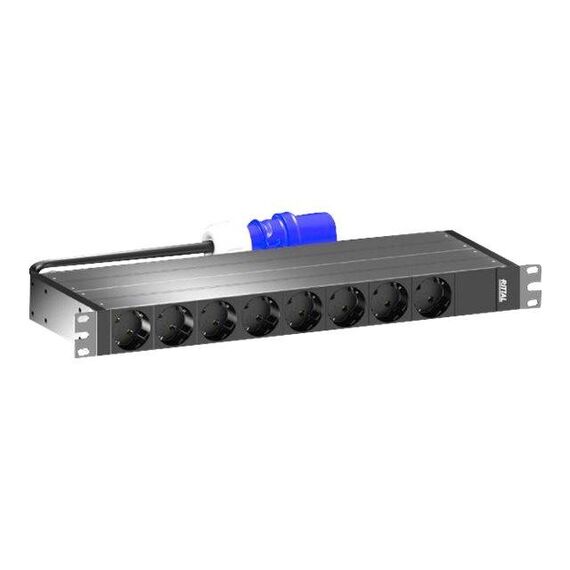

Rittal PDU Basic / Power distribution unit (rack-mountable) / AC 230 V / 3.7 kW / 3-phase / output connectors: 8 (8 x CEE 7/3) / 3 m cord / for TS IT; VX IT | 7979103
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 3 m |
| Power Device | Power Device |
| Input Voltage | AC 230 V |
| Input Wiring | 3-phase |
| Input Connectors | 1 |
| Power Output Connectors Details | 8 x power CEE 7/3 |
| Max Electric Current | 16 A |
| Power Capacity | 3.7 kW |
| Circuit Protection | Circuit breaker |
| Miscellaneous | Miscellaneous |
| Cables Included | Power cable 3 m |
| Features | Horizontal orientation |
| Compliant Standards | IP20, EN 61000-3, EMC 2014/30/EU, LVD 2014/35/EU, EN 62368-1, EN 62053-21, EN 61000-4, EN 61000-6 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 45 cm |
| Depth | 7 cm |
| Height | 4.4 cm |
| Compatibility Information | Compatibility Information |
| Designed For | Rittal TS IT ¦ Rittal VX IT |
Features - Rittal - 7979103
More Details
Product Code
04:354828
EAN Code
4008224644143
Manufacturer
Rittal
