Home/Hard drives/Solid State Drives (SSD)/Samsung 980 PRO MZ-V8P2T0BW / SSD / encrypted / 2 TB / internal / M.2 2280 / PCIe 4.0 x4 (NVMe) / buffer: 2 GB / 256-bit AES / TCG Opal Encryption / for Intel Next Unit of Computing 13 | MZ-V8P2T0BW

Samsung 980 PRO MZ-V8P2T0BW / SSD / encrypted / 2 TB / internal / M.2 2280 / PCIe 4.0 x4 (NVMe) / buffer: 2 GB / 256-bit AES / TCG Opal Encryption / for Intel Next Unit of Computing 13 | MZ-V8P2T0BW

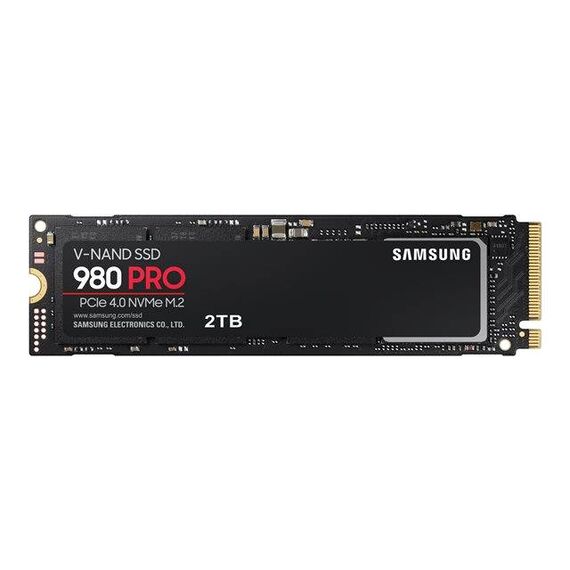

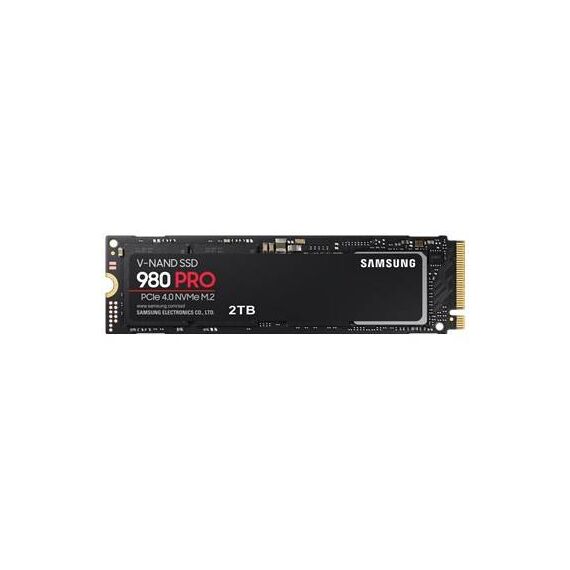

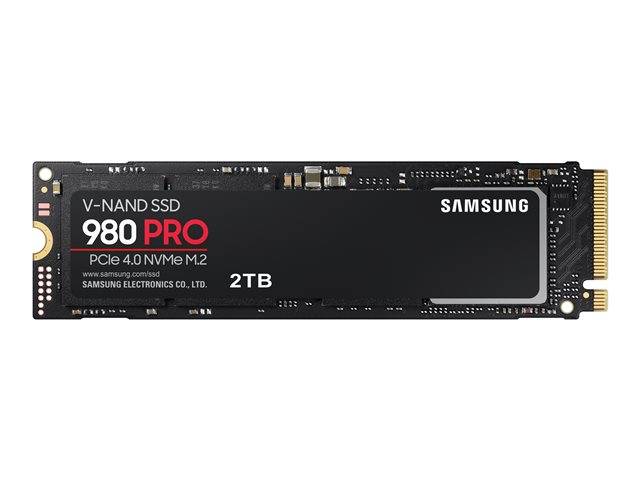

Samsung 980 PRO 2TB M.2 2280 Solid state drive MZ-V8P2T0BW

Description
Features
Reviews

Product Features

Maximum speed
Powered by Samsung custom Elpis Controller for PCIe 4.0 SSD, the 980 PRO is optimized for speed. It delivers read speeds up to 7,000 MB/s, making it 2 times faster than PCIe 3.0 SSDs and 12.7 times faster than SATA SSDs. The 980 PRO achieves max speeds on PCIe 4.0 and may vary in other environments.
A winning combination
Designed with hardcore gamers and tech-savvy users in mind, the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics, and more. It's fast at loading games so you can play more and wait less.
Efficient M.2 SSD
The 980 PRO comes in a compact M.2 2280 form factor, which can be easily plugged into desktops and laptops for maximum board design flexibility. The drive is suitable for building high-performance computing systems due to its optimized power efficiency.
Reliable thermal control
High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 PRO uses nickel coating to help manage the controller's heat level and a heat spreader label to deliver effective thermal control of the NAND chip.
Smart thermal solution
Embedded with Samsung's cutting-edge thermal control algorithm, the 980 PRO manages heat on its own to deliver durable and reliable performance. To minimize performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980 PRO's temperature at optimal levels.
Samsung Magician software
Unlock the full power of the 980 PRO with Samsung Magician's intuitive yet advanced optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you're always getting the best performance out of your SSD.

Special Features

Efficient M.2 SSD
Reliable thermal control
Smart thermal solution
Samsung Magician software

Product Specification

Device Type	Solid state drive - internal
Capacity	2 TB
Hardware Encryption	Yes
Encryption Algorithm	256-bit AES
Form Factor	M.2 2280
Interface	PCIe 4.0 x4 (NVMe)
Buffer Size	2 GB
Features	TRIM support, sleep mode, Auto Garbage Collection Algorithm, TurboWrite Technology, Low Power DDR4 SDRAM Cache, NVM Express (NVMe) 1.3c, Samsung V-NAND 3bit MLC Technology, Samsung Elpis Controller, S.M.A.R.T.
Width	22.15 mm
Depth	80.15 mm
Height	2.38 mm
Weight	9 g
Performance	Performance
SSD Endurance	1200 TB
Internal Data Rate	7000 MBps (read) / 5100 MBps (write)
4KB Random Read	22000 IOPS
4KB Random Write	60000 IOPS
Maximum 4KB Random Write	1000000 IOPS
Maximum 4KB Random Read	1000000 IOPS
Reliability	Reliability
MTBF	1,500,000 hours
Expansion & Connectivity	Expansion & Connectivity
Interfaces	PCI Express 4.0 x4 (NVMe) - M.2 Card
Compatible Bay	M.2 2280
Power	Power
Power Consumption	6.1 Watt (average) Â¦ 7.2 Watt (maximum) Â¦ 35 mW (idle)
Software & System Requirements	Software & System Requirements
Software Included	Samsung Magician Software
Miscellaneous	Miscellaneous
Compliant Standards	IEEE 1667
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 5 years
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 Â°C
Max Operating Temperature	70 Â°C
Shock Tolerance (operating)	1500 g @ 0.5 ms
Compatibility Information	Compatibility Information
Designed For	Intel Next Unit of Computing 13 Extreme Kit - NUC13RNGi5, 13 Extreme Kit - NUC13RNGi7, 13 Extreme Kit - NUC13RNGi9
