Samsung DB22D-T Touch 22" Class ( 21.5" viewable ) LED display digital signage 1080p (Full HD)

LH22DBDPTGC/EN
577.46
641.62
(687.18 inc. VAT) You save: 64.16
Out of stock
Sales 10%
Find similar
Delivery
Payment options
Product Code03:613037 EAN Code8806086419871 ManufacturerSamsung Screen Size22"

Samsung DB22D-T Touch 22" Class ( 21.5" viewable ) LED display digital signage 1080p (Full HD) | LH22DBDPTGC/EN

Description

Samsung's DB22D-T offers touchscreen interactivity along with a fully embedded solution to manage digital signage content without connecting external devices. An enhanced Samsung SMART Signage Platform (SSP) features a quad core processor, combined with media player functionality via System-on-Chip (SoC), and MagicInfo software. The 22" form factor fits small placements, while Full HD resolution delivers sharp, stunning images.

Special Features

  • All-in-One solution thanks to SSP with a quad core processor and MagicInfo software
  • Touchscreen interactivity and a 22" form factor for small, close placements
  • Slim 2.3" chassis depth with slim-direct LED backlight technology

Product features

  • Touchscreen interactivity
    With an interactive touchscreen, the DB22D-T can enhance the customer experience in various retail and hospitality settings. The hands-on approach helps your customers engage with your business in new ways, which can lead to tangible results.
  • Enhanced SSP with quad core processor
    Experience enhanced SoC performance with a quad core processor. SSP is an integrated, open platform providing a powerful streamlined solution to reduce TCO in digital signage deployments through savings in hardware installation and operating costs.
  • All-in-One solution
    The DB22D features SSP enabled with media player functionality via SoC, built-in processing, built-in power control and MagicInfo content management software for an all-in-one digital signage solution that allows users to effectively and efficiently coordinate their signage.
  • Sleek industrial design
    Slim-direct LED backlight technology delivers a sleek industrial design with a 2.3" chassis depth that is combined with a 22" form factor for an elegant look in small placements. LED also slims your TCO thanks to up to 50% energy savings over CCFL.
  • Connectivity and control

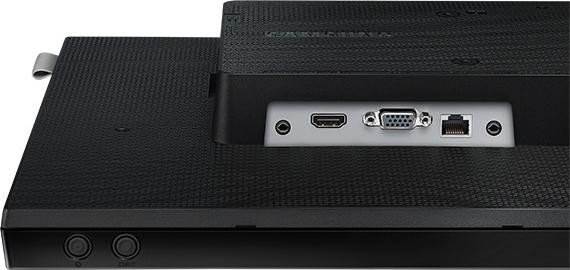

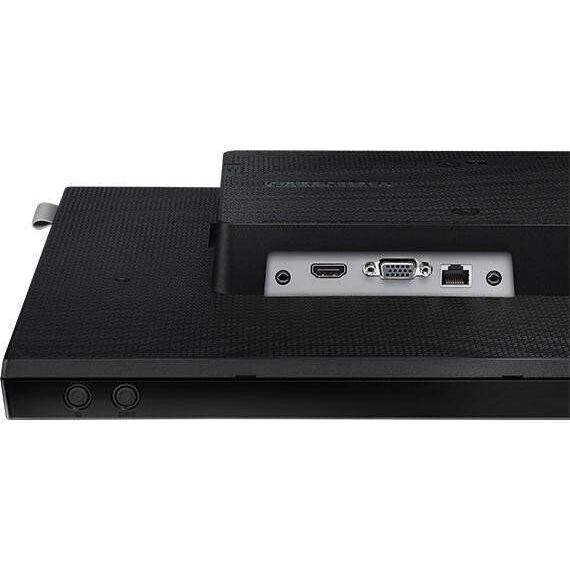

    Discover versatile connectivity options to display a range of exceptional content that speaks to your audience. Connections include D-sub, USB, HDMI and WiFi embedded and external control capability via RS232C. Built-in Wi-Fi allows you to eliminate LAN cables for simpler installation.
  • Adapts to your business
    Small shops, shopping malls and large chain stores can utilize the DB22D as a shelf-level or endcap solution. Enterprises can share agenda or meeting room information outside of conference rooms. In public spaces, advertising or floor level information can be displayed on the inside of an elevator.

Product Specification

Product Type LED-backlit LCD flat panel display
Energy Class Class B
Power Consumption Operational 44 Watt
Power Consumption (On mode) 31 W
Energy Consumption per Year 45 kWh
Diagonal Class 22"
Diagonal Size 21.5 in
Commercial Use Yes - digital signage
TV Tuner No tuner
Video Interface HDMI
HDMI Ports Qty 1 ports
PC Interface VGA (HD-15)
HDCP Compatible Yes
Dimensions Without stand
Width 50.75 cm
Depth 5.93 cm
Height 31.12 cm
Weight 4.4 kg
Resolution 1920 x 1080
Display Format 1080p (Full HD)
LCD Backlight Technology LED backlight
Colour Depth 16.7 million colours
Image Contrast Ratio 1000:1
Dynamic Contrast Ratio 50000:1
Brightness 220 cd/m2
Viewing Angle 178 degrees
Viewing Angle (Vertical) 178 degrees
Pixel Pitch 0.2482 x 0.2482mm
Response Time 14 ms
Commercial Features Button lock, SMART Signage Platform, Image Rotation, Magic Clone, Auto Source Switching & Recovery
Features Pivot, temperature sensor, Multiple Display Control (MDC), picture by picture (no tuner), picture in picture (no tuner), portrait mode, upgradeable firmware, landscape mode, smart phone remote support, Smart Scheduling, Quad-Core processor, e-LED BLU, 10 touchpoints, MagicInfo Player-S2, Wi-Fi Ready, Certified for 16/7 Continuous Operation
Flat Panel Mount Interface 100 x 100 mm
USB Port Yes
Type Remote control
Speaker System 2 speakers
Output Power / Total 2 Watt
Speakers 2 x main channel speaker - built-in - 1 Watt
Connector Type 1 x HDMI input ( 19 pin HDMI Type A ) ¦ 1 x VGA input ( 15 PIN HD D-Sub (HD-15) ) ¦ 1 x audio line-in ( mini-phone stereo 3.5 mm ) ¦ 1 x Multiple Display Control ( RJ-45 ) ¦ 1 x USB 2.0
Included Accessories Batteries
Cables Included VGA cable
Compliant Standards Plug and Play, DDC-2B, EN 60950, EN55022, IEC 60950, EN55024, EMC
Power Device Power supply
Nominal Voltage AC 120/230 V ( 50/60 Hz )
Power Consumption Stand by 0.5 Watt
Power Consumption Sleep 0.5 Watt
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Width (Shipping) 57 cm
Depth (Shipping) 12.8 cm
Height (Shipping) 37.6 cm
Weight (Shipping) 5.7 kg
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 10 - 80%
