Samsung DB32E / 32" Class / DBE Series LED display / digital signage / 1080p (Full HD) / direct-lit LED | LH32DBEPLGC/EN
Samsung DB32E / 32" Class / DBE Series LED display / digital signage / 1080p (Full HD) / direct-lit LED | LH32DBEPLGC/EN
Description Engage customers with vivid business messaging on affordable Samsung DBE Series displays. Featuring high picture quality, bright screens (350 nit) and the durability to operate for up to 16 hours a day, DBE Series displays present high-quality content to help you stand out from the competition. With internal memory and embedded Wi-Fi, DBE displays offer convenience and cost-efficiency. Powered by the enhanced 3rd Generation Samsung SMART Signage Platform (SSSP), DME Series displays deliver rich content without an additional PC or media player. Samsung's MagicInfo Player S3 is also equipped with a range of intuitive features, such as decorative icons, drag and drop functionality and various fonts, and with Samsung's convenient mobile app, you can manage your digital signage from virtually anywhere through a smart phone or tablet. Special Features
Product features
|
Product Specification
Product Type | LED-backlit LCD flat panel display |
Energy Class | Class B |
Power Consumption Operational | 121 Watt |
Power Consumption (On mode) | 54 W |
Energy Consumption per Year | 79 kWh |
Diagonal Class | 32" |
Commercial Use | Yes - digital signage |
Series | DBE Series |
TV Tuner | No tuner |
Video Interface | Component, composite, HDMI |
HDMI Ports Qty | 1 ports |
PC Interface | DVI, VGA (HD-15) |
HDCP Compatible | Yes |
Dimensions | Without stand |
Width | 72.14 cm |
Depth | 4.99 cm |
Height | 42.03 cm |
Weight | 4.8 kg |
Resolution | 1920 x 1080 |
Display Format | 1080p (Full HD) |
Image Aspect Ratio | 16:9 |
Motion Enhancement Technology | 60 Hz Refresh Rate |
LCD Backlight Technology | LED backlight - direct-lit LED |
Colour Depth | 16.7 million colours |
Image Contrast Ratio | 5000:1 |
Dynamic Contrast Ratio | 50000:1 |
Brightness | 350 cd/m² |
Viewing Angle | 178 degrees |
Viewing Angle (Vertical) | 178 degrees |
Pixel Pitch | 0.12125 x 0.36375mm |
Response Time | 8 ms |
Commercial Features | Button lock, SMART Signage Platform, Image Rotation, Magic Clone, Auto Source Switching & Recovery |
Features | Pivot, temperature sensor, Multiple Display Control (MDC), picture by picture (no tuner), picture in picture (no tuner), upgradeable firmware, smart phone remote support, Smart Scheduling, Super Clear Coating, d-LED BLU, MagicInfo Player-S3 |
Stand | Optional |
Flat Panel Mount Interface | 200 x 200 mm |
Supported Memory Cards | SD Memory Card |
USB Port | Yes , 1 ports |
Type | Remote control |
Speaker System | 2 speakers |
Output Power / Total | 20 Watt |
Speakers | 2 x main channel speaker - built-in - 10 Watt |
Connectivity | Wi-Fi, LAN |

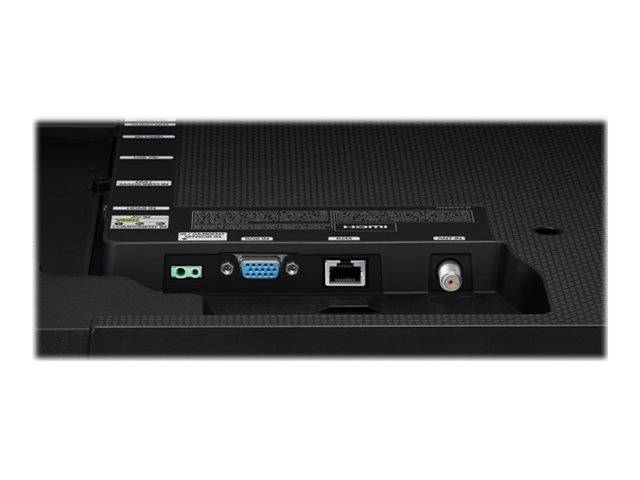

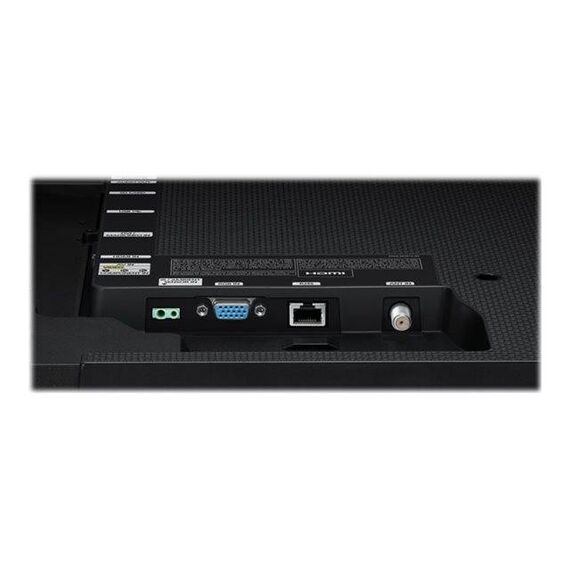

Connector Type | 1 x remote control/ambient sensor input ¦ 1 x VGA input ( 15 PIN HD D-Sub (HD-15) ) ¦ 1 x Multiple Display Control ( RJ-45 ) ¦ 1 x serial input ¦ 1 x serial output ¦ 1 x audio line-in ( mini-phone stereo 3.5 mm ) ¦ 1 x audio line-out ( mini-phone stereo 3.5 mm ) ¦ 1 x DVI-D input ( 24 PIN Digital DVI ) ¦ 1 x HDMI input ( 19 pin HDMI Type A ) ¦ 1 x composite video / component video input |
Included Accessories | Batteries |
Cables Included | VGA cable ¦ Serial adapter |
Compliant Standards | Plug and Play, CSA, UL, TUV, C-Tick, BSMI, BSMI CNS 13438 Class A, cUL, DDC-2B, NEMKO, NOM, SASO, CB, AS/NZS 60950-1, CCC, PSB, IRAM, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, KC, GB 9254-2008, NOM-019-SCFI-1998, K60950-1, KCC KN22, KCC KN24, EAC, EN 55024-2:1998+A1:2001+A2:2003, GB4943.1-2011, RCM, EN 55022:2006+A1:2007, VCCI V-3/2010.04 Class A, CNS 14972, AS/NZS CISPR22:2009, GOST-R 51317 series, GOST 22505-97, CNS 13439 AV EMI, CNS 14409 AV EMS, GB 17625.1-2012, NOM-001-SCFI-1993, BIS, INMETRO |
ENERGY STAR Qualified | Yes |
ENERGY STAR Version | 6.0 |
Power Device | Power supply |
Nominal Voltage | AC 120/230 V ( 50/60 Hz ) |
Power Consumption Stand by | 0.5 Watt |
Power Consumption Sleep | 0.5 Watt |
Width (Shipping) | 81.5 cm |
Depth (Shipping) | 13.2 cm |
Height (Shipping) | 49.1 cm |
Weight (Shipping) | 5.9 kg |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 80% (non-condensing) |
