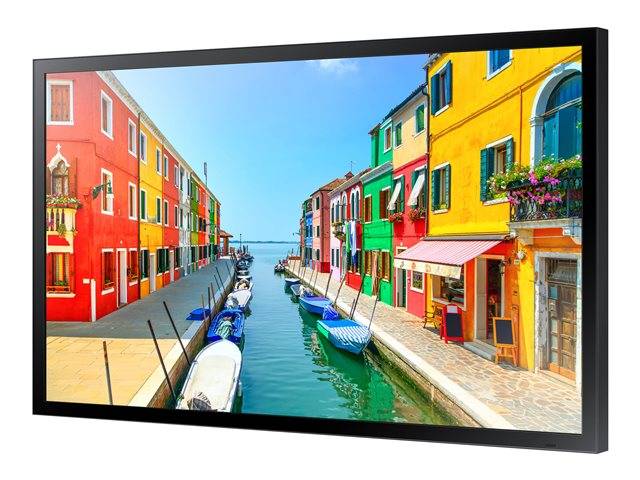

Samsung OH46D / 46" Class / OHD Series LED display / digital signage / 1080p (Full HD) | LH46OHDPKBC/EN
Samsung OH46D / 46" Class / OHD Series LED display / digital signage / 1080p (Full HD) | LH46OHDPKBC/EN
Description Designed for businesses such as retail stores, transportation outlets and Quick Service Restaurants (QSRs), Samsung OHD series SMART signage delivers a premium signage solution that can increase brand awareness, improve traffic and enhance revenue. These high-brightness, high-contrast displays provide exceptionally clear picture quality, even in bright environments, while maximizing durability in harsh conditions, 24/7. OHD series displays also employ energy efficient technology to minimize the increased power consumption of a high-brightness screen, and they come equipped with advanced connectivity technology that enables convenient display management in remote locations. Special Features
Product features
|
Product Specification
Product Type | LED-backlit LCD flat panel display |
Energy Class | Class D |
Power Consumption (On mode) | 193 W |
Energy Consumption per Year | 282 kWh |
Diagonal Class | 46" |
Commercial Use | Yes - digital signage |
Series | OHD Series |
TV Tuner | No tuner |
Sensors | Ambient light sensor (ALS), temperature sensor |
Video Interface | HDMI |
HDMI Ports Qty | 2 ports |
HDCP Compatible | Yes |
Modes | Portrait mode, landscape mode |
Protection | Protection glass |
Width | 106.9 cm |
Depth | 9.03 cm |
Height | 62.36 cm |
Weight | 39.5 kg |
LCD Display Technology | S-VA |
Resolution | 1920 x 1080 |
Display Format | 1080p (Full HD) |
Image Aspect Ratio | 16:9 |
LCD Backlight Technology | LED backlight |
Colour Depth | 16.7 million colours |
Image Contrast Ratio | 5000:1 |
Dynamic Contrast Ratio | 100000:1 |
Brightness | 3000 cd/m² |
Viewing Angle | 178 degrees |
Viewing Angle (Vertical) | 178 degrees |
Response Time | 6 ms |
Commercial Features | Button lock, Auto Source Switching & Recovery, Lamp Error Detection, SMART Signage Platform 2nd Generation, Smart SoC Built-in Signage |
Features | Pivot, Multiple Display Control (MDC), anti-image retention, Auto Brightness Control, MagicInfo S |
Stand | Optional |
Type | Standard remote |
Connectivity | LAN |
Connector Type | 2 x HDMI input ¦ HDBaseT output ¦ Audio line-out |
Compliant Standards | IEC 60529 IP56 |
Power Device | Power supply |
Nominal Voltage | AC 120/230 V ( 50/60 Hz ) |
Power Consumption Sleep | 0.5 Watt |
Width (Shipping) | 117.4 cm |
Depth (Shipping) | 30.5 cm |
Height (Shipping) | 72.7 cm |
Weight (Shipping) | 54.4 kg |
Min Operating Temperature | -35 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 - 80% |
