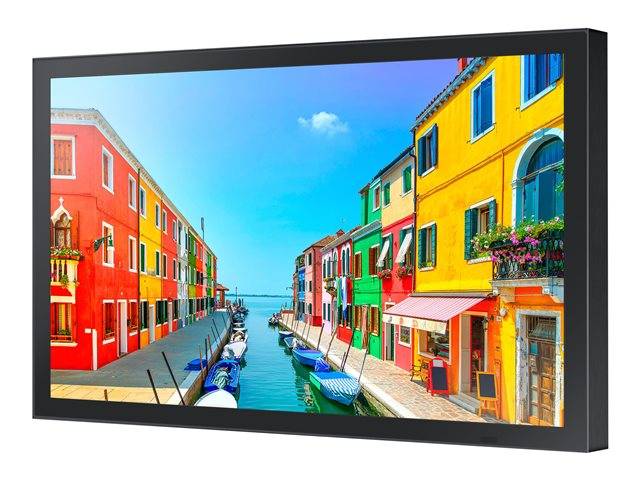

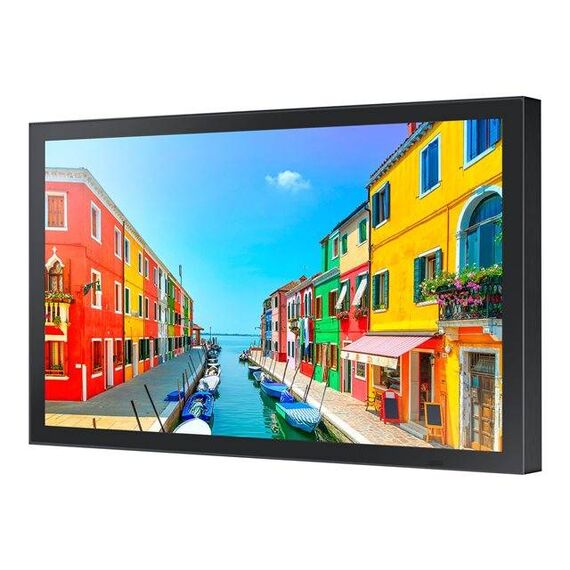

Samsung OH24E / 24" Class ( 23.8" viewable ) LED display / digital signage / with built-in PC / 1080p (Full HD) | LH24OHEPKBB/EN
Samsung OH24E / 24" Class ( 23.8" viewable ) LED display / digital signage / with built-in PC / 1080p (Full HD) | LH24OHEPKBB/EN
Description Samsung's small and versatile outdoor signage allows businesses to tap into a world of customer engagement. By showcasing compelling and entertaining content, you can monetize and leverage customer attention at ATMs, gas pumps and other locations that people encounter throughout their day. Special Features
Product features
|
Product Specification
Product Type | LED-backlit LCD flat panel display |
Diagonal Class | 24" |
Diagonal Size | 23.8 in |
Commercial Use | Yes - digital signage |
Combined with | Built-in PC |
TV Tuner | No tuner |
Video Interface | HDMI |
HDMI Ports Qty | 1 ports |
HDCP Compatible | Yes |
Width | 56.32 cm |
Depth | 6.64 cm |
Height | 33.32 cm |
Weight | 10.6 kg |
LCD Display Technology | S-VA |
Resolution | 1920 x 1080 |
Display Format | 1080p (Full HD) |
Image Aspect Ratio | 16:9 |
LCD Backlight Technology | LED backlight |
Image Contrast Ratio | 4000:1 |
Dynamic Contrast Ratio | 100000:1 |
Brightness | 1500 cd/m² |
Viewing Angle | 178 degrees |
Viewing Angle (Vertical) | 178 degrees |
Response Time | 8 ms |
Commercial Features | Button lock, Lamp Error Detection, SMART Signage Platform 3nd Generation |
Features | Anti-reflection coating, pivot, rugged design, temperature sensor, dust resistant, water resistant, Multiple Display Control (MDC), portrait mode, Certified for 24/7 Continuous Operation, anti-image retention, protection glass, Smart Scheduling, Auto Brightness Control, 72% Color Gamut, MagicInfo Player-S3 |
Flat Panel Mount Interface | 100 x 100 mm |
USB Port | Yes , 1 ports |
PC Configuration | ARM Cortex-A9 Quad-Core / 1.5 GHz / 1 GB DDR3 / 8 GB Flash |
Storage Drive Capacity | 8 GB |
Operating System | Linux |
Type | Remote control |

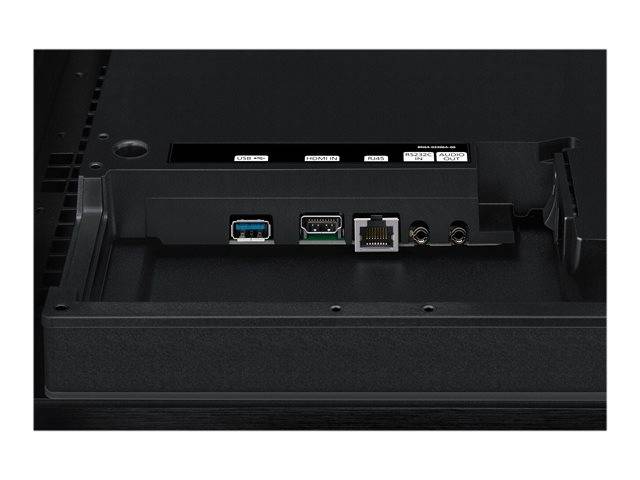

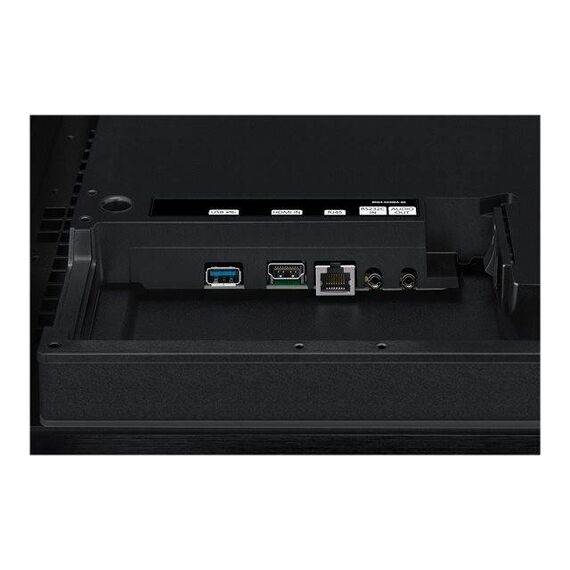

Connector Type | 1 x HDMI input ( 19 pin HDMI Type A ) ¦ 1 x audio line-out ( mini-phone stereo 3.5 mm ) ¦ 1 x USB 2.0 ( 4 PIN USB Type A ) ¦ 1 x serial input ( 9 PIN D-Sub ) ¦ 1 x Multiple Display Control ( RJ-45 ) |
Included Accessories | Batteries |
Compliant Standards | TUV, C-Tick, GOST, NEMKO, PCBC, SASO, SIQ, CISPR 22, CCC, PSB, AS/NZS 3548, IRAM, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60529 IP56, BSMI CNS 13438, CSA C22.2 No. 60950-1, FCC Part 15 B Class A, GB 17625.1, VCCI V-3, KC, GB 9254-2008, NOM-019-SCFI-1998, K60950-1, KCC KN22, KCC KN24, GB4943.1-2011, EN 55022, EN 55024 |
Power Device | Power supply |
Nominal Voltage | AC 120/230 V ( 50/60 Hz ) |
Width (Shipping) | 67.8 cm |
Depth (Shipping) | 15.3 cm |
Height (Shipping) | 41.8 cm |
Weight (Shipping) | 12 kg |
Min Operating Temperature | -30 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 - 80% |
