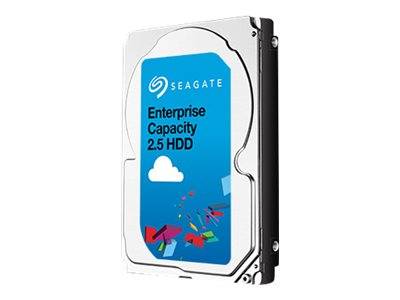

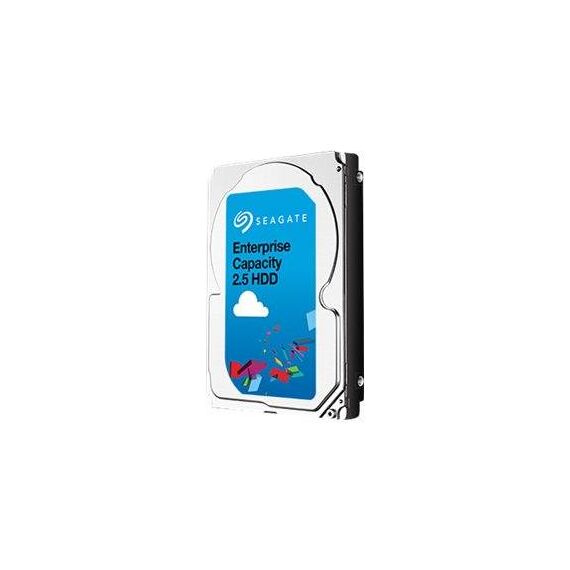

Seagate Exos 7E2000 ST1000NX0423 / Hard drive / 1 TB / internal / 2.5" SFF / SATA 6Gb/s / NL / 7200 rpm / buffer: 128 MB | ST1000NX0423
Seagate Exos 7E2000 ST1000NX0423 / Hard drive / 1 TB / internal / 2.5" SFF / SATA 6Gb/s / NL / 7200 rpm / buffer: 128 MB | ST1000NX0423
Description Up to 2TB capacity in 15mm z-height, 2.5-inch form factor for space-constrained data centers. Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency. Choose 12Gb/s SAS for high data integrity, scalability and fast data access or SATA 6Gb/s for economical nearline performance. Third-generation, enterprise-class reliability for 24×7 environmental robustness Advanced sector formats (4K Native and 512 Emulation) as well as 512 Native support for legacy systems. Highest efficiency with over 50% improvement in watts/TB, and 18% sequential performance improvement compared to the previous generation. Improved rotational vibration tolerance and head micro-actuation maximizes system availability and performance. Lowest enterprise operating power and enhanced PowerChoice options for additional power savings during idle periods. Protect data where it lives - on the drive - by choosing from government-grade SED FIPS 140-2 option or SED models with Seagate Instant Secure Erase technology for easy and cost-effective drive disposal. Seagate Exos 7E2000 ST1000NX0423 / Hard drive / 1 TB / internal / 2.5" SFF / SATA | ST1000NX0423Special Features
|
Product Specification
Device Type | Hard drive - internal - nearline |
Capacity | 1 TB |
Form Factor | 2.5" SFF |
Interface | SATA 6Gb/s |
Buffer Size | 128 MB |
Bytes per Sector | 512 |
Features | Native Command Queuing (NCQ), PowerChoice, Seagate RAID Rebuild, PIO mode 0-4 support, Multi-Word DMA mode 0-2 support, Ultra DMA Mode 0-6 support, Low Halogen, S.M.A.R.T. |
Width | 70.1 mm |
Depth | 100.45 mm |
Height | 15 mm |
Weight | 190 g |
Drive Transfer Rate | 600 MBps (external) |
Internal Data Rate | 136 MBps |
Average Latency | 4.16 ms |
Spindle Speed | 7200 rpm |
MTBF | 2,000,000 hours |
Non-Recoverable Errors | 1 per 10^15 |
Interfaces | 1 x SATA 6 Gb/s |
Compatible Bay | 2.5" SFF |
Power Consumption | 3.51 Watt (idle) ¦ 4.74 Watt (read) ¦ 1.14 Watt (standby) |
Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft'€™s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
Service & Support | Limited warranty - 5 years |
Min Operating Temperature | 5 °C |
Max Operating Temperature | 55 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
Shock Tolerance (operating) | 25 g @ 2 ms half-sine pulse |
Shock Tolerance (non-operating) | 400 g @ 2 ms half-sine pulse |
Vibration Tolerance (operating) | 0.5 g @ 5-500 Hz |
Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
