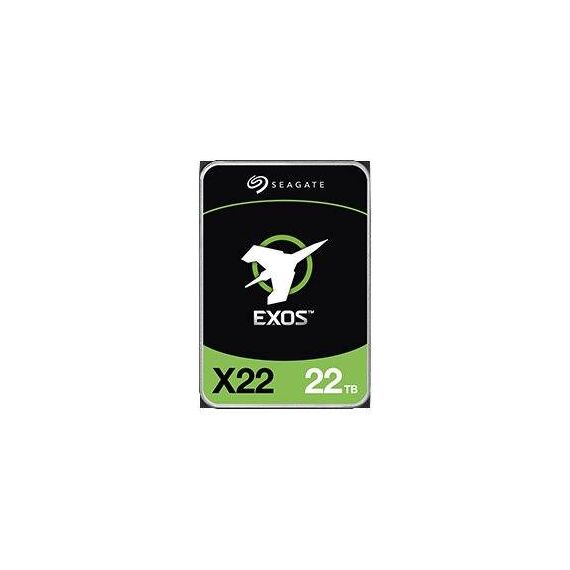

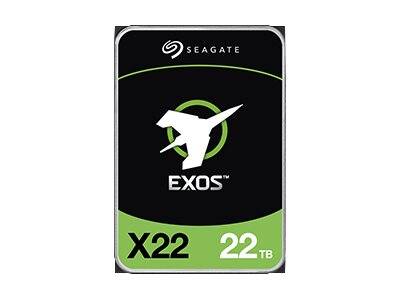

Seagate Exos X22 ST22000NM004E - Hard drive - 22 TB - internal - 3.5" - SAS 12Gb/s - 7200 rpm | ST22000NM004E
Please sign in so that we can notify you about a reply
Special Fetures
- Highly reliable performance with enhanced caching - making it the logical choice for cloud data center and massive scale-out data center applications
- Hyperscale SATA model tuned for large data transfers and low latency
- PowerBalance feature optimizes watts per TB
- Maximize total cost of ownership savings through lower power and weight with helium-sealed drive design
- Proven helium side-sealing weld technology for added handling, robustness, and leak protection
- Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
- Data protection and security - featuring Seagate Secure for safe, affordable, fast, and easy drive retirement
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 22 TB |
| Form Factor | 3.5" |
| Interface | SAS 12Gb/s |
| Bytes per Sector | 528 |
| Features | PowerChoice, Dual Port, Low Halogen, Super Parity, Hot-Plug Support, T10 Data Integrity Field (DIF), 24x7 availability, Organic Solderability Preservative, Conventional magnetic recording (CMR), Secure Download & Diagnostics (SD&D), Helium Sealed-Drive Design, PowerBalance power/performance technology |
| Width | 10.2 cm |
| Depth | 14.7 cm |
| Height | 2.61 cm |
| Weight | 680 g |
| Performance | |
| Drive Transfer Rate | 1.2 GBps (external) |
| Internal Data Rate | 285 MBps (read) / 550 MBps (write) |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Reliability | |
| MTBF | 2500000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Expansion & Connectivity | |
| Interfaces | 1 x SAS 12 Gb/s |
| Compatible Bay | 3.5" |
| Power | |
| Voltage Required | 5 - 12 V |
| Power Consumption | 5.5 Watt (average idle) ¦ 9.4 Watt (max read) ¦ 7 Watt (max write) |
| Miscellaneous | |
| Compliant Standards | RSA 3072 Firmware |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 60 °C |
| Shock Tolerance (operating) | 40 g @ 2 ms |
| Shock Tolerance (non-operating) | 200 g @ 2 ms |
| Vibration Tolerance (operating) | 20-1500 Hz |
| Vibration Tolerance (non-operating) | 2.27 gRMS @ 2-500 Hz |
Features - Seagate - ST22000NM004E
Form Factor
- 3.5"
Capacity
22TB
Interface
- SAS
More Details
Product Code
CH17617
EAN Code
0763649171257
Manufacturer
Seagate
