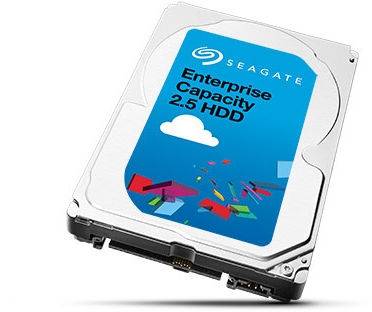

Seagate Exos 7E2000 ST1000NX0453 / Hard drive / 1 TB / internal / 2.5" SFF / SAS 12Gb/s / NL / 7200 rpm / buffer: 128 MB | ST1000NX0453
Seagate Exos 7E2000 ST1000NX0453 / Hard drive / 1 TB / internal / 2.5" SFF / SAS 12Gb/s / NL / 7200 rpm / buffer: 128 MB | ST1000NX0453
Description
Up to 2TB capacity in 15mm z-height, 2.5-inch form factor for space-constrained data centers. Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency. Choose 12Gb/s SAS for high data integrity, scalability and fast data access or SATA 6Gb/s for economical nearline performance. Third-generation, enterprise-class reliability for 24×7 environmental robustness Advanced sector formats (4K Native and 512 Emulation) as well as 512 Native support for legacy systems. Highest efficiency with over 50% improvement in watts/TB, and 18% sequential performance improvement compared to the previous generation. Improved rotational vibration tolerance and head micro-actuation maximizes system availability and performance. Lowest enterprise operating power and enhanced PowerChoice options for additional power savings during idle periods. Protect data where it lives - on the drive - by choosing from government-grade SED FIPS 140-2 option or SED models with Seagate Instant Secure Erase technology for easy and cost-effective drive disposal.
Seagate Exos 7E2000 ST1000NX0453 / Hard drive | ST1000NX0453
Special Features
- High capacity in 15mm z-height, 2.5-inch form factor for space constrained data centers
- Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency
- Third-generation, enterprise-class reliability for 24×7 environmental robustness
- Highest efficiency with over 50% improvement in watts/TB, and 18% sequential performance improvement compared to the previous generation
- Improved rotational vibration tolerance and head micro-actuation maximizes system availability and performance
- Lowest enterprise operating power and enhanced PowerChoice options for additional power savings during idle periods
- Protect data where it lives - on the drive - by choosing from government-grade SED FIPS 140-2 option or SED models with Seagate Instant Secure Erase technology for easy and cost-effective drive disposal
- Storage-hungry business applications
- Storage area networks (SAN) and network attached storage (NAS)
- Maximum-capacity entry-level servers and blade servers
- Rich media content storage
- Enterprise backup and restore - D2D, virtual tape
Product Specification
| Device Type | Hard drive - internal - nearline |
| Capacity | 1 TB |
| Form Factor | 2.5" SFF |
| Interface | SAS 12Gb/s |
| Buffer Size | 128 MB |
| Bytes per Sector | 512 |
| Features | Idle Read After Write (IRAW), Background Media Scan (BMS), PowerChoice, Protection Information (PI), Seagate RAID Rebuild, Low Halogen, S.M.A.R.T. |
| Width | 70.1 mm |
| Depth | 100.45 mm |
| Height | 15 mm |
| Weight | 190 g |
| Drive Transfer Rate | 1.2 GBps (external) |
| Internal Data Rate | 136 MBps |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| MTBF | 2,000,000 hours |
| Recoverable Errors | 10 per 10^12 |
| Non-Recoverable Errors | 1 per 10^15 |
| Seek Errors | 10 per 10^8 |
| Interfaces | 2 x SAS 12 Gb/s |
| Compatible Bay | 2.5" SFF |
| Power Consumption | 3.29 Watt (idle) ¦ 5.9 Watt (read) ¦ 1.52 Watt (standby) |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft'€™s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Service & Support | Limited warranty - 5 years |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (operating) | 25 g @ 2 ms half-sine pulse |
| Shock Tolerance (non-operating) | 400 g @ 2 ms half-sine pulse |
| Vibration Tolerance (operating) | 0.5 g @ 5-500 Hz |
| Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
