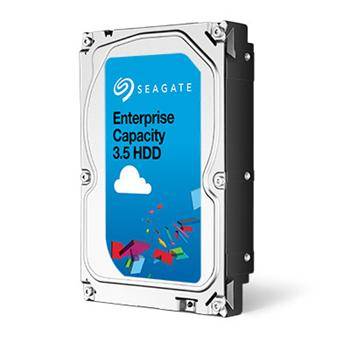

Seagate Exos X10 ST10000NM0206 / Hard drive / 10 TB / internal / 3.5" / SAS 12Gb/s / 7200 rpm / buffer: 256 MB | ST10000NM0206
Seagate Exos X10 ST10000NM0206 / Hard drive / 10 TB / internal / 3.5" / SAS 12Gb/s / 7200 rpm / buffer: 256 MB | ST10000NM0206
Description
The Seagate Enterprise Capacity 3.5 HDD (Helium) lets you turbocharge data transfers with dependably fast read/write performance. Meet your workload requirements while minimizing your data center footprint. Manage increasing volumes of data in cloud data centers much faster thanks to advanced write caching algorithms.
Seagate Exos X10 ST10000NM0206 / Hard drive | ST10000NM0206
Special Features
- Advanced Write Caching feature for 20% boost in random write performance over last-generation HDDs
- Reduced TCO thanks to reduced power and cooling costs and lower weight
- Integrates easily in hyperscale and high-density data center applications with both SATA and SAS interfaces
- 24×7 data availability backed by a 2.5M-hour MTBF and 5-year limited warranty
- Robust wide-weld sealed drive design and field-proven technology for long-term reliability
- Protect data where it lives - on the drive - with Seagate Secure Self-Encrypted Drive technology
Product features
- Built for speed - right where it's needed
The Seagate Enterprise Capacity 3.5 HDD (Helium) lets you turbocharge data transfers with dependably fast read/write performance. Meet your workload requirements while minimizing your data center footprint. Manage increasing volumes of data in cloud data centers much faster thanks to advanced write caching algorithms. - Minimal TCO, maximum MTBF
Dramatically reduce IOPS/watt while improving rack density thanks to low drive weight. - Designed for reliability
A host of engineering innovations ensures a better hermetically sealed - and so much more dependable - drive. Premium materials, including a wrought-aluminum base, gas-impermeable enclosure, and wide-weld sealed drive design ensure maximum reliability. Humidity sensor and corrosion protection offer increased resistance to harsh environments.
Product Specification
Device Type | Hard drive - internal |
Capacity | 10 TB |
Form Factor | 3.5" x 1/3H |
Interface | SAS 12Gb/s |
Buffer Size | 256 MB |
Features | Temperature sensor, Enterprise Class Reliability, PowerChoice, Humidity Sensor, Low Halogen, Super Parity, Hot-Plug Support, T10 Data Integrity Field (DIF), PowerBalance, advanced format 4Kn, 24x7 availability, Organic Solderability Preservative, Multi-Step Forged Helium Sealed-Drive design, Superior Wide-Weld Hermetically Sealed-Drive enclosure, pressure sensor, Advanced Write Caching |
Width | 101.85 mm |
Depth | 147 mm |
Height | 26.11 mm |
Weight | 650 g |
Drive Transfer Rate | 1.2 GBps (external) |
Internal Data Rate | 249 MBps |
4KB Random Read | 170 IOPS |
4KB Random Write | 370 IOPS |
Average Latency | 4.16 ms |
Spindle Speed | 7200 rpm |
MTBF | 2,500,000 hours |
24x7 Operation | Yes |
Non-Recoverable Errors | 1 per 10^15 |
Interfaces | 2 x SAS 12 Gb/s |
Compatible Bay | 3.5" x 1/3H |
Power Consumption | 5.5 Watt (idle) ¦ 9 Watt (write) ¦ 9.4 Watt (random read) |
Service & Support | Limited warranty - 5 years |
Min Operating Temperature | 5 °C |
Max Operating Temperature | 60 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
Shock Tolerance (operating) | 40 g @ 2 ms |
Shock Tolerance (non-operating) | 250 g @ 1 ms |
Vibration Tolerance (operating) | 0.5 g @ 22-350 Hz |
Vibration Tolerance (non-operating) | 2.27 g @ 10-500 Hz |
Features - Seagate - ST10000NM0206
- 3.5"
- Internal
- SATA
