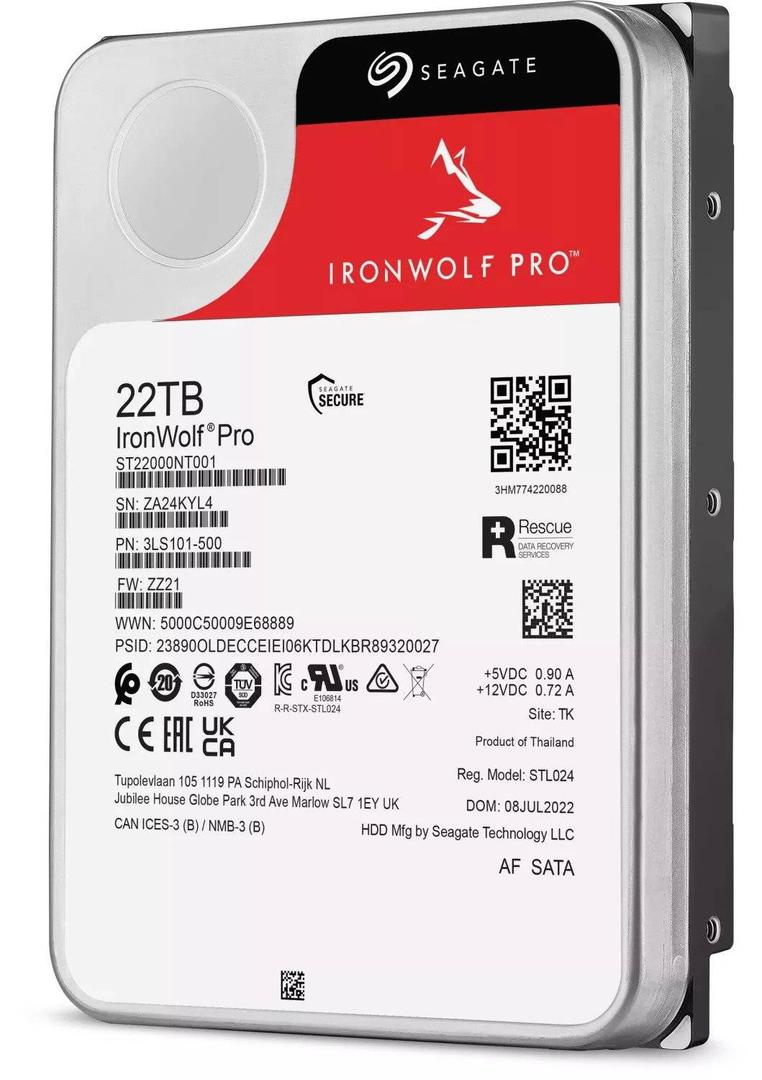

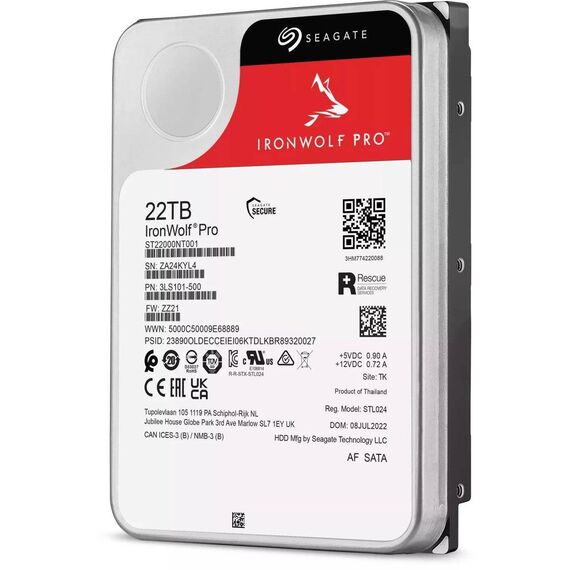

Seagate IronWolf Pro ST22000NT001 / Hard drive / 22 TB / internal / 3.5" / SATA 6Gb/s / 7200 rpm / buffer: 512 MB / with 3 years Seagate Rescue Data Recovery | ST22000NT001
Please sign in so that we can notify you about a reply
Product Features
- Optimized for NAS with AgileArray
AgileArray enables Dual-Plane Balancing and TimeLimited Error Recovery to deliver exceptional RAID performance in multi-bay systems. - Always on, always accessible
IronWolf Pro drives are designed for 24 x 7 usage, allowing users to access their data any time, anywhere. - All-CMR portfolio
All IronWolf Pro drives utilize conventional magnetic recording (CMR) technology for consistent, exceptional NAS performance. - Built tough
IronWolf Pro drives are rated for 550TB/Y workload, allowing commercial and enterprise NAS users to seamlessly store, share and collaborate on large amounts of networked data. - Class-leading reliability and dependability
IronWolf Pro drives are rated for 2.5M hours MTBF and great total cost of ownership (TCO). - Rotational Vibration (RV) sensors
Built-in RV sensors for vibration tolerance and consistent performance in multi-bay systems.
Special Features
- Optimized for NAS with AgileArray
- Always on, always accessible
- All-CMR portfolio
- Built tough
- Class-leading reliability and dependability
- Rotational Vibration (RV) sensors
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 22 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 512 MB |
| Features | RV Sensor, Time-Limited Error Recovery (TLER), advanced format 512e, 24x7 availability, Dual-Plane Balance, AgileArray, Conventional magnetic recording (CMR), Helium Sealed-Drive Design, Workload Rate Limit(WRL) up to 550 |
| Width | 101.85 mm |
| Depth | 146.99 mm |
| Height | 26.11 mm |
| Weight | 690 g |
| Bundled with | 3 years Seagate Rescue Data Recovery |
| Performance | Performance |
| Drive Transfer Rate | 600 MBps (external) |
| Spindle Speed | 7200 rpm |
| Reliability | Reliability |
| MTBF | 2,500,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 3.5" |
| Power | Power |
| Power Consumption | 6 Watt (average idle) ¦ 7.9 Watt (active) ¦ 1.2 Watt (standby) ¦ 1.2 Watt (sleep) |
| Software & System Requirements | Software & System Requirements |
| Software Included | IronWolf Health Management |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 65 °C |
| Shock Tolerance (operating) | 40 g @ 2 ms |
| Shock Tolerance (non-operating) | 200 g @ 2 ms |
| Vibration Tolerance (non-operating) | 2.27 g @ 10-500 Hz |
| Sound Emission | 20 dBA |
Features - Seagate - ST22000NT001
Form Factor
- 3.5"
- Internal
Capacity
22TB
Interface
- SATA
More Details
Product Code
07:132340
EAN Code
8719706432269
Manufacturer
Seagate
