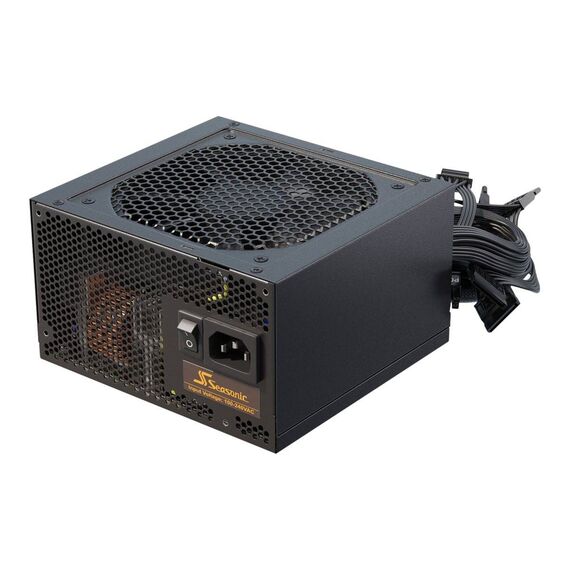

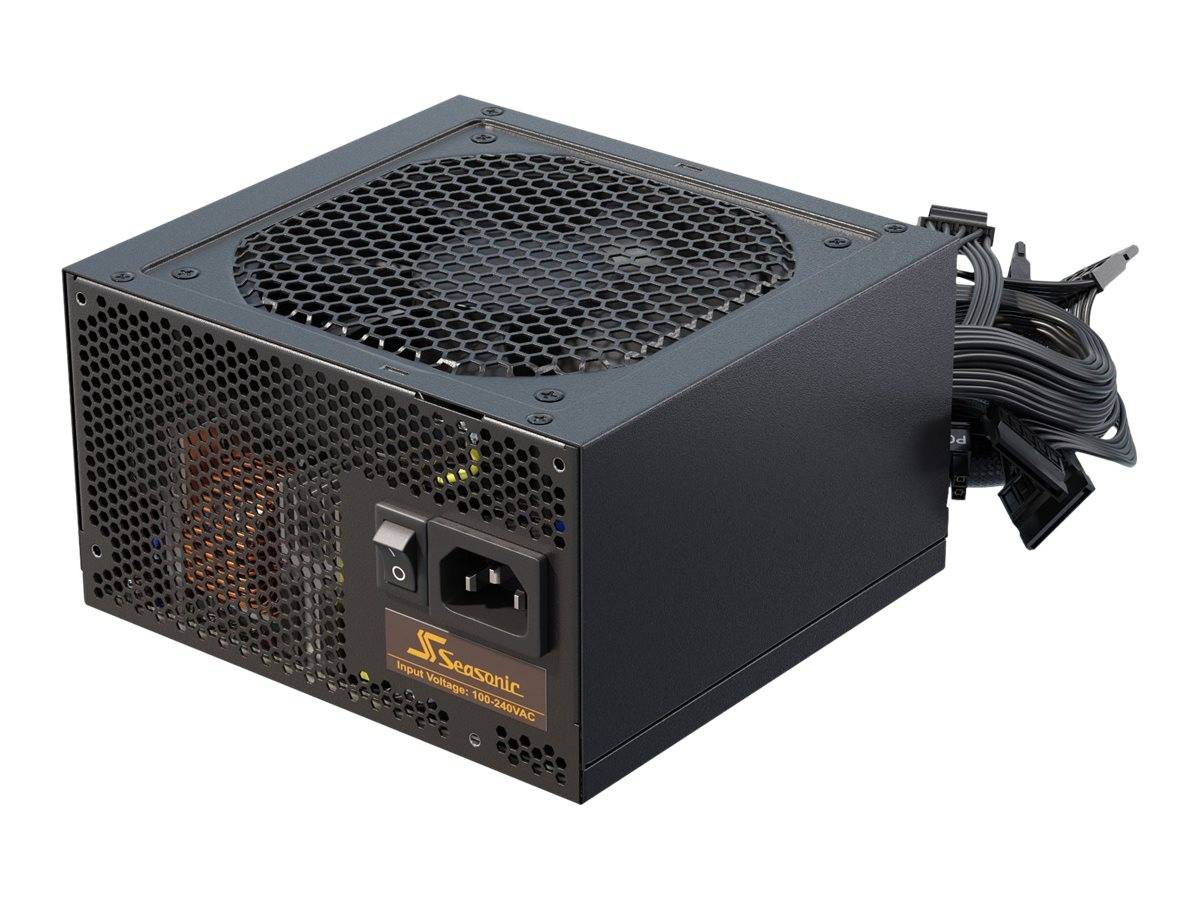

Seasonic B12 BC Series / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Bronze / AC 100-240 V / 750 Watt | B12-BC-750
B12-BC-750
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- 80 PLUS Bronze
The 80 PLUS Bronze certification indicates that a high percentage of the electricity is converted into useful power, therefore there is less heat lost and more money saved on the electricity bill. - S2FC - smart and silent fan control
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
Special Features
- 80 PLUS Bronze certified
- Fixed cables
- Tight Voltage Regulation
- S2FC - Smart and Silent Fan Control
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power |
| Output Voltage | DC +3.3, DC +5, DC ±12 V ± 3% |
| Power Capacity | 750 Watt |
| Output Current | +3.3V - 15 A ¦ +5V - 15 A ¦ +12V - 62 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| 80 PLUS Certification | 80 PLUS Bronze |
| Miscellaneous | Miscellaneous |
| Included Accessories | 4 mounting screws |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | On/off switch, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, sleeve bearing cooling fan, non-modular, Seasonic S2FC fan Control |
| Compliant Standards | BSMI, CB, CCC, FCC, RoHS, WEEE, cTUVus, REACH, EAC, TUV Rheinland, ErP Lot 6 2013 Ready |
| Environmental Standards | Environmental Standards |
| ENERGY STAR | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Sea Sonic - B12-BC-750
More Details
Product Code
07:124836
EAN Code
4711173876724
Manufacturer
Sea Sonic
