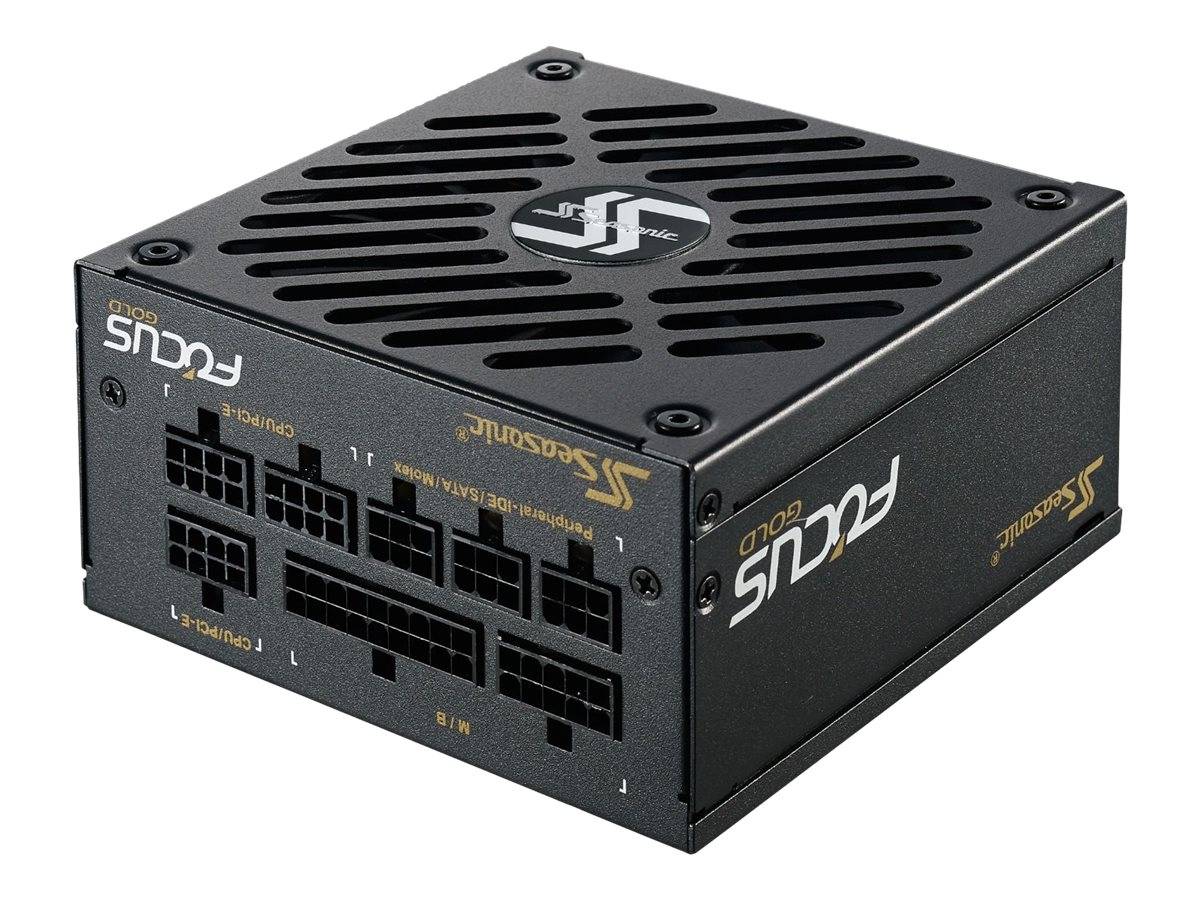

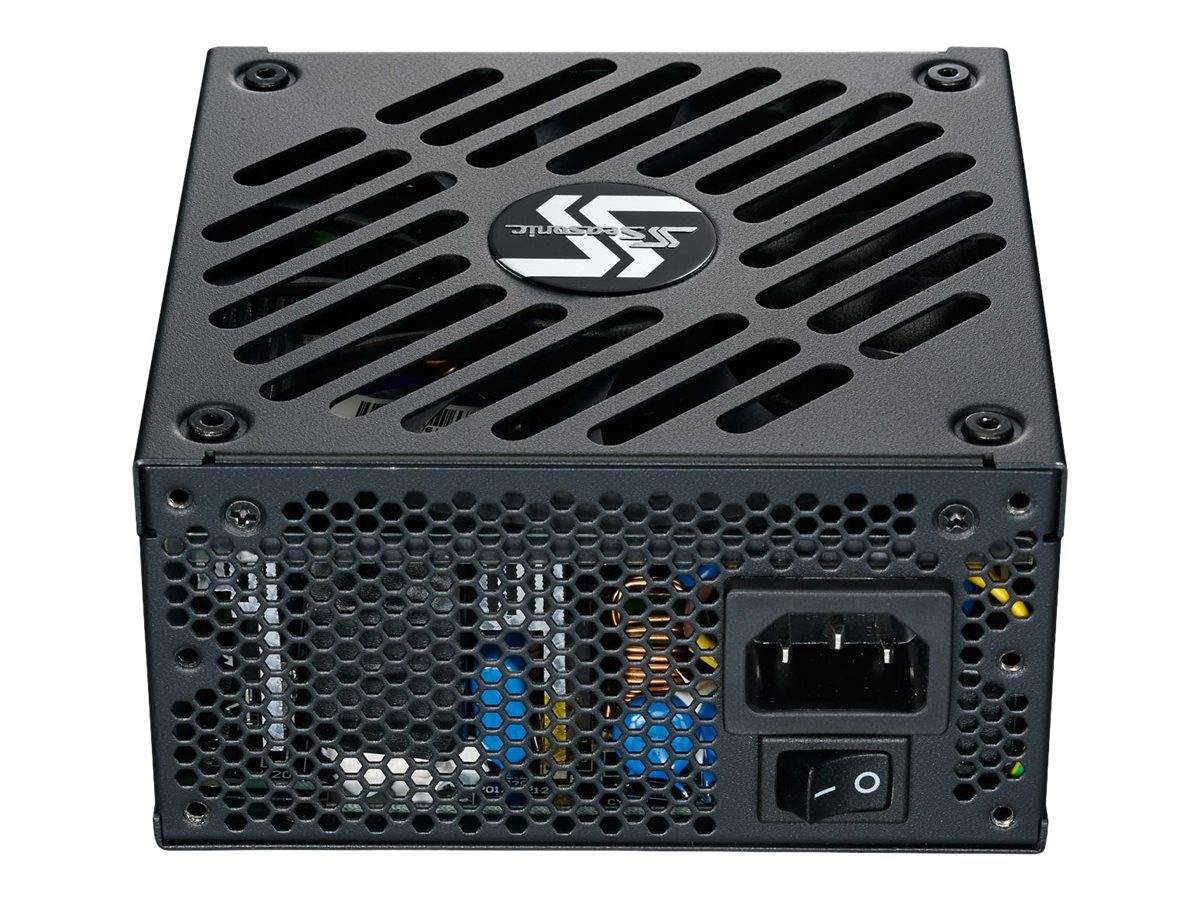

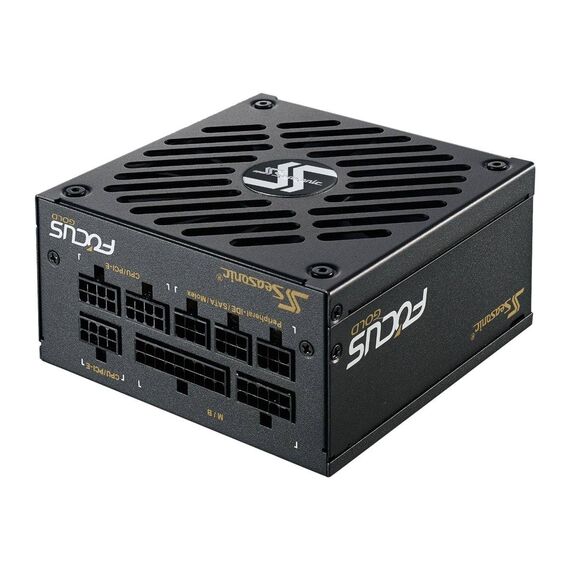

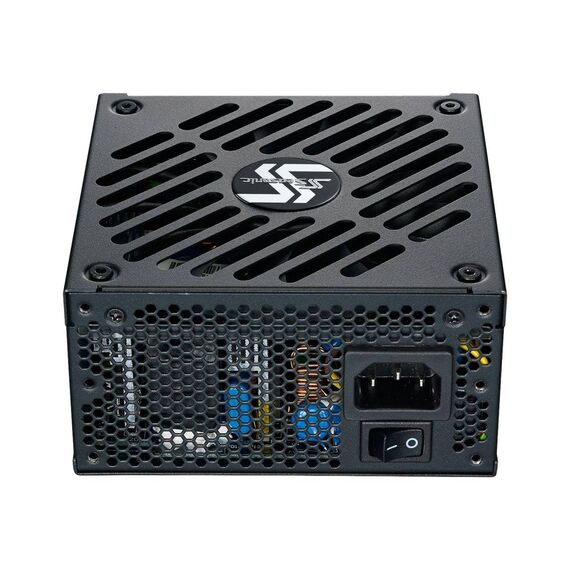

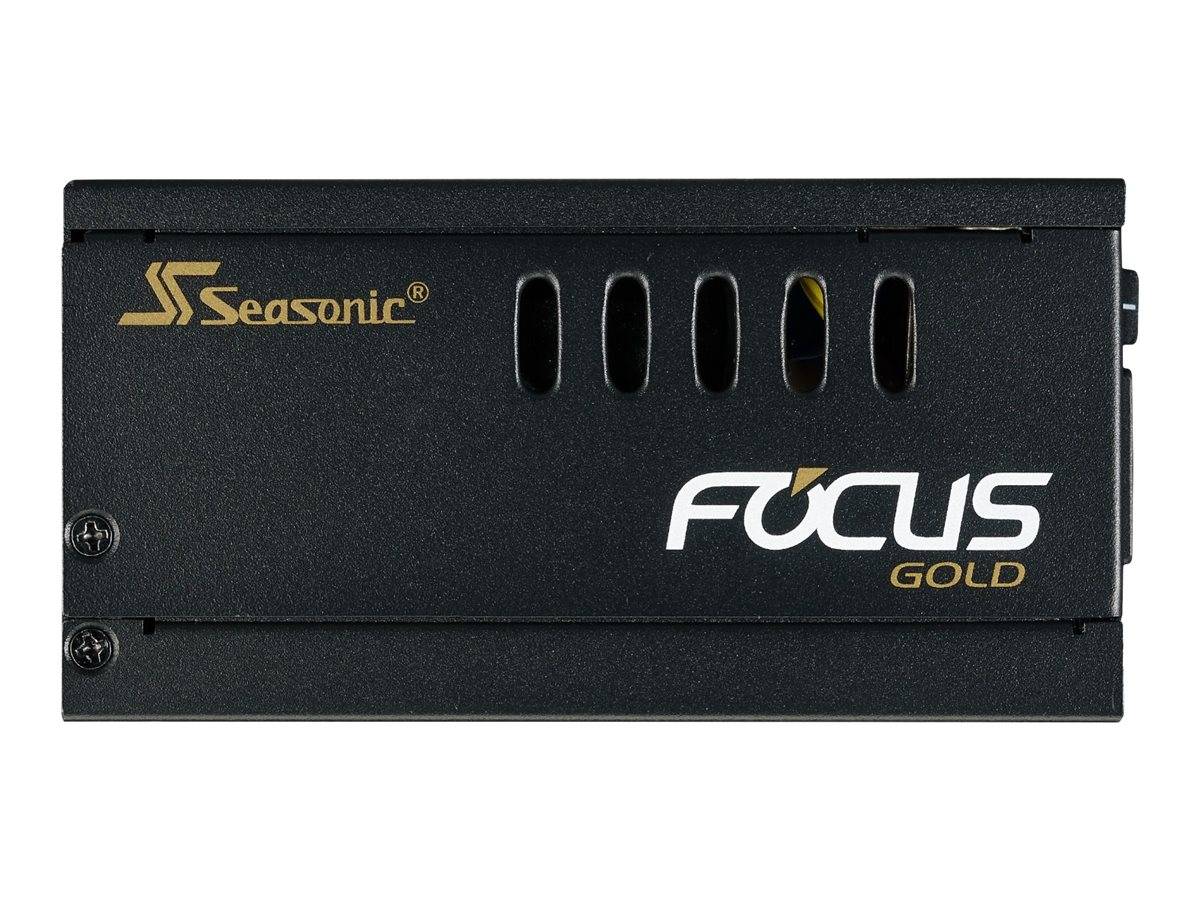

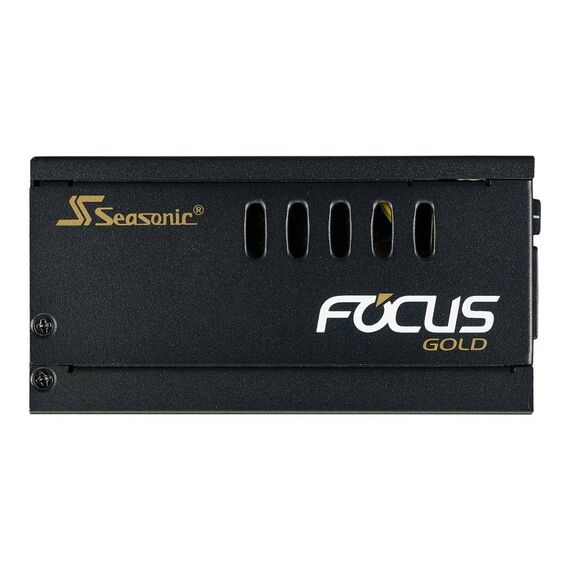

Seasonic FOCUS SGX 500 / Power supply (internal) / ATX12V / SFX12V / 80 PLUS Gold / AC 100-240 V / 500 Watt | FOCUS-SGX-500
FOCUS-SGX-500
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Hybrid Silent Fan Control
Advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode. - Fluid dynamic fan bearing
High-performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Special Features
- Tight voltage regulation
- Cable-free connection design
- S3FC - fanless until 30% load
- SFX to ATX expandability
- Gold-plated connectors
- Reduced noise without increase in temperature
- Extended fan life due to the reduced number of fan rotations
- Optimized heat dissipation at all times
- Unsurpassed silent performance in Fanless Mode
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V / SFX12V |
| PSU Form Factor | SFX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |

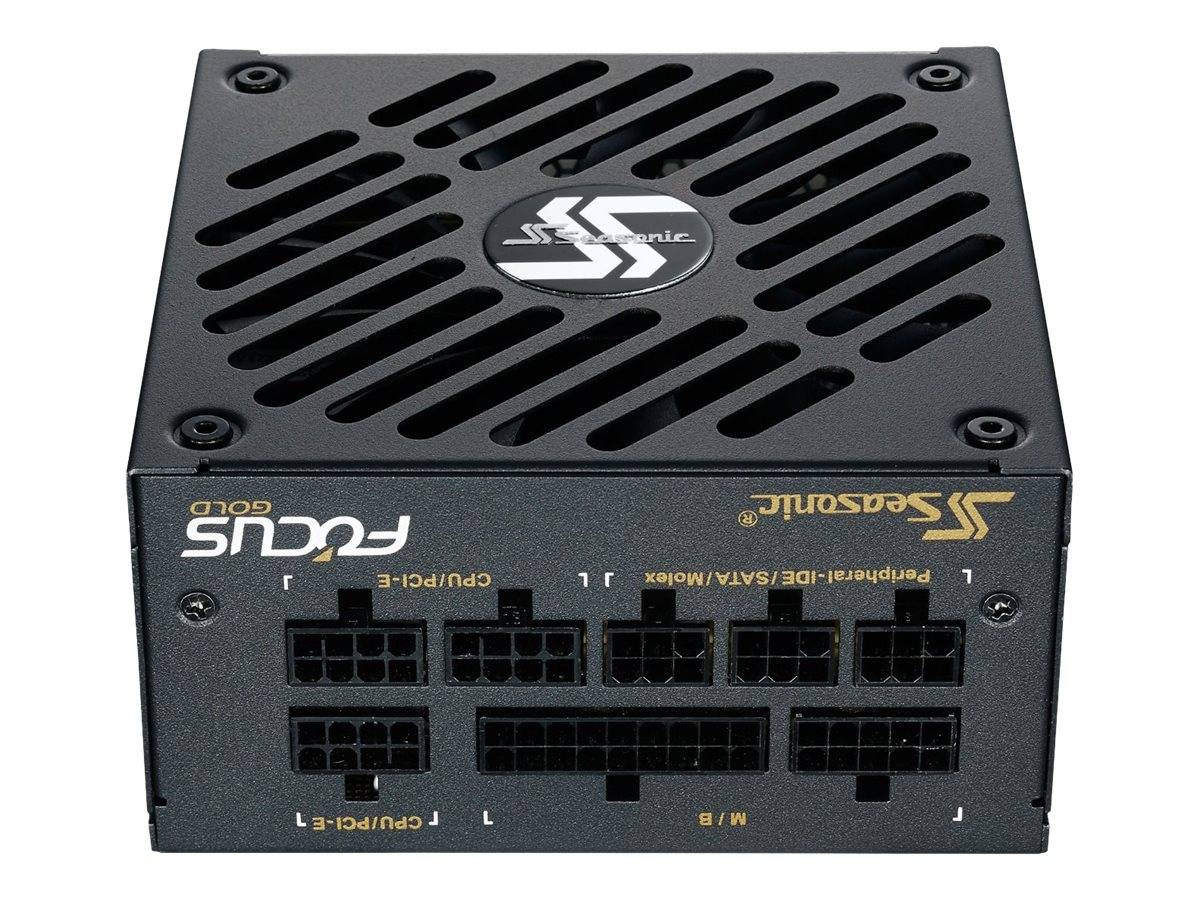

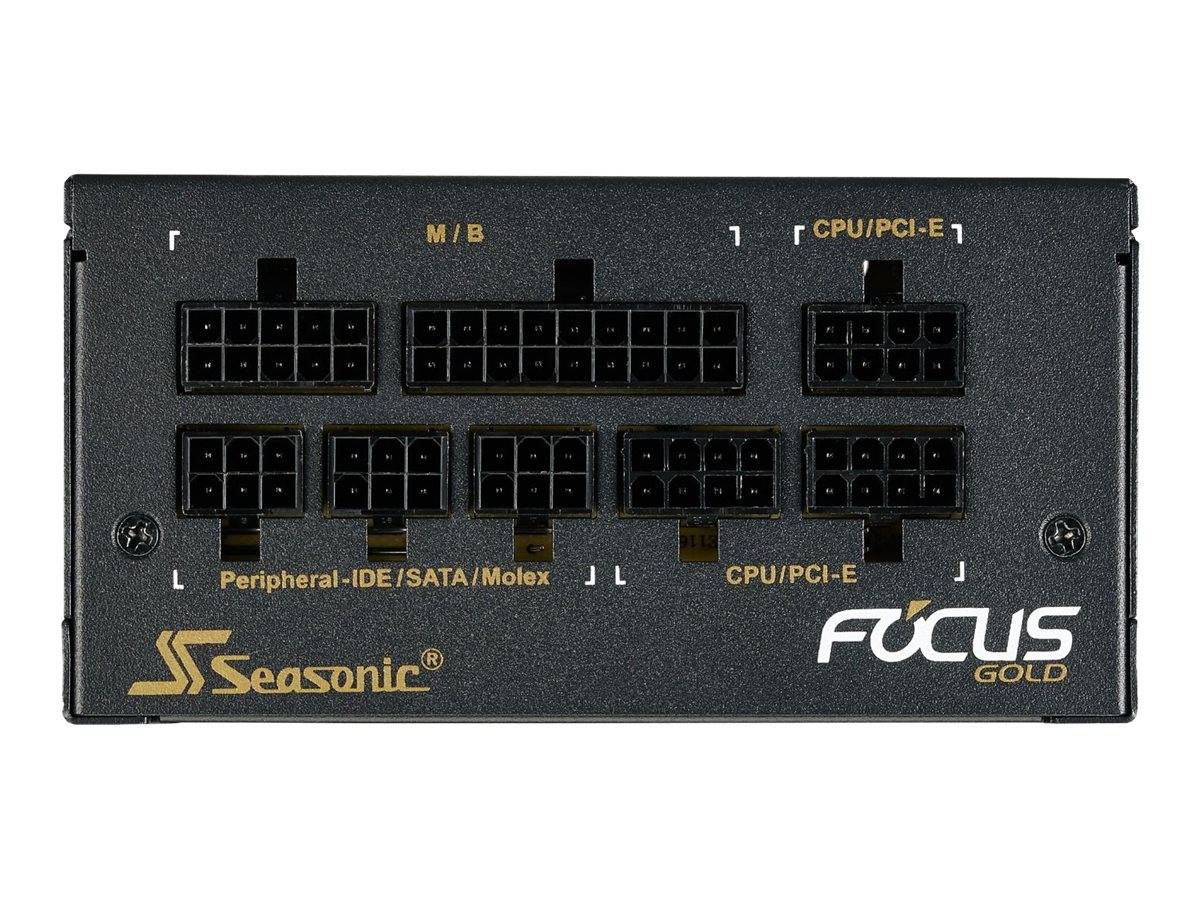

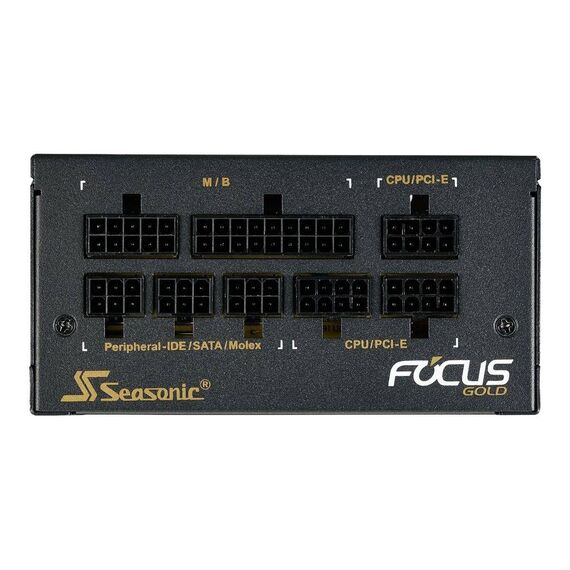

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 41 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 90% at 50% Load |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| Included Accessories | SFX to ATX bracket |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | On/off switch, overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, fluid dynamic bearing cooling fan, Premium Hybrid Fan Control, fully modular, Seasonic S3FC fan Control |
| Compliant Standards | TUV, BSMI, CB, CCC, RoHS, WEEE, cTUVus, Energy-Related Products (ErP) Lot 6, REACH, EAC |
| Environmental Standards | Environmental Standards |
| ENERGY STAR | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12.5 cm |
| Depth | 12.5 cm |
| Height | 6.35 cm |
Features - Sea Sonic - FOCUS-SGX-500
More Details
Product Code
07:128222
EAN Code
4711173875246
Manufacturer
Sea Sonic
