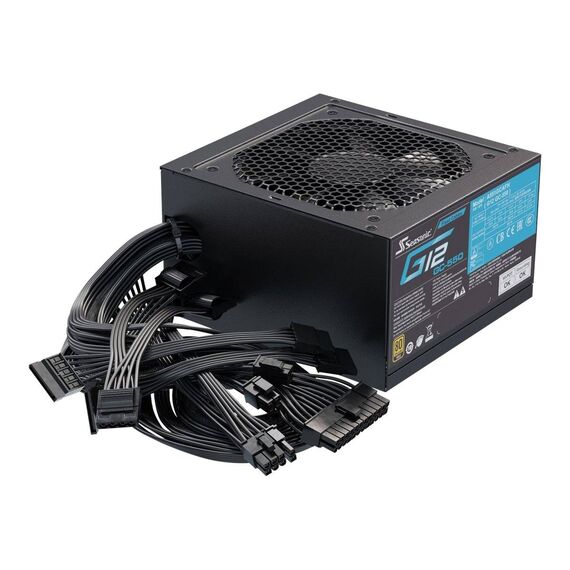

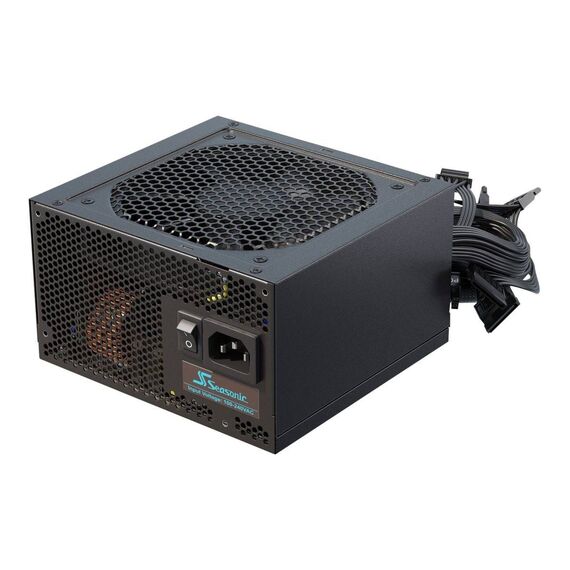

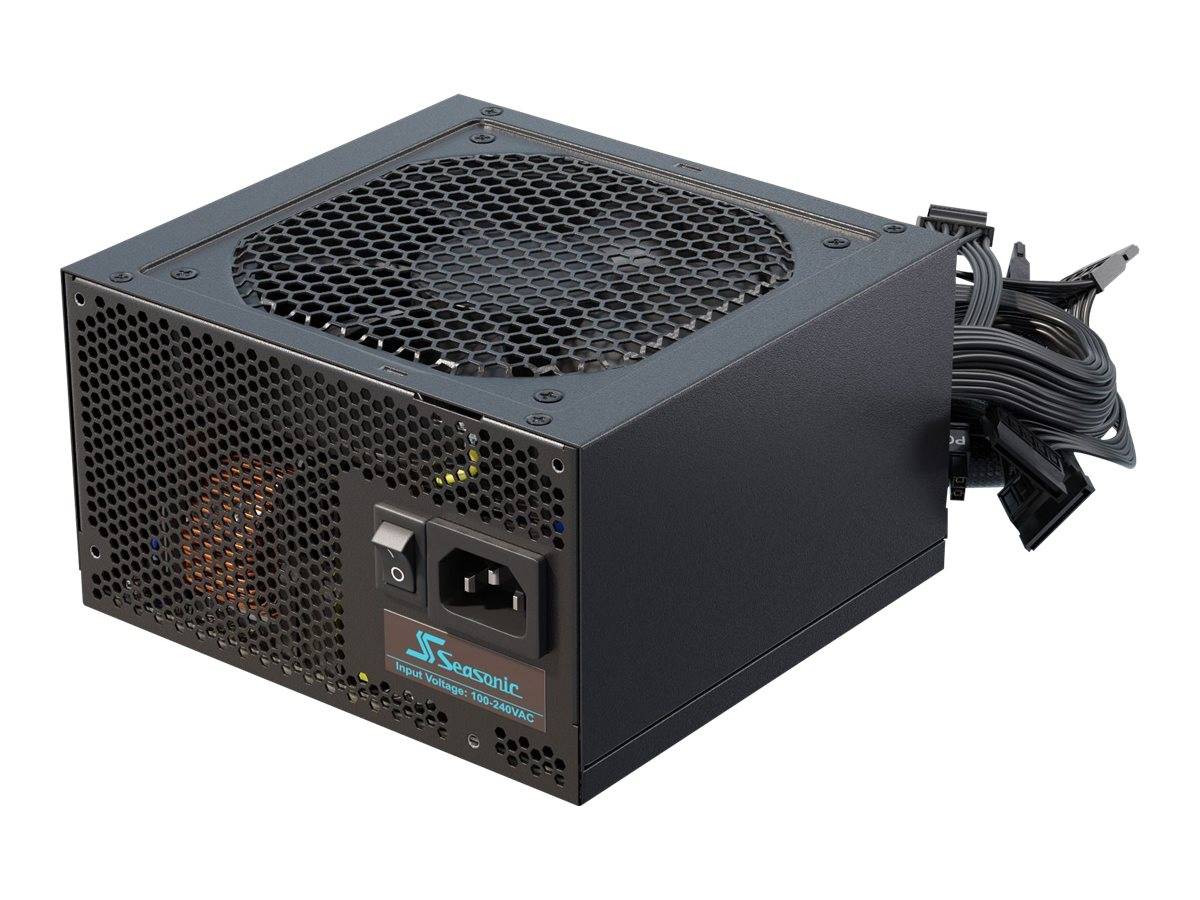

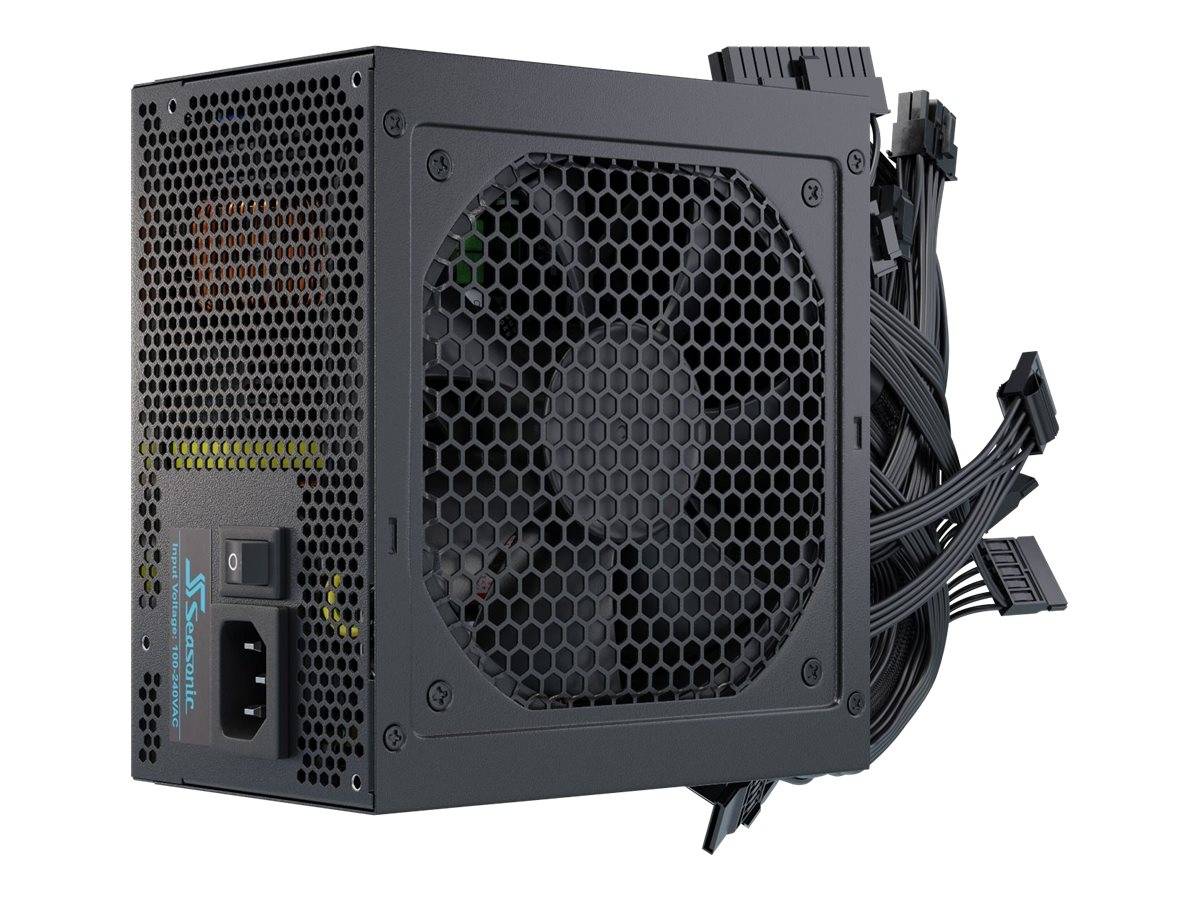

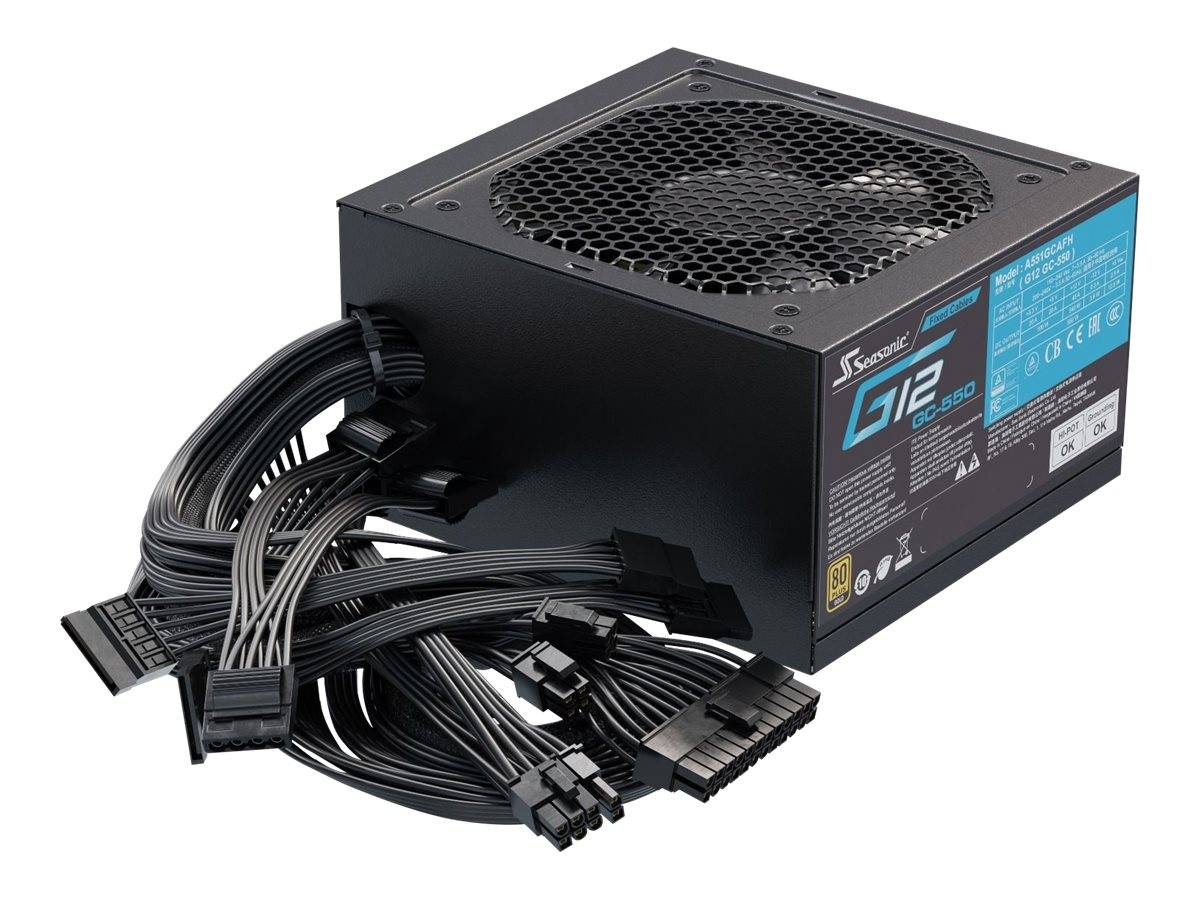

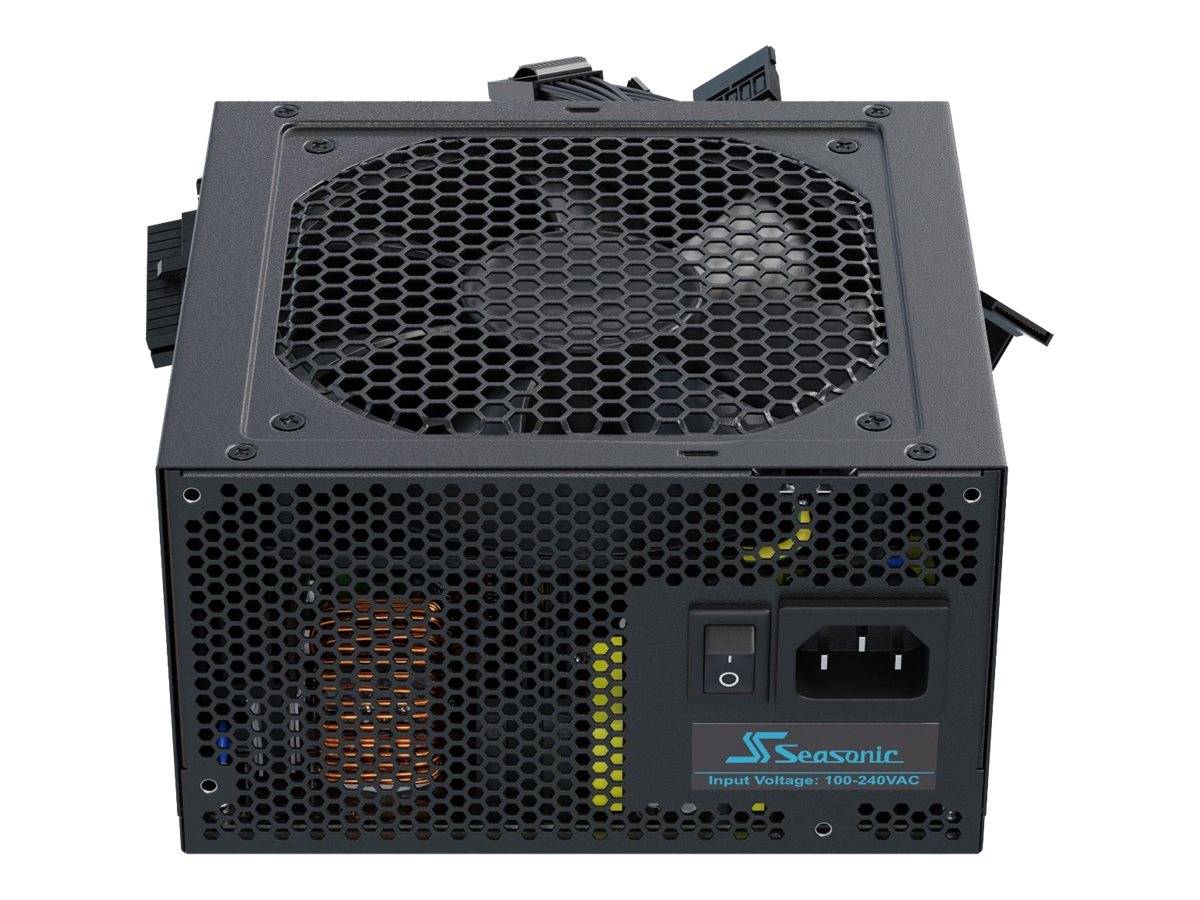

Seasonic G12 GC-550 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 550 Watt / active PFC | G12-GC-550
G12-GC-550
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- High efficiency, 80 PLUS Gold certified
- Compact ATX size [140 mm deep]
- Smart and silent fan control
- Tight voltage regulation (12 V, 5 V, 3.3 V) [± 3 %]
- Ample +12 V output
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 550 Watt |
| Output Current | +5V - 15 A ¦ +3.3V - 15 A ¦ +12V - 45 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 87% at 20% Load, 90% at 50% Load, 87% at 100% Load |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Over current protection, over voltage protection, overpower protection, short-circuit protection, Smart & Silent Fan Control (S2FC), sleeve bearing cooling fan, non-modular |
| Compliant Standards | TUV, CB, CCC, FCC, WEEE, cTUVus, REACH, EAC, ErP Lot 6 2013 Ready |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Sea Sonic - G12-GC-550
More Details
Product Code
07:122140
EAN Code
4711173876786
Manufacturer
Sea Sonic
