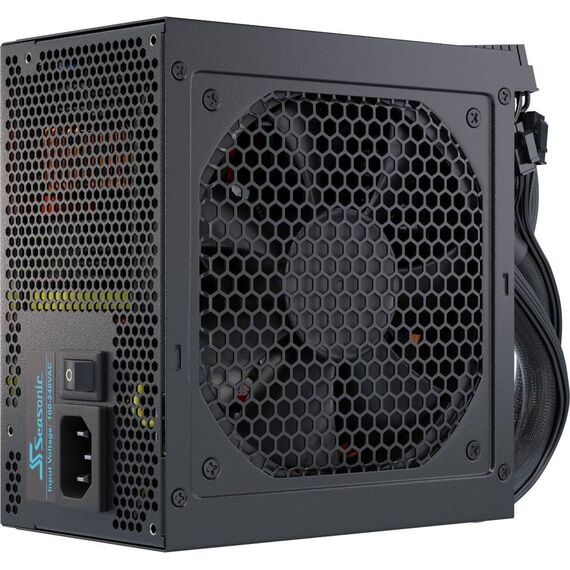

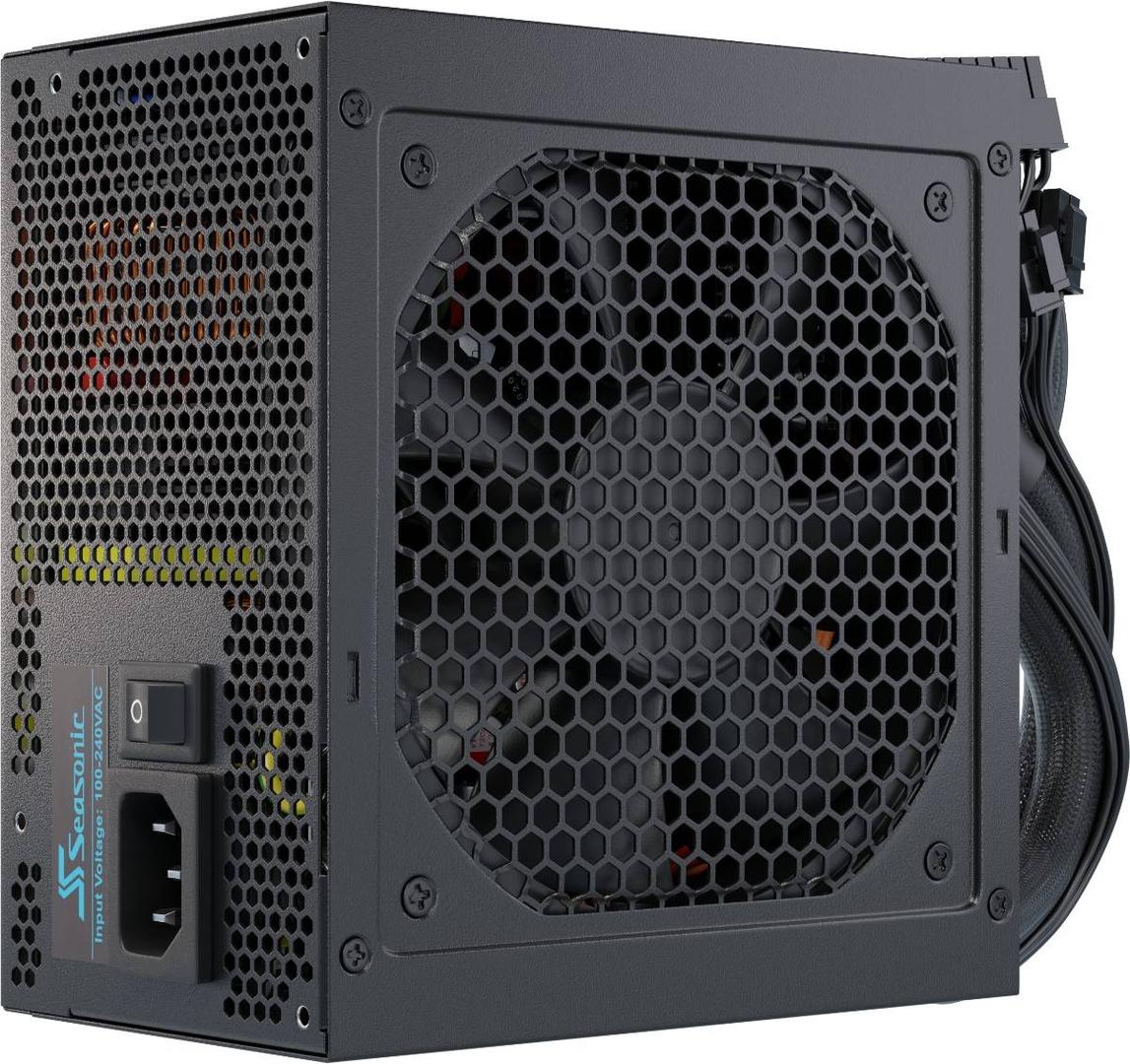

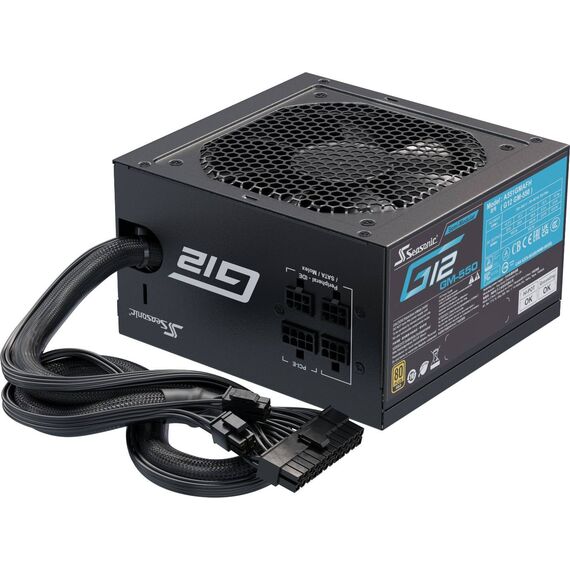

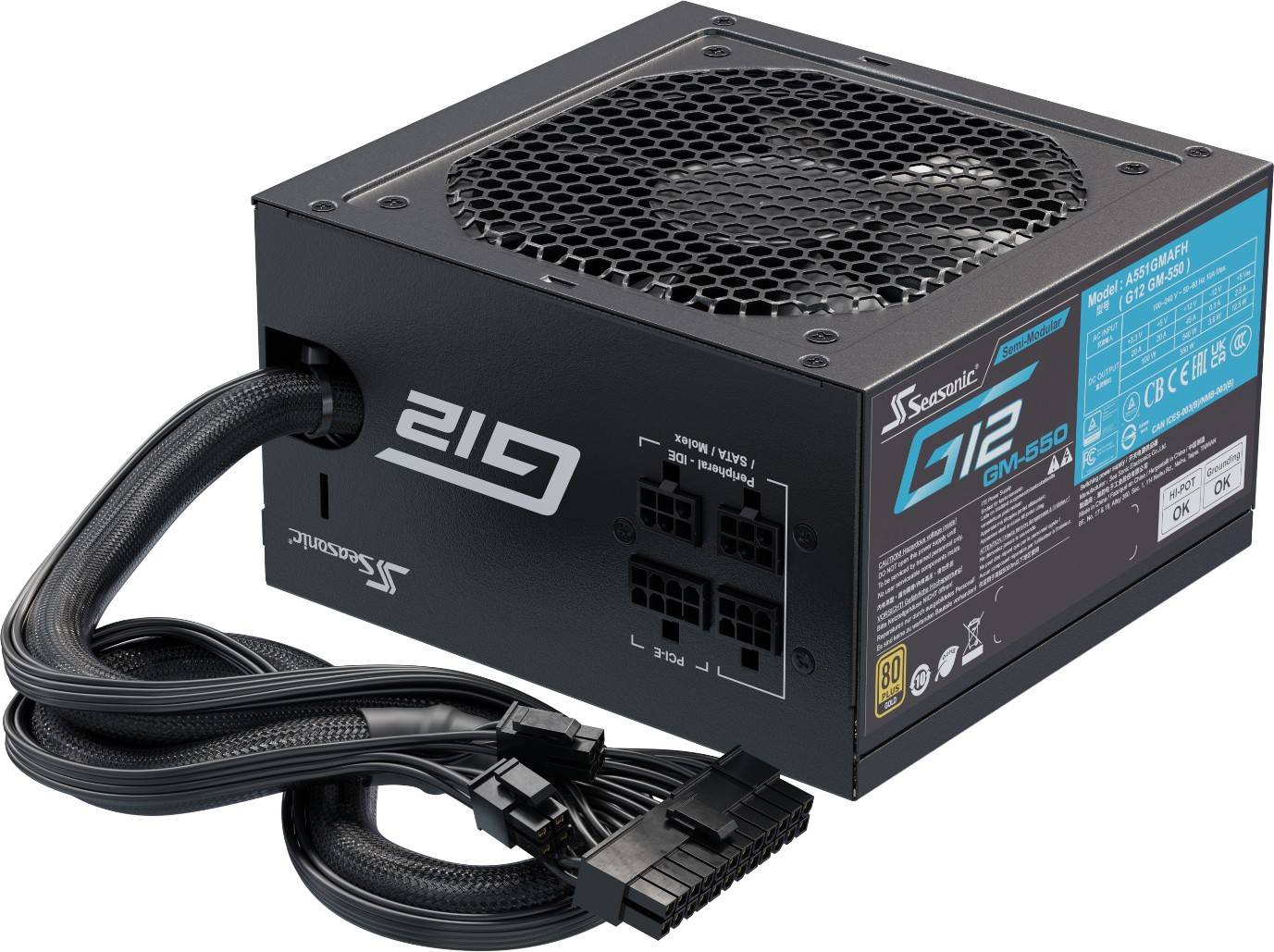

Seasonic G12 GM Series / Power supply (internal) / ATX12V / 80 PLUS Gold / AC 100-240 V / 550 Watt | G12-GM-550
G12-GM-550
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power |
| Output Voltage | +3.3, +5, ±12 V |
| Max Electric Current | 10 A |
| Power Capacity | 550 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 45 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Over current protection, over voltage protection, overpower protection, short-circuit protection, Smart & Silent Fan Control (S2FC), sleeve bearing cooling fan, non-modular |
| Compliant Standards | TUV, BSMI, CB, CCC, FCC, RoHS, WEEE, cTUVus, REACH, ErP Lot 6 2013 Ready |
| Environmental Standards | Environmental Standards |
| ENERGY STAR | Yes |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - Sea Sonic - G12-GM-550
More Details
Product Code
07:128226
EAN Code
4711173877400
Manufacturer
Sea Sonic
