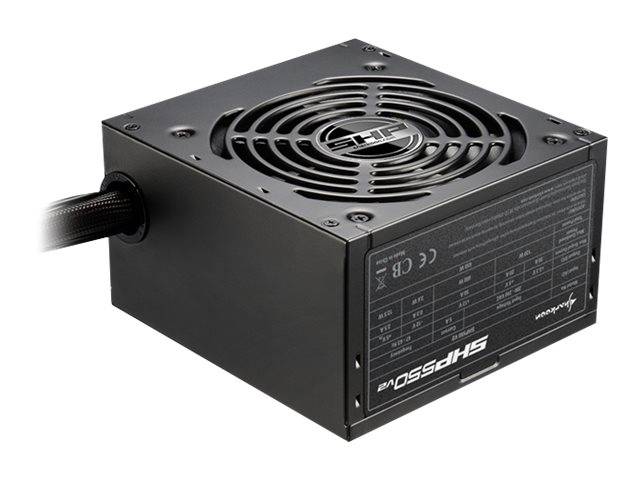

Sharkoon SHP 550 / V2 / power supply / ATX12V 2.3 / 80 PLUS / AC 200-240 V / 550 Watt / active PFC / black | 4044951019779
|
Description The SHP is a solid, all-around power supply for office, multimedia and moderate gaming PCs. A black painted housing, black textile mainboard cable and a black peripheral cable provides an elegant and discreet look. The quiet 120 mm fan ensures efficient and noiseless heat dissipation. Sharkoon SHP 550 / V2 | 4044951019779Special Features
Product features
|
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3 |
| PSU Form Factor | ATX |
| Colour | Black |
| Input Voltage | AC 200-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 1 x 4 PIN mini-power connector ¦ 3 x 4 PIN internal power ¦ 4 x 15 pin Serial ATA power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 550 Watt |
| Output Current | +3.3V - 18 A ¦ +5V - 18 A ¦ +12V - 42 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 82% at 20% Load, 85% at 50% Load, 82% at 100% Load |
| 80 PLUS Certification | 80 PLUS |
| Cables Included | Power cable |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, Intel 4th-gen CPU (Haswell) compatible, sleeve bearing cooling fan, non-modular |
| Compliant Standards | CB, ERP |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Sound Emission | 20.39 dBA |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.4 kg |
Features - Sharkoon - 4044951019779
More Details
Product Code
04:223538
EAN Code
4044951019779
Manufacturer
Sharkoon
