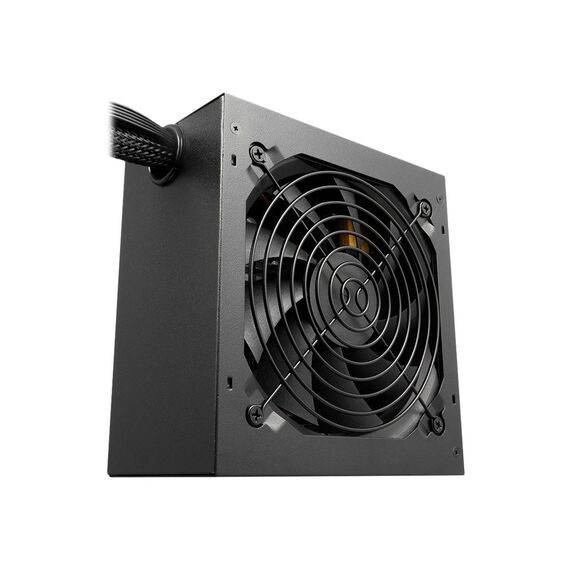

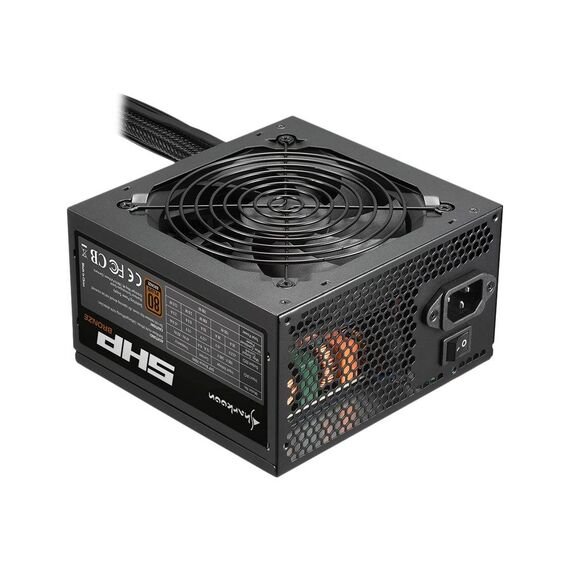

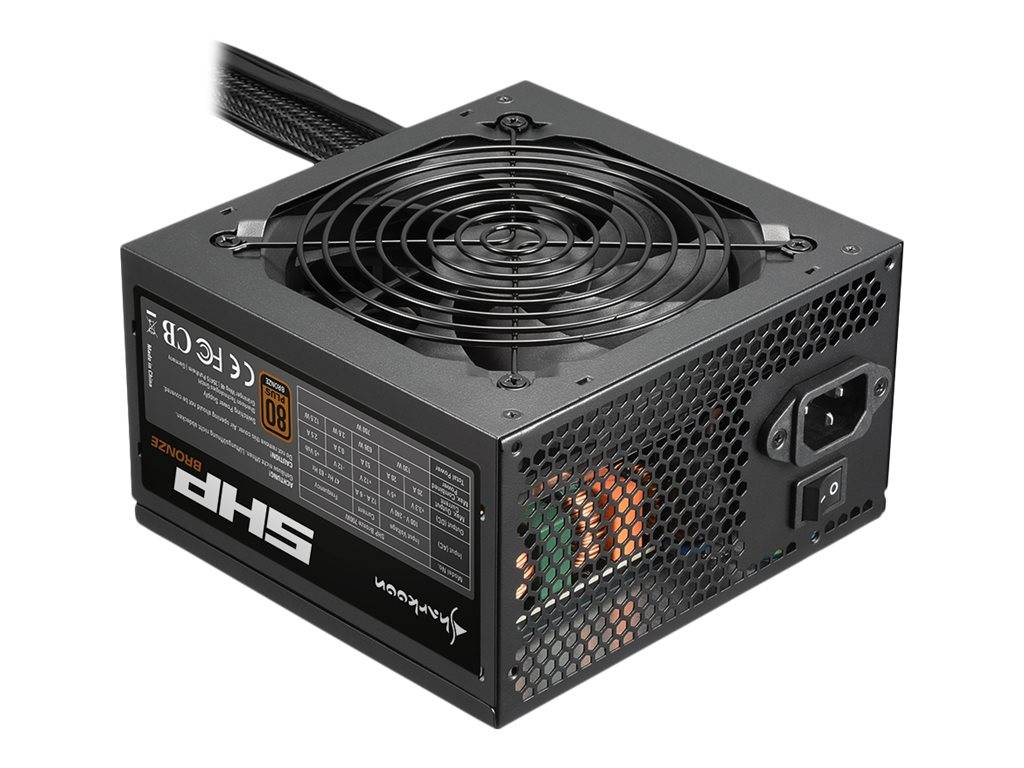

Sharkoon SHP Bronze / Power supply (internal) / ATX12V 2.3 / 80 PLUS Bronze / AC 100-240 V / 700 Watt / active PFC / black | 4044951031641

4044951031641
77.70
(92.46 inc. VAT)
Availability: 23 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Delivery
Payment options
Product Code04:378823 EAN Code4044951031641 ManufacturerSharkoon

Product Features

  • Energy efficient running
    This power supply is certified "80 PLUS Bronze" achieving at least 85 % energy efficiency at 50 % load, as well as at least 82 % efficiency at 20 % and 100 % loads.
  • Low-profile simplicity
    The power supply can be installed and connected easily and quickly. Its metallic housing, the fan grille as well as the connectors and the cable sheathing have all been kept completely in black. This allows the power supply to be inconspicuously integrated into the PC casing.
  • RYZEN compatible
    Thanks to the various, permanently attached standard connections, the SHP Bronze can be connected to all current mainboard models. For maximum compatibility, a 4+4-pin connector is comprised in the two 8-pin CPU connectors.
  • Reliable energy supply
    The SHP Bronze has been made for longevity and reliability. The power supply provides a constant and stable voltage, while the noise and heat levels are kept to a minimum.
  • Quiet fan
    For full concentration in the office or for undisturbed enjoyment while gaming, the fan of the SHP Bronze is distinctly quiet. Also, while in operation, the power supply remains quietly in the background without any distraction.

Special Features

  • Energy efficient running
  • Low-profile simplicity
  • RYZEN compatible
  • Reliable energy supply
  • Quiet fan

Product Specification

Device Type Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance ATX12V 2.3
PSU Form Factor ATX
Colour Black
Power Device Power Device
Input Voltage AC 100-240 V
Frequency Required 47 - 63 Hz
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 1 x power 8 pin +12V ¦ 3 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section
Output Voltage +3.3, +5, ±12 V
Power Capacity 700 Watt
Output Current +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 53 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
80 PLUS Certification 80 PLUS Bronze
Miscellaneous Miscellaneous
Cables Included Power cable
MTBF 100,000 hours
Features Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, sleeve bearing cooling fan
Compliant Standards FCC, RoHS, ERP
Dimensions & Weight Dimensions & Weight
Width 15 cm
Depth 14 cm
Height 8.6 cm
Weight 1.6 kg

Features - Sharkoon - 4044951031641

More Details
Product Code
04:378823
EAN Code
4044951031641
Manufacturer
Sharkoon
