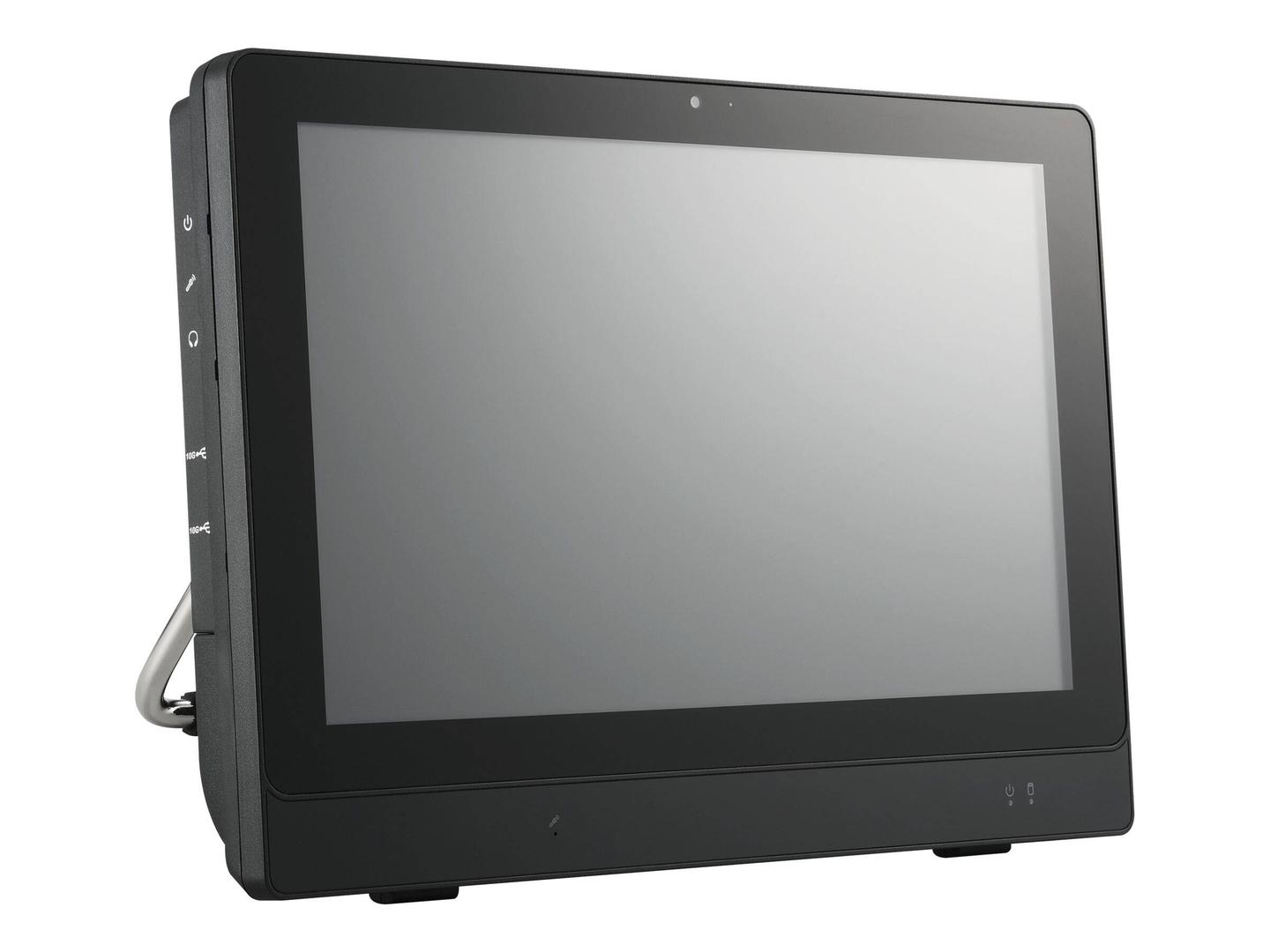

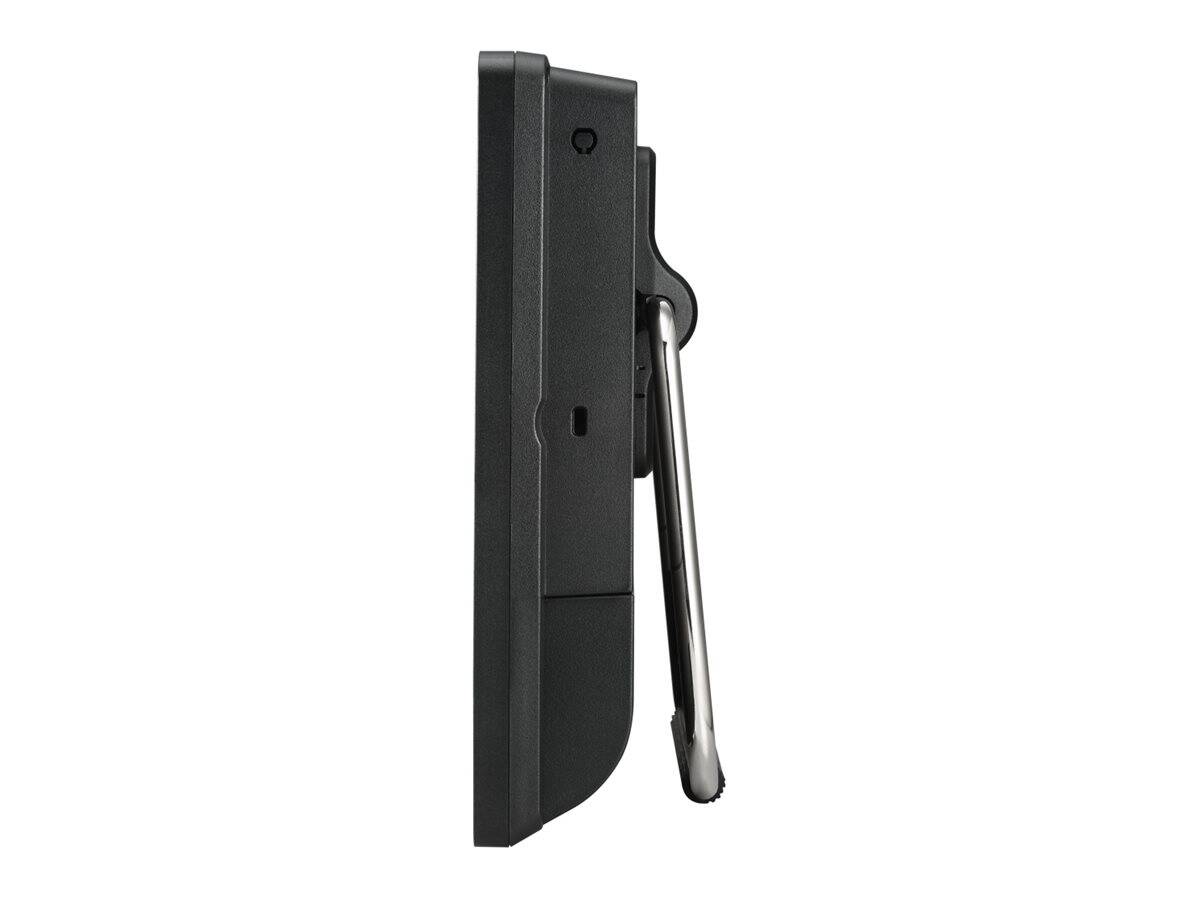

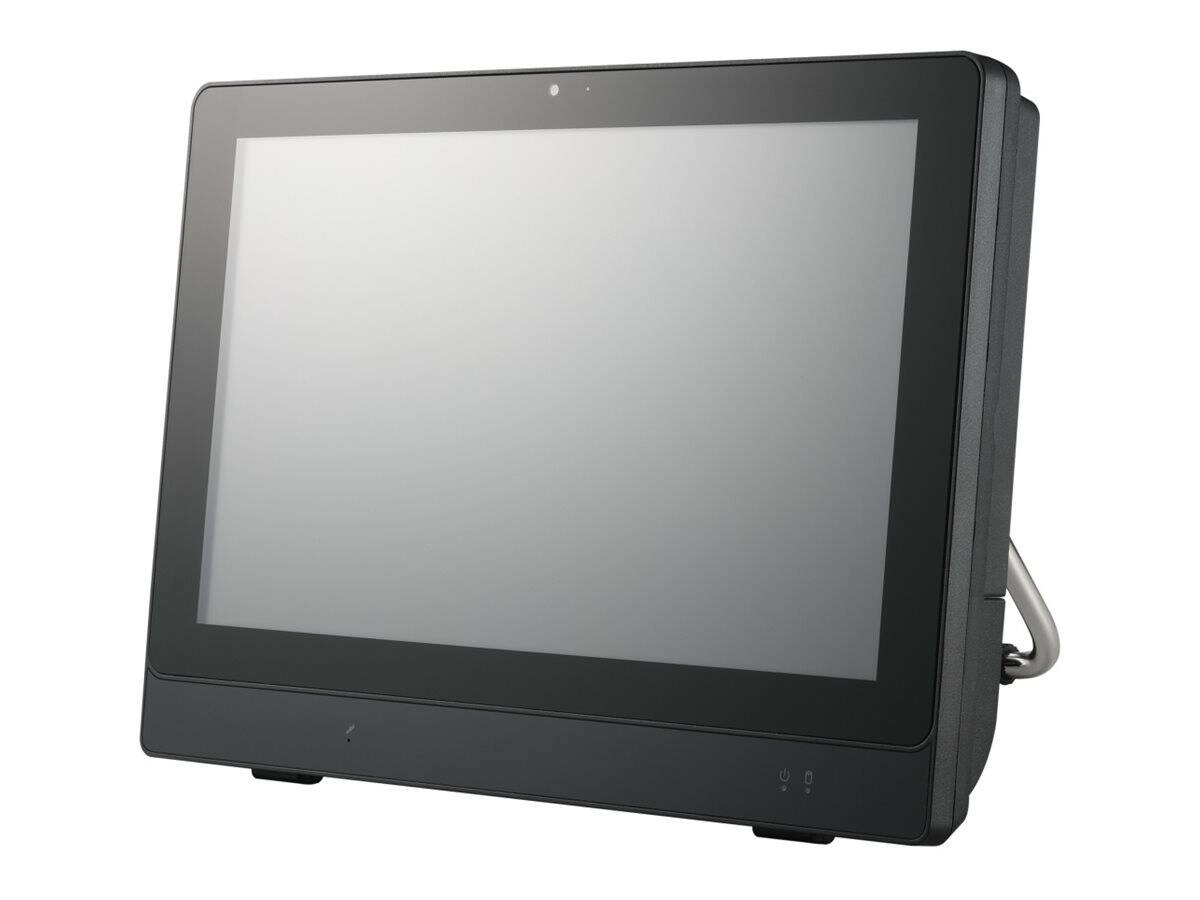

Shuttle XPC P25N / Barebone / all-in-one / 1 x N-series N100 / up to 3.4 GHz / RAM 0 GB / UHD Graphics / Gigabit Ethernet, 2.5 Gigabit Ethernet WLAN: / Bluetooth 4.2, 802.11a/b/g/h/n/ac / monitor: LED 11.6" 1366 x 768 (HD) touchscreen / black | P25N
Please sign in so that we can notify you about a reply
Product Specification
| Type | PC barebone |
| Product Form Factor | All-in-one - with frame stand |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel N-series (12th Gen) N100 |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | Cache Memory |
| Installed Size | 6 MB |
| Cache Per Processor | 6 MB |
| RAM | RAM |
| Installed Size | 0 GB / 16 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots | 1 (Total) / 1 (empty) |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | LED - TN |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 11.6" |
| Native Resolution | 1366 x 768 (HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 250 cd/m² |
| Monitor Features | 3 mm glass thickness, operable with gloves |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics |
| Max Monitors Supported | 2 |
| Audio Output | Audio Output |
| Sound Output Mode | Stereo |
| Compliant Standards | High Definition Audio |
| Speakers Included | 2 x right / left channel |
| Camera | Camera |
| Camera | Yes |
| Resolution | 1920 x 1080 |
| Audio Input | Audio Input |
| Type | Microphone |
| Networking | Networking |
| Ethernet Controller | Intel I226-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8821CE |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2, 2.5 Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (Key M, PCIe 3.0 x2 and SATA mode) |

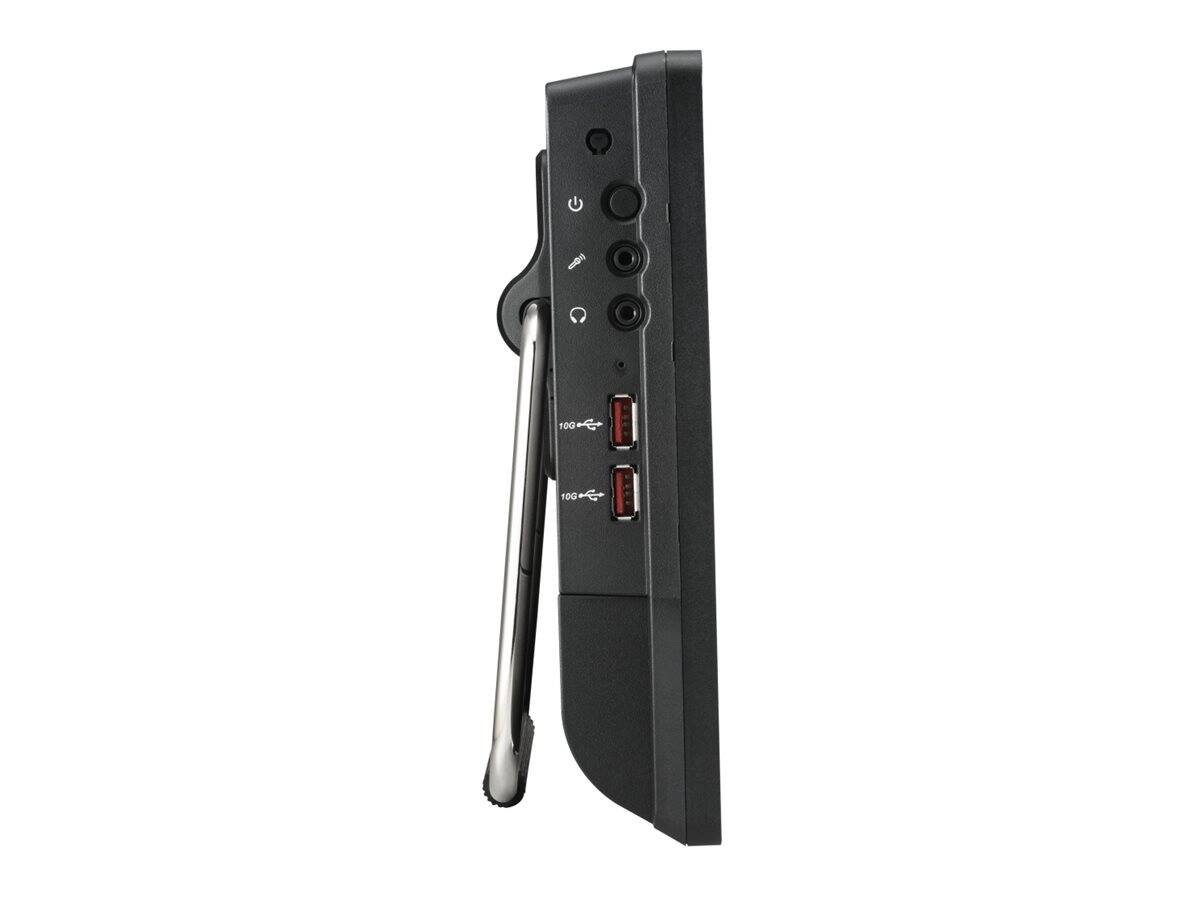

| Interfaces | 1 x HDMI (1 rear) ¦ 2 x USB 3.2 Gen 2 (2 side) ¦ 4 x USB 3.2 Gen 1 (4 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) (1 rear) ¦ 1 x VGA (1 rear) ¦ 2 x serial (2 rear) ¦ 1 x headphones - mini-jack (1 side) ¦ 1 x microphone - mini-jack (1 side) |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |

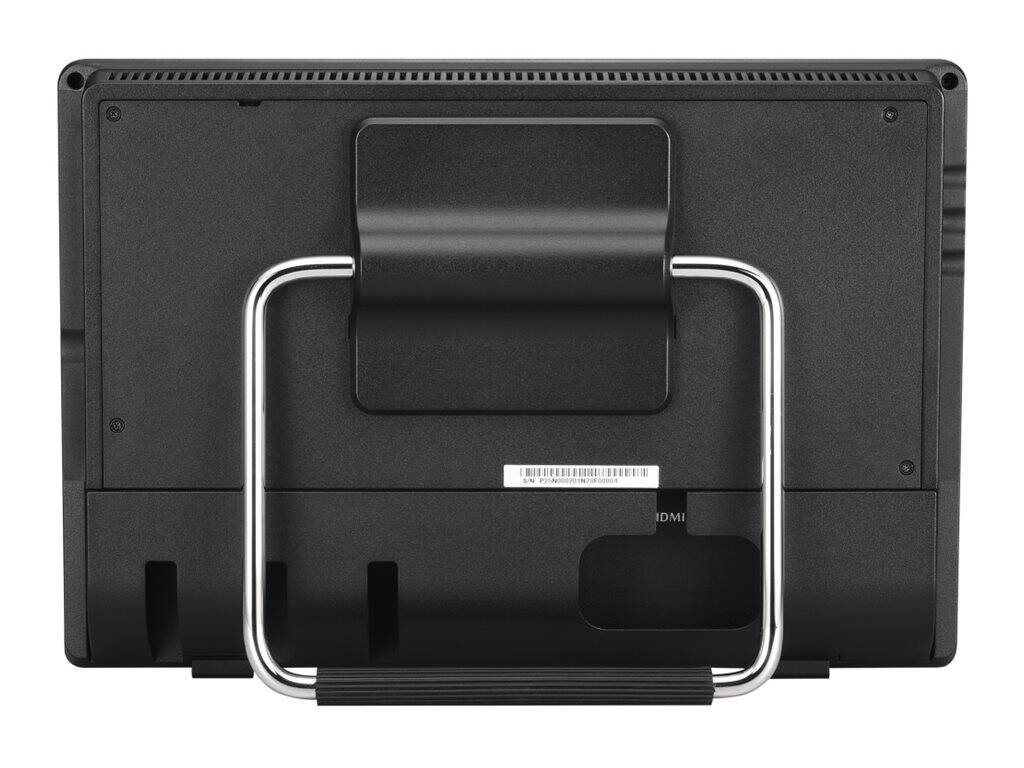

| VESA Mounting Interface | 75 x 75 mm |
| Compliant Standards | VCCI, BSMI, IEC 60950, FCC, RoHS, cTUVus, IP54, EMI, RCM, Energy-Related Products (ErP) Lot 3, CB 62368, UKCA |
| Power | Power |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 65 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Sustainability Information | Sustainability Information |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 29.9 cm |
| Depth | 5.9 cm |
| Height | 20.7 cm |
| Weight | 1.95 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 3.14 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% |
