Shuttle XPC slim DH670V2 - Barebone - Slim-PC - LGA1700 Socket - Intel H670 - no CPU - RAM 0 GB - UHD Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet - black | DH670V2
Please sign in so that we can notify you about a reply
Product Specification
| Type | PC barebone |
| Product Form Factor | Slim-PC |
| Built-in Devices | 2 x 60 mm fans |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Processor / Chipset | |
| CPU | No CPU |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1700 Socket |
| Chipset Type | Intel H670 |
| RAM | |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Max Monitors Supported | 4 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Networking | |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I225-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Expansion / Connectivity | |
| Bays | 1 (total) / 0 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 |

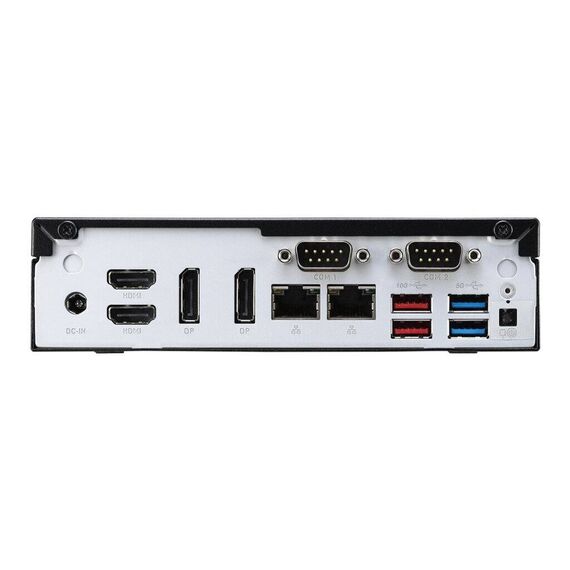

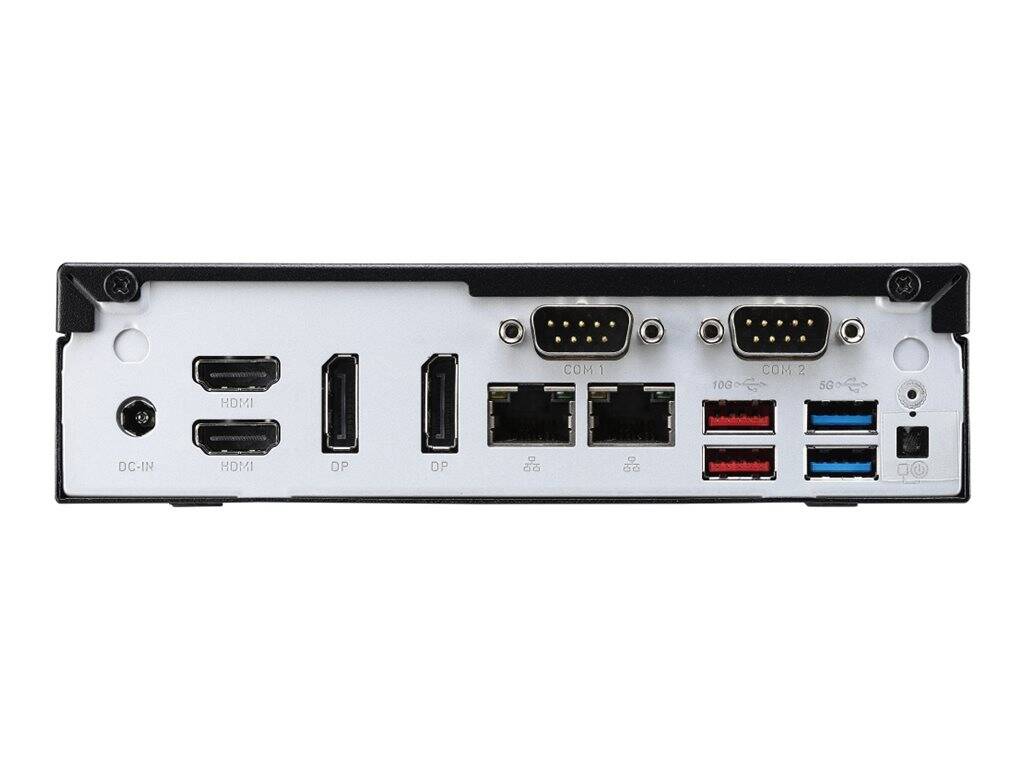

| Interfaces | 1 x microphone (1 front) ¦ 1 x headphones (1 front) ¦ 1 x USB-C 3.2 Gen 1 (1 front) ¦ 1 x USB 3.2 Gen 1 (1 front) ¦ 1 x USB 3.2 Gen 2 (2 front) ¦ 1 x serial (RS-232/422/485) (1 rear) ¦ 1 x serial (RS-232) (1 rear) ¦ 2 x HDMI (2 rear) ¦ 2 x DisplayPort 1.4 (2 rear) ¦ 2 x LAN (2.5Gigabit Ethernet) (2 rear) ¦ 2 x USB 3.2 Gen 2 (2 rear) ¦ 2 x USB 3.2 Gen 1 (2 rear) |
| Miscellaneous | |
| Included Accessories | CPU Heatsink, VESA mounting kit, power adapter, 4 x screws M3 x 5 mm, 4 x screws M4 x 10 mm, 4 x screws M3 x 4 mm, 2 x screws M3 x 5 mm, serial ATA cable, protection cap for CPU socket |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Compliant Standards | VCCI, BSMI, CB, FCC, RoHS, ETL, ERP, RCM |
| Power | |
| Device Type | Power adapter |
| Power Provided | 120 Watt |
| Operating System / Software | |
| OS Provided | No operating system |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Dimensions & Weight | |
| Width | 16.5 cm |
| Depth | 19 cm |
| Height | 4.3 cm |
| Weight | 1.3 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.1 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
