Shuttle XPC slim XH310RV / Barebone / Slim-PC / LGA1151 Socket / Intel H310 / GigE | PIB-XH310RV11
Description
Designed for use as a space-saving media player, the XH310V is a great value to versatile applications. These slim sized media players deliver better performance and are able to fulfill needs for demanding tasks. With a selection of video outputs, users can have better flexibility to run simultaneous dual displays.
Shuttle XPC slim XH310RV / Barebone | PIB-XH310RV11
Special Features
- Dual display productivity
- Flexible storage expansion
- High-speed Gigabit LAN
- 24/7 cooling technology
- Wide operating temperature
Product features
- Dual display productivity
Simultaneously support for dual displays with built-in HDMI, DisplayPort and VGA outputs, the XH310 series meets the productivity benefits and provides dynamic visualization for multitasking and digital signage applications. - Flexible storage expansion
The XH310 series is equipped with an ODD bay, allowing users to install additional storage and/or a slim line ODD. - High-speed Gigabit LAN
The XH310 series has built-in dual Gigabit LAN to provide high-speed data transfer capability and thus a better business networking integration. - 24/7 cooling technology
The XH310 series features Shuttle's exclusive heat-pipe cooling system with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine, which guarantees high stability, low noise and 24/7 operation. - Wide operating temperature
The XH310 series uses industrial capacitors in order to meet the environmental operation demands of commercial applications.
Product Specification
| Type | PC barebone |
| Product Form Factor | Slim-PC |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1151 Socket |
| Chipset Type | Intel H310 |
| Installed Size | 0 GB / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 3 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | No graphics |
| Sound Output Mode | 5.1 channel surround |
| Compliant Standards | High Definition Audio |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support, Teaming support |
| Bays | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 (Key B-M) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 |

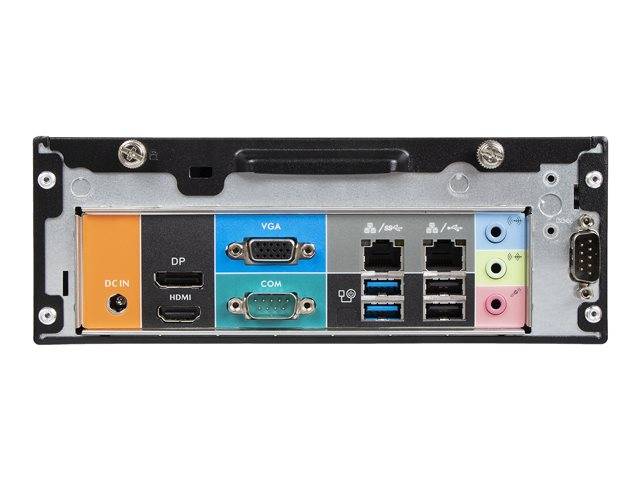

| Interfaces | 1 x microphone (1 in front) ¦ 1 x audio line-out/headphones (1 in front) ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 (2 front, 2 rear) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 2 x serial ¦ 1 x audio line-out ¦ 1 x audio line-out (center/subwoofer)/line-in ¦ 1 x audio line-out (rear)/microphone |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | C-Tick, BSMI, CB, FCC, RoHS, ETL, Energy-using Products (EuP) Lot 6, EMI, Directive 73/23/EWG, Directive 89/336/EWG |
| Device Type | Power adapter |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 90 Watt |
| OS Provided | No operating system |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 5.0 |
| Width | 20 cm |
| Depth | 23.8 cm |
| Height | 7.25 cm |
| Weight | 2.2 kg |
| Shipping Weight | 3.5 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - Shuttle - PIB-XH310RV21
More Details
Product Code
04:291808
EAN Code
887993001623
Manufacturer
Shuttle
