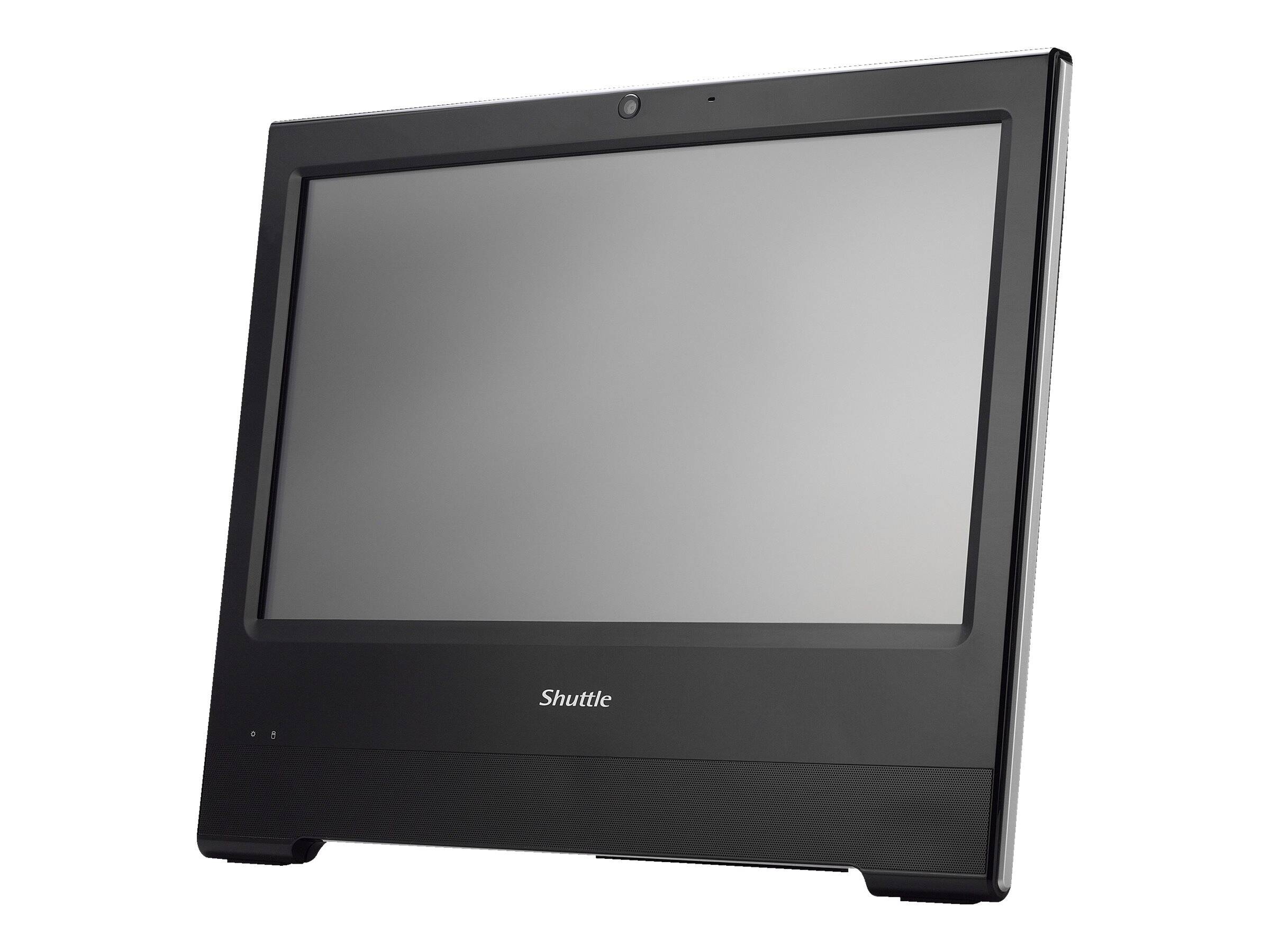

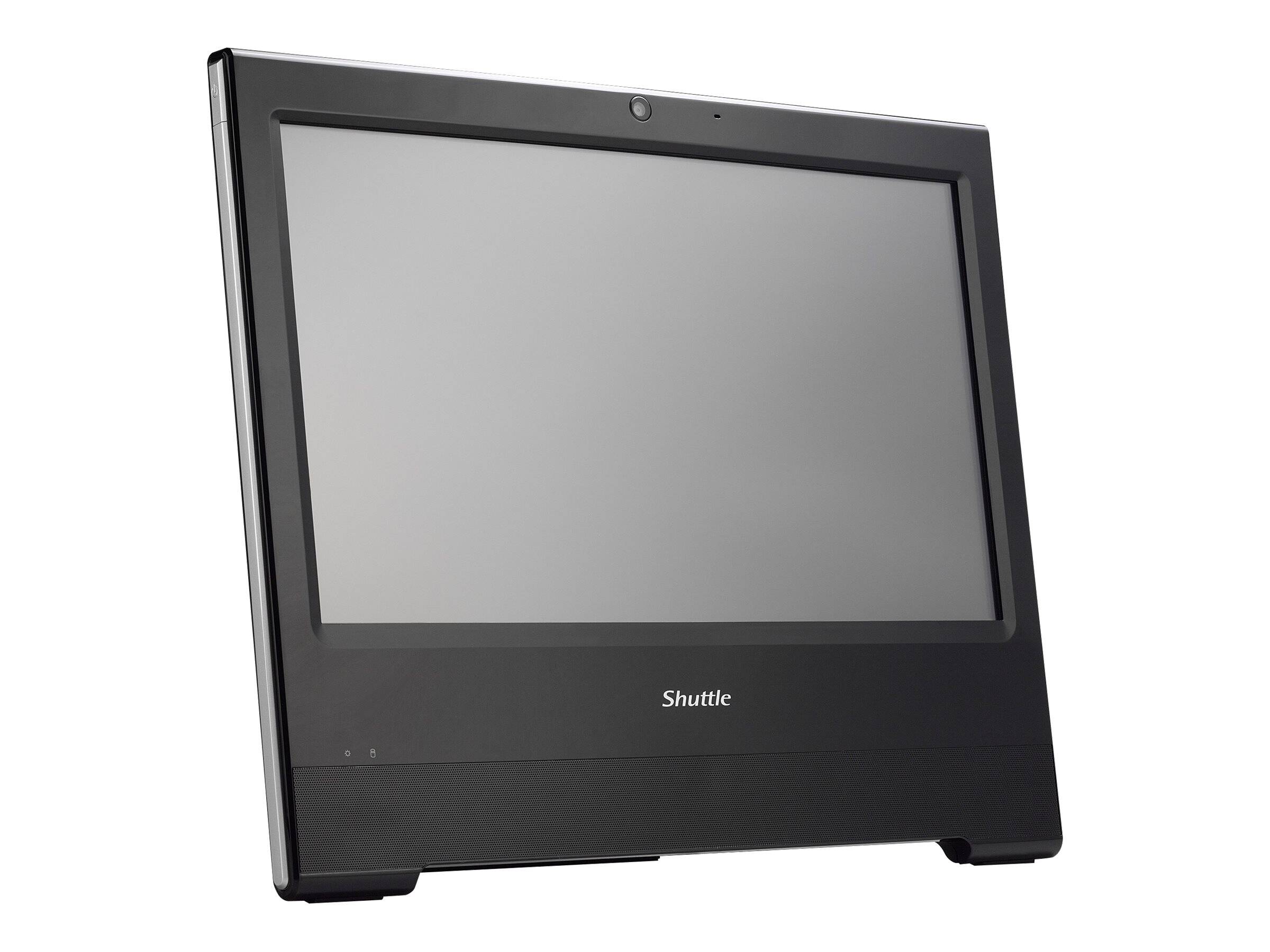

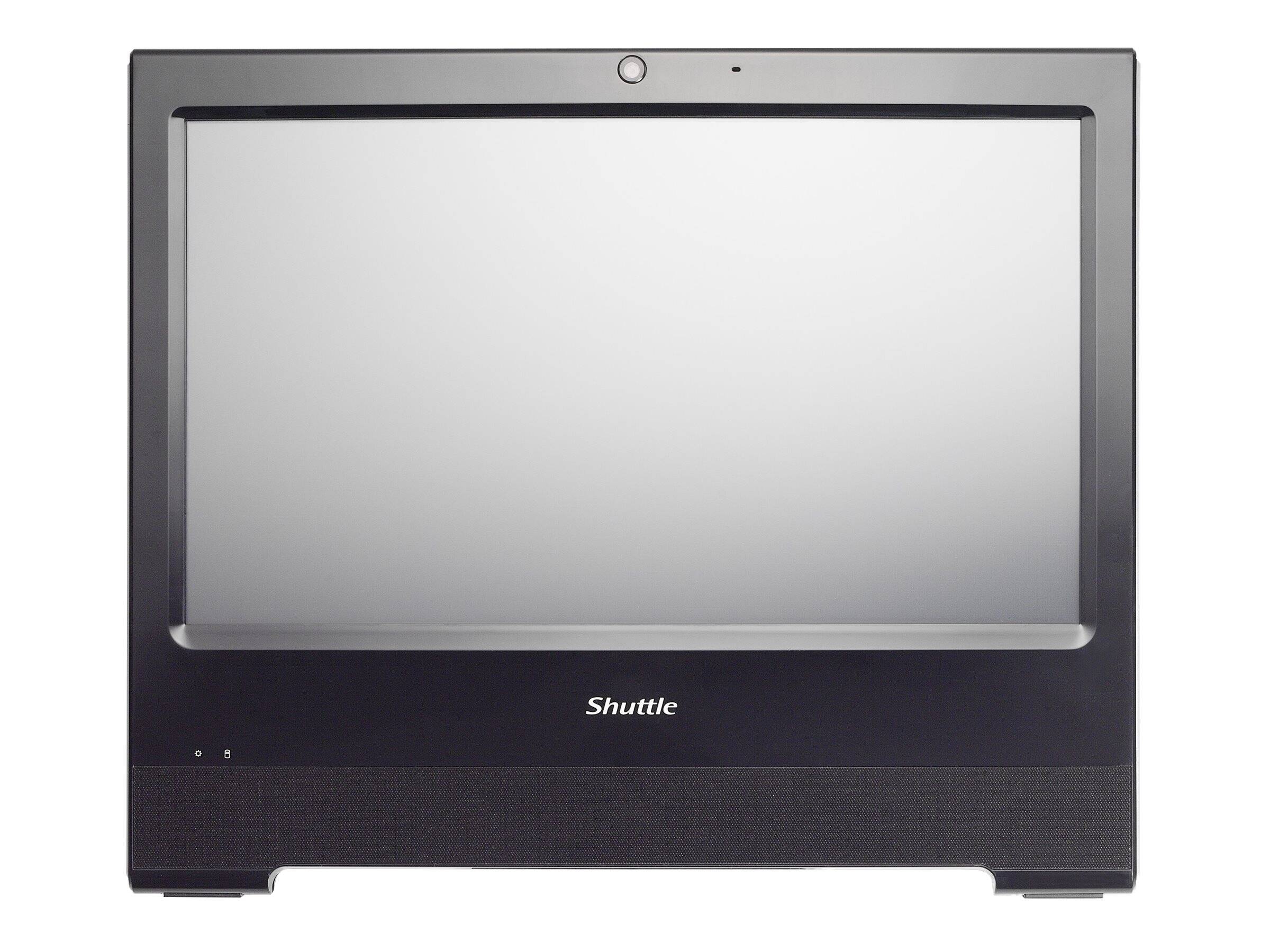

Shuttle XPC X50V8U3 / Barebone / all-in-one / 1 x Core i3 10110U / up to 4.1 GHz Ultra Low Power / RAM 0 GB / UHD Graphics / Gigabit Ethernet / monitor: LED 15.6" 1366 x 768 (HD) touchscreen / black | X50V8U3 BLACK
Shuttle XPC X50V8U3 / Barebone / all-in-one / 1 x Core i3 10110U / up to 4.1 GHz Ultra Low Power / RAM 0 GB / UHD Graphics / Gigabit Ethernet / monitor: LED 15.6" 1366 x 768 (HD) touchscreen / black | X50V8U3 BLACK
€808.41 inc. VAT
X50V8U3 BLACK
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Internal USB port
Dongles, 4G modems or any USB sticks can be plugged into an internal USB Type-A slot inside this model. In this way, they are protected against theft and manipulation. - Space for a 2.5" drive
This model also offers a home to classic data storage devices in 2.5" format. Hard disks and SSDs in this format offer many terabytes of storage space. - Flexible stand
The elegant yet solid stand can be adjusted continuously to achieve the ideal viewing angle and an ergonomic operating position. It can also be used as a carrying handle. - Add-ons via M.2 module
M.2 slots make it possible to add data mediums and additional modules, for example for wireless LAN or cellular modem. Thanks to the PCI Express connection, large quantities of data can be transported in a short time via the M.2 slot. - Connections for external screens
Thanks to an HDMI and VGA connection, the screen area of this model can be easily expanded. - 100% fanless
Energy-saving technology combined with an ingenious cooling system mean no fans are required. No operating noise at all, fewer moving parts and therefore lower maintenance costs. - Prepared for VESA mounts
A VESA mounting surface is hidden behind the cover of the stand. Wall mounts, movable arms and appropriately standardized mountings of all kinds can be mounted as an alternative to the stand, secured with four screws.
Special Fetures
- Internal USB port
- Space for a 2.5" drive
- Flexible stand
- Add-ons via M.2 module
- Connections for external screens
- 100% fanless
- Prepared for VESA mounts
Product Specification
| Type | PC barebone |
| Product Form Factor | All-in-one |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Processor / Chipset | |
| CPU | Intel Core i3 (10th Gen) 10110U |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Power Efficiency | Ultra Low Power |
| Cache Memory | |
| Installed Size | 4 MB |
| Cache Per Processor | 4 MB |
| RAM | |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Unbuffered |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Storage Controller (2nd) | |
| Type | 1 x NVMe |
| Controller Interface Type | NVM Express |
| Channel Qty | 1 |
| Optical Storage | |
| Type | No optical drive |
| Card Reader | |

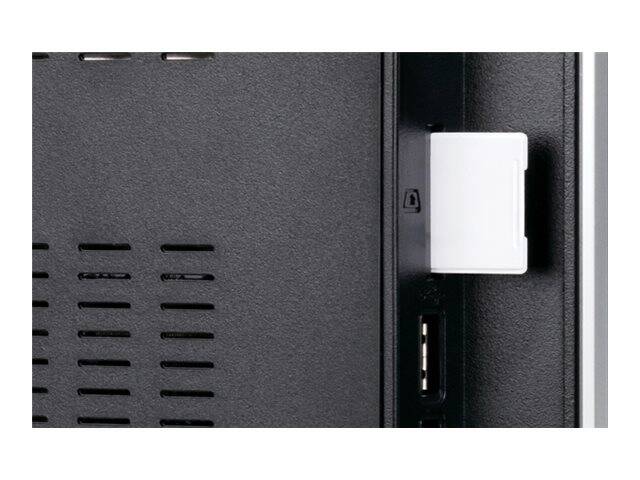

| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes |
| Diagonal Size | 15.6" |
| Native Resolution | 1366 x 768 (HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 220 cd/m² |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | VGA, HDMI |
| Audio Output | |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Camera | |
| Camera | Yes |
| Resolution | 1920 x 1080 |
| Audio Input | |
| Type | Microphone |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8821CE-CG |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Features | Wake on LAN (WoL), PXE support |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 (Key B-M) <br /> 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module) |

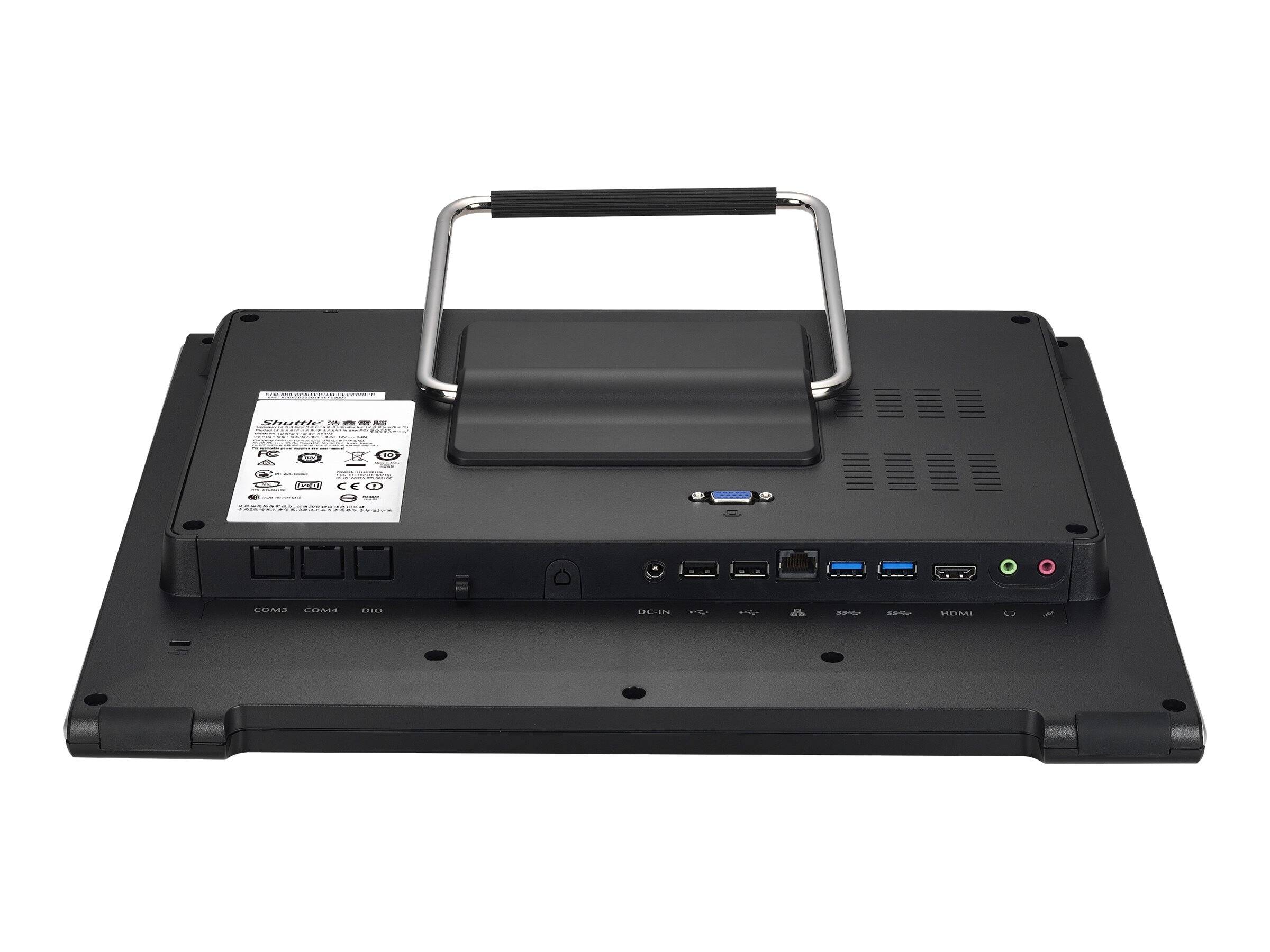

| Interfaces | 1 x HDMI <br /> 1 x VGA <br /> 2 x USB 2.0 <br /> 1 x LAN (Gigabit Ethernet) <br /> 1 x audio line-out/headphones - mini-jack <br /> 1 x microphone - mini-jack <br /> 4 x USB 3.2 Gen 1 |
| Miscellaneous | |
| Included Accessories | Screw set |
| Cables Included | Serial ATA cable |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm |
| Compliant Standards | BSMI, CB, FCC, RoHS, ETL, Energy-Related Products (ErP) Lot 6, IP54, EMI, ErP 2009/125/EC, EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 65 Watt |
| Operating System / Software | |
| OS Provided | No operating system |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| Dimensions & Weight | |
| Width | 39.1 cm |
| Depth | 4.2 cm |
| Height | 32.7 cm |
| Weight | 3.5 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 4.2 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% |
Features - Shuttle - X50V8U3 BLACK
CPU Type
- Intel Core i3
More Details
Product Code
CE92228
EAN Code
0887993005218
Manufacturer
Shuttle
