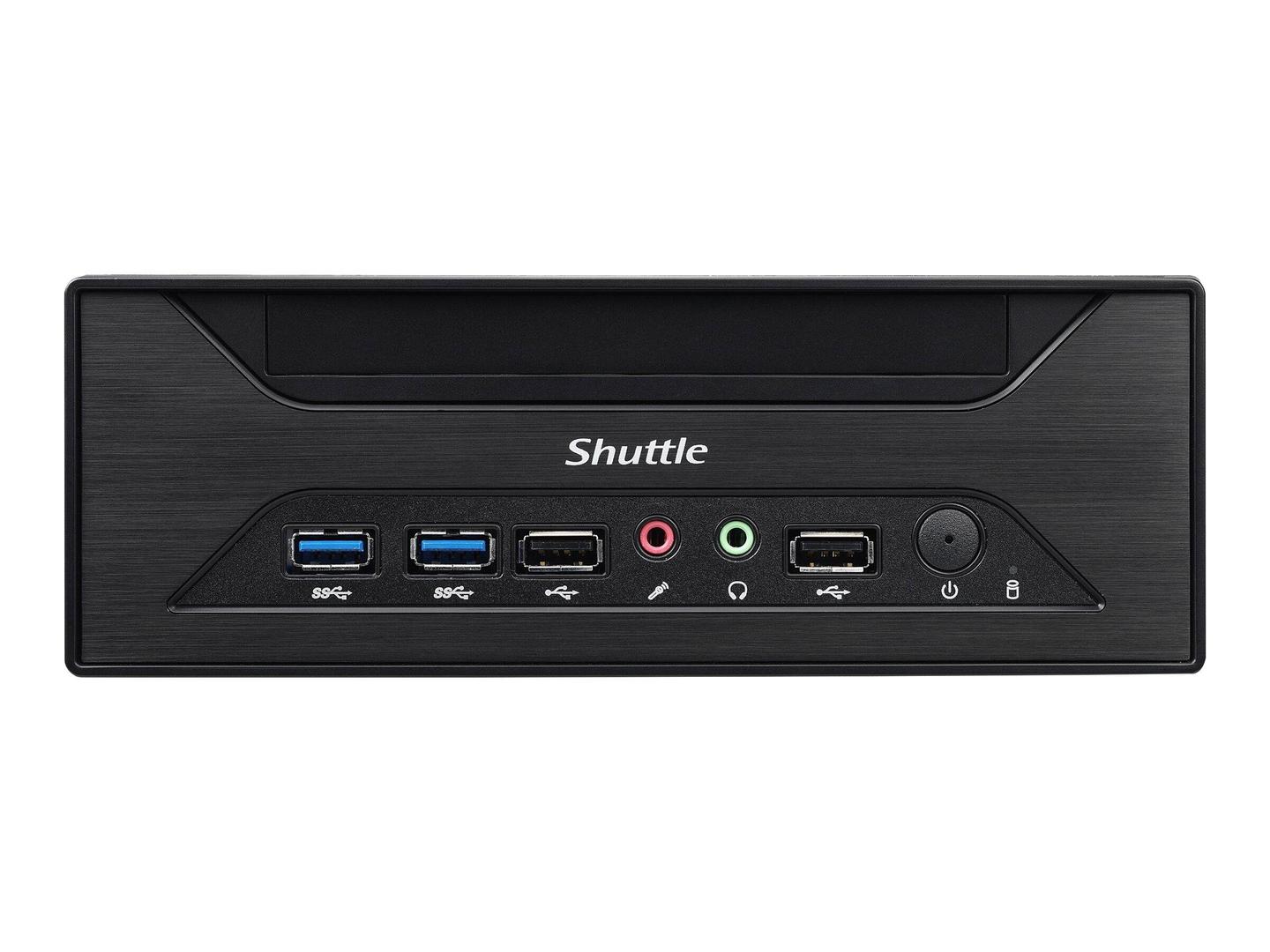

Shuttle XPC slim XH510G - Barebone - Slim-PC - LGA1200 Socket - Intel H510 - no CPU - RAM 0 GB - Gigabit Ethernet | XH510G
Please sign in so that we can notify you about a reply
Product Features
- Dual-display productivity
XH510G supports two displays simultaneously via one HDMI 2.0 and one DisplayPort 1.4, providing productivity benefits and dynamic visualization for industrial and commercial applications. - Integrated PCI-E x16 slot
The built-in PCI-e x 16 expansion slot can be installed in various add-on cards such as capture card, sound card, USB card, RS232 card, PoE card, digital I/O card, and more. - Strong expansion capacity with M.2
XH510G is equipped with couple of M.2 slots. Two M.2 2280 Type M for the user to expand storage or device. One M.2 2230 Type E slot for installing Wi-Fi and Bluetooth modules provides higher transmission bandwidth. - Powerful connectivity with high-speed Gigabit LAN
The XH510G provides four USB 3.2 Gen 1, four USB 2.0, a SATA Gen 3.0, and a built-in Intel Gigabit LAN that supports Wake on LAN to provide high-speed data transfer capability. - Exclusive cooling technology
XGH510G features Shuttle's exclusive heat pipe cooling module with a smart fan design. The precise vent design allows constant air circulation between inside and outside of the machine, resulting in high stability and low noise for 24/7 long-term operation.
Special Fetures
- Dual-display productivity
- Integrated PCI-E x16 slot
- Strong expansion capacity with M.2
- Powerful connectivity with high-speed Gigabit LAN
- Exclusive cooling technology
Product Specification
| Type | PC barebone |
| Product Form Factor | Slim-PC |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1200 Socket |
| Chipset Type | Intel H510 |
| RAM | |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | No graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Networking | |
| Ethernet Controller | Intel I219 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL) |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe x1 ¦ 1 (total) / 1 (free) x M.2 Card - 2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (Key A-E) |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 4 x USB 3.2 Gen 1 (2 front, 2 rear) ¦ 1 x microphone (1 front) ¦ 1 x headphones (1 front) ¦ 1 x LAN (Gigabit Ethernet) |
| Miscellaneous | |
| Included Accessories | VESA mounting kit, screw set |
| Compliant Standards | DisplayPort 1.4 |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Power Provided | 180 Watt |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | Drivers & Utilities |
| Dimensions & Weight | |
| Width | 20 cm |
| Depth | 25 cm |
| Height | 7.85 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
Features - Shuttle - XH510G
More Details
Product Code
CF89487
EAN Code
0887993005041
Manufacturer
Shuttle
