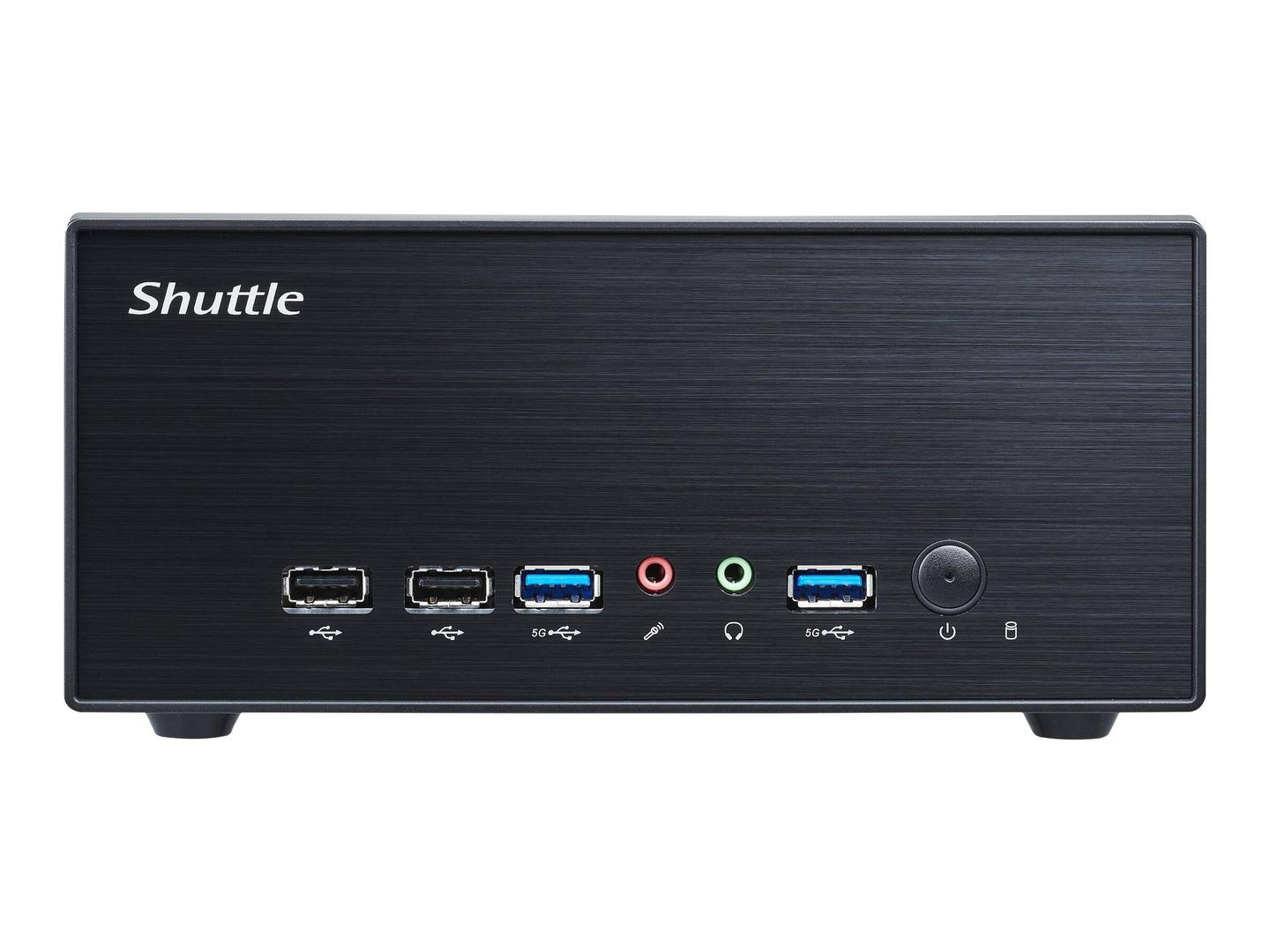

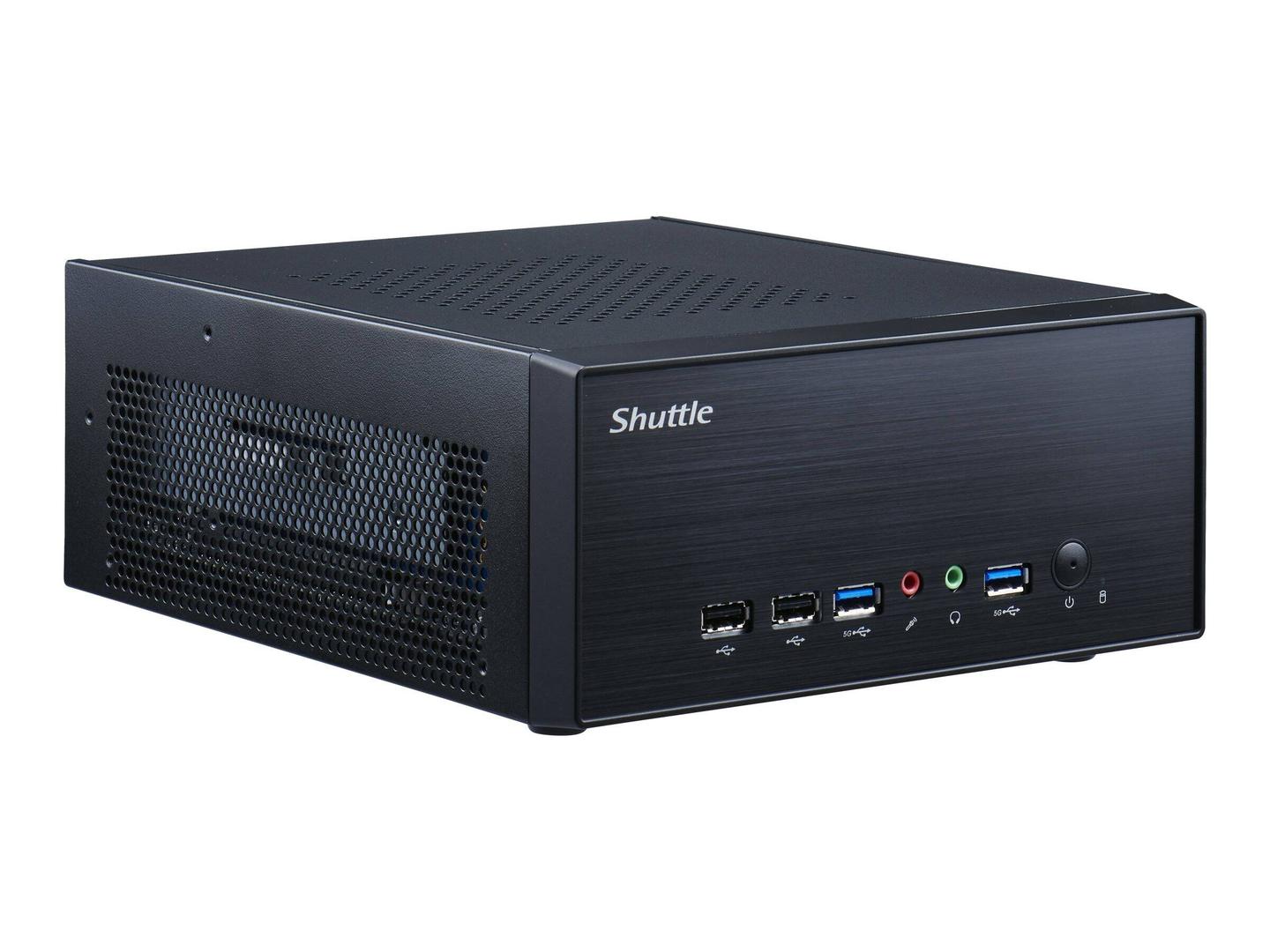

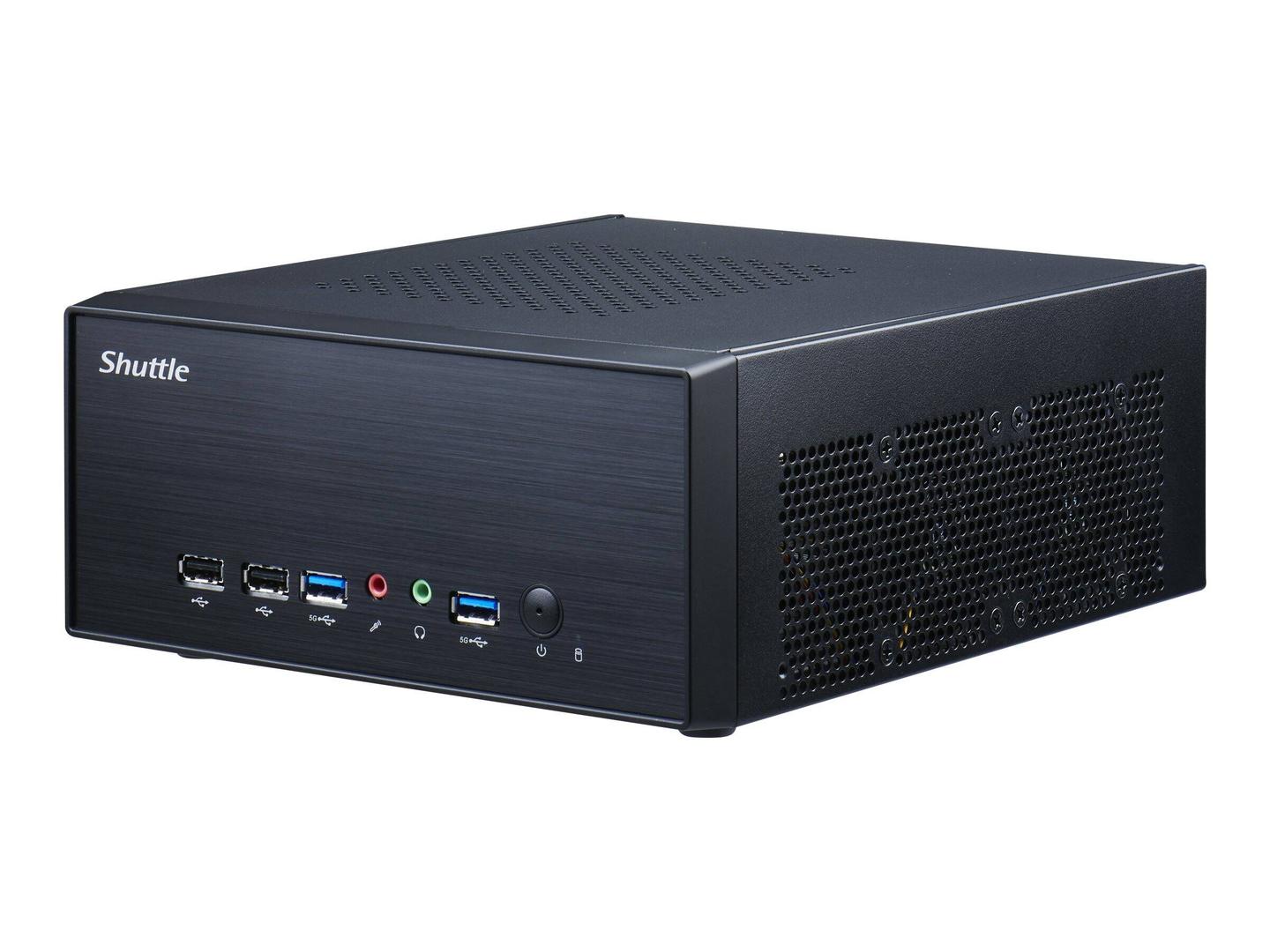

Shuttle XPC slim XH510G2 - Barebone - Slim-PC - LGA1200 Socket - Intel H510 - no CPU - RAM 0 GB - Gigabit Ethernet | XH510G2
Please sign in so that we can notify you about a reply
Product Features
- Dual display productivity
XH510G2 supports two independent displays via one HDMI 2.0 and one DisplayPort 1.4, providing productivity benefits and dynamic visualization for multitasking applications. - Integrated dual PCI-E slots with one PCI-E x 16
Despite a small volume, XH510G2 supports dual PCI-E expansion slots, with one PCI-E x 16 and one PCI-E x 1. The built-in PCI-E x 16 slot can be easily set up for any external expansion card to meet diverse applications. - Rich connectivity with high-speed Gigabit LAN
XH510G2 provides 4x USB 3.2 Gen 1, 4x USB 2.0, and SATA gen 3.0. Additionally, an Intel Gigabit LAN is included in the model to provide high-speed data transfer capability and thus a better business networking integration. - Exclusive cooling technology
XH510G2 features Shuttle's exclusive heat-pipe cooling system with a smart fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation. XH510G2 adopts industrial capacitors to meet the 0 - 50 °C environmental operation demands of commercial applications.
Special Fetures
- Dual display productivity
- Integrated dual PCI-E slots with one PCI-E x 16
- Rich connectivity with high-speed Gigabit LAN
- Exclusive cooling technology
Product Specification
| Type | PC barebone |
| Product Form Factor | Slim-PC |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1200 Socket |
| Chipset Type | Intel H510 |
| RAM | |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | No graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Networking | |
| Ethernet Controller | Intel I219 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL) |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe x16 ¦ 1 (total) / 1 (free) x PCIe x1 ¦ 2 (total) / 2 (free) x M.2 Card - 2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (Key A-E) |

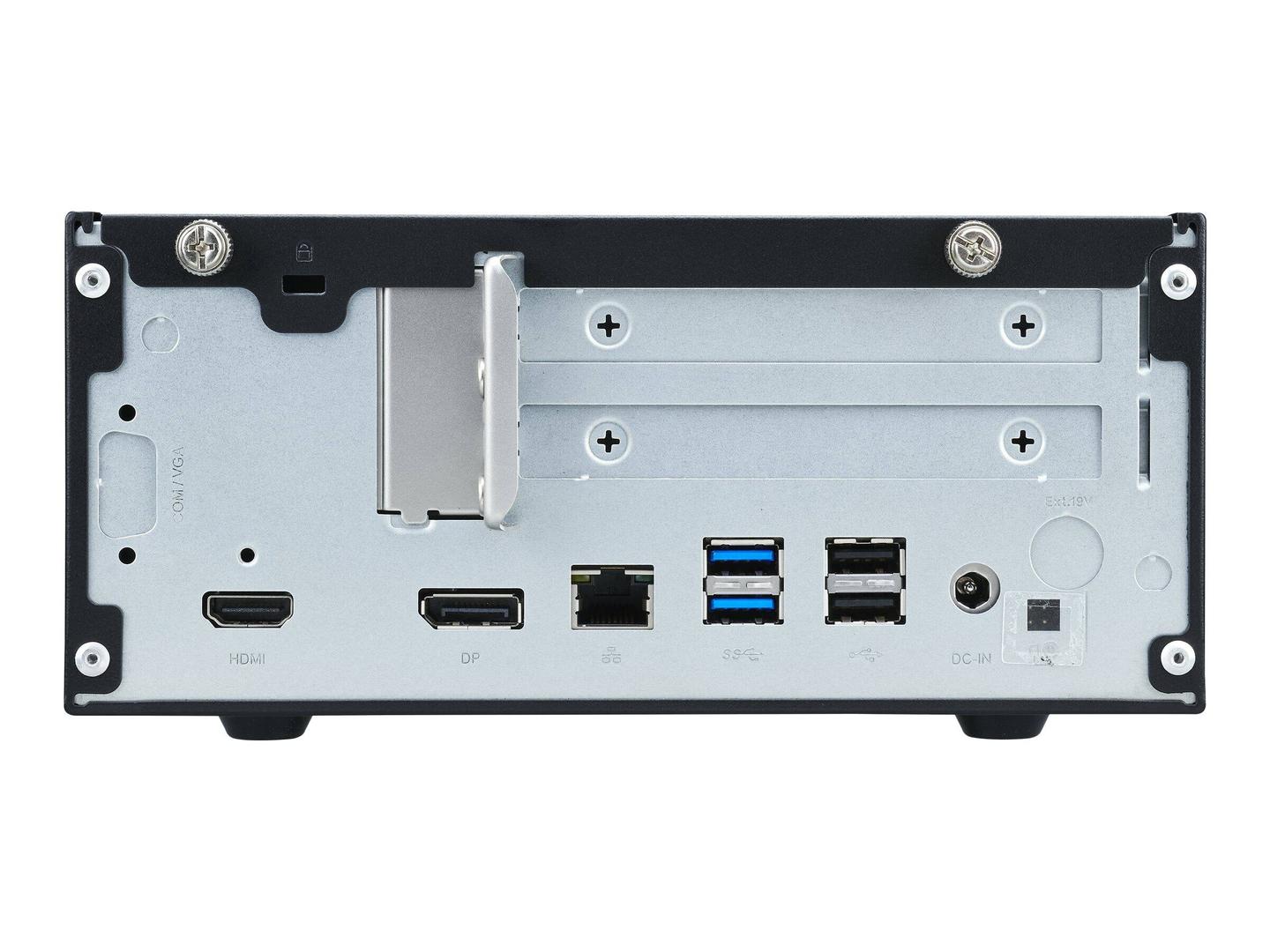

| Interfaces | 1 x microphone (1 in front) ¦ 1 x audio line-out (1 in front) ¦ 4 x USB 3.2 Gen 1 (2 front, 2 rear) ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 (2 front, 2 rear) |
| Miscellaneous | |
| Included Accessories | VESA mounting kit, screw set |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Power Provided | 180 Watt |
| Dimensions & Weight | |
| Width | 20 cm |
| Depth | 25 cm |
| Height | 9.5 cm |
Features - Shuttle - XH510G2
More Details
Product Code
CE93509
EAN Code
0887993004198
Manufacturer
Shuttle
