SocketScan S740 / 700 Series / Charging Stand / barcode scanner / portable / 2D imager / decoded / Bluetooth 2.1 EDR | CX3535-2137
SocketScan S740 / 700 Series / Charging Stand / barcode scanner / portable / 2D imager / decoded / Bluetooth 2.1 EDR | CX3535-2137
Description

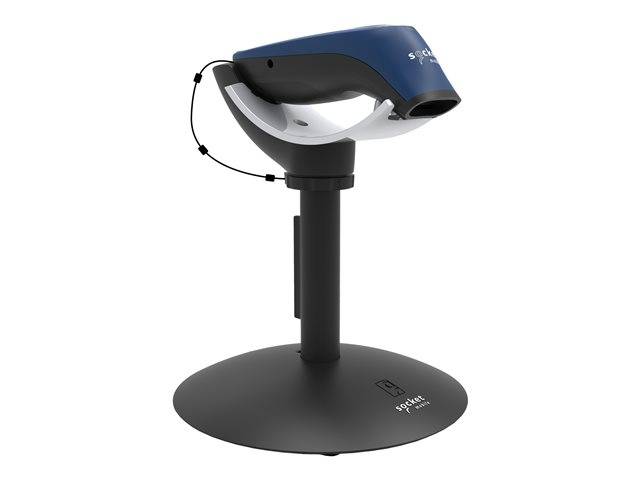

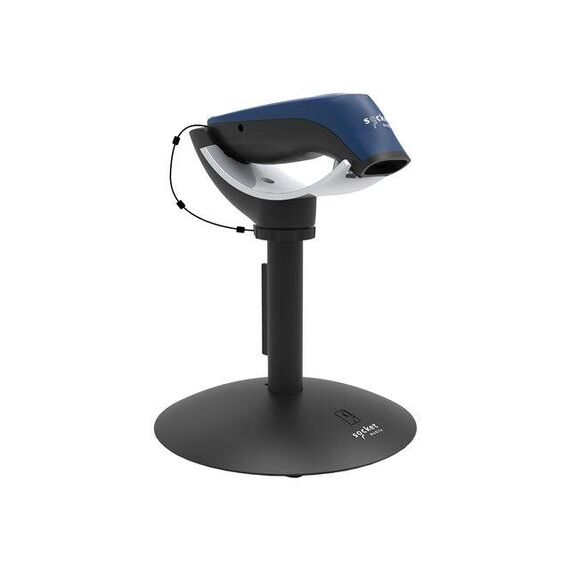

The SocketScan S740 universal barcode scanner has Bluetooth wireless technology and comes with a Charging Stand to conveniently charge and store the scanner. The SocketScan S740 scans either 1D or 2D barcodes on paper or screen. Compatible with all operating systems, including Apple, Android, Windows. It has a lightweight, ergonomic construction, and a long-lasting battery to survive entire work days. The lights for battery, Bluetooth and scanning notifications make the scanner more intuitive to use. With the Charging Stand, Socket Mobile's 700 series has a home to charge and attached cable to keep the scanner and charging stand together.
SocketScan S740 / 700 Series | CX3535-2137
Special Features
- Ergonomic and light weight - fits comfortably in the palm of your hand
- Made with antimicrobial material for protection against potential harmful microbes
- Battery Friendly technology enables battery lasting a full work shift
- Robust Bluetooth wireless technology connectivity for long range cordless freedom
Product Specification
Type | Barcode scanner - portable |
Colour | Blue |
Interface Type | Bluetooth 2.1 EDR |
Minimum Bar Width | 5 mil |
Scan Element Type | 2D imager - LED |
Sensor Resolution | 640 x 480 |
Light Source Wave Length | 660 nm |
Max Working Distance | 49.5 cm |
Print Contrast Signal (PCS) | 25% |
Decode Capability | Code 93, Matrix 2 of 5, Code 39, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, Bookland, EAN/JAN-8, EAN/JAN-13, UPC-A, Discrete 2 of 5, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, PDF417, Data Matrix, Australian Post, UPC-E0, ISSN, Micro QR code, GS1 DataBar Expanded, GS1 DataBar Limited, MSI, GS1-128, Chinese 2 of 5, Composite AB, Composite C, UPC/EAN/JAN Composites |
TTL Decoding | Decoded |
Connectivity Technology | Wireless |
OK Notification | Beeper, LED indicator, vibration |
Features | Antimicrobial protection, Human Interface Device Profile (HID), Serial Port Profile (SPP), MFi-Serial Port Profile (MFi-SPP) |
Wireless Connectivity | Bluetooth 2.1 EDR |
Included Accessories | Stand, wrist strap |
Compliant Standards | C-Tick, EN55022, ICES-003, EN55024, Bluetooth Class 2, CISPR 22, RSS-210, RoHS, UL 60950-1, IEC 60950-1, WEEE, TELEC, SRRC, EN 50581, CAN/CSA C22.2, IEC/EN 62471, FCC-ID, FCC Part 15 Class C |
Battery | Nickel Metal Hydride - AA type |
OS Required | Apple MacOS, Android, Apple iOS, Microsoft Windows 7 / 8 / 10 |
Width | 3.71 cm |
Depth | 4.01 cm |
Height | 13.22 cm |
Weight | 117 g |
Service & Support | Limited warranty - 1 year ¦ Limited warranty - charging stand - 90 days |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 45 °C |
Humidity Range Operating | 95% (non-condensing) |
Drop Specification | 1.22 m to concrete |
