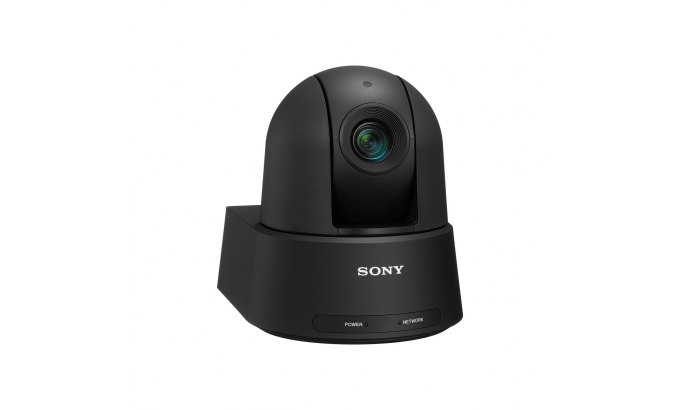

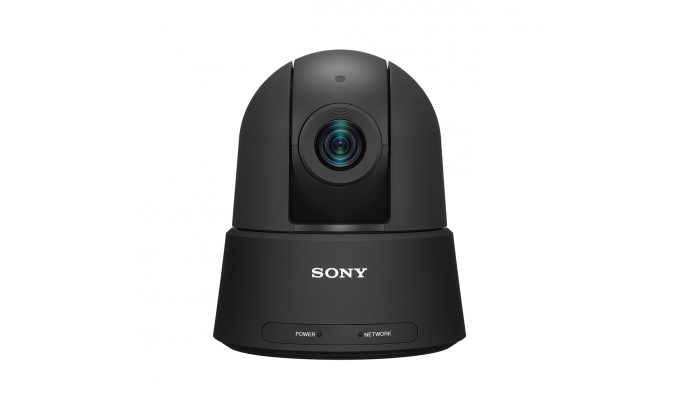

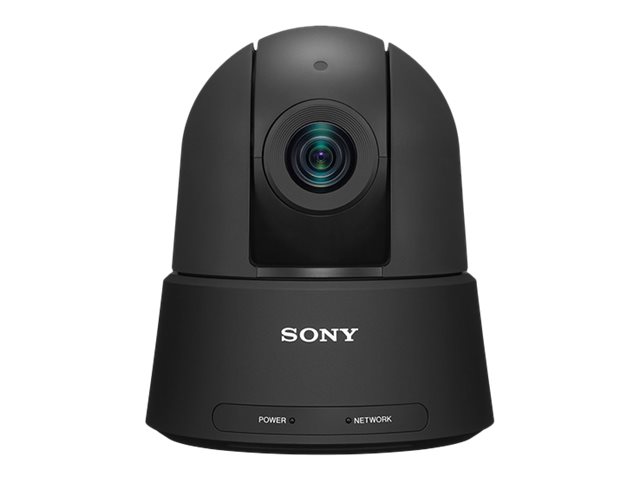

Sony SRG-A40 - Conference camera - PTZ - turret - colour (Day&Night) - 8.5 MP - 3840 x 2160 - auto iris - motorized - 1700 TVL - audio - SDI, HDMI - LAN - H.264, H.265 - PoE Plus Class 4 | SRG-A40BC

SRG-A40BC
4,834.50
(5,753.06 inc. VAT)
Availability: 1 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.Express DeliveryExpress delivery within 2 to 3 business days.
Find similar
Delivery
Payment options
Product CodeCG85107 EAN Code5013493458628 ManufacturerSony

Product Features

  • PTZ Auto Framing with built-in AI analytics
    This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves, the camera's pan/tilt/zoom mechanism ensures that the presenter is always framed naturally, without the need for a human camera operator to manually follow their movements.
  • Automatically and reliably shoots video for you
    With Sony's newly developed AI analytics algorithm, it detects and tracks the subject, even when there are several people in the frame.
  • Choice of three shooting modes
    The camera has a choice of three shooting modes; Full body, Waist, and Close-up. In each mode, you can select the center, left, or right angle of view, and the SRG-A40 can automatically track the subject in the selected optimal position.
  • Integrated tally lamp

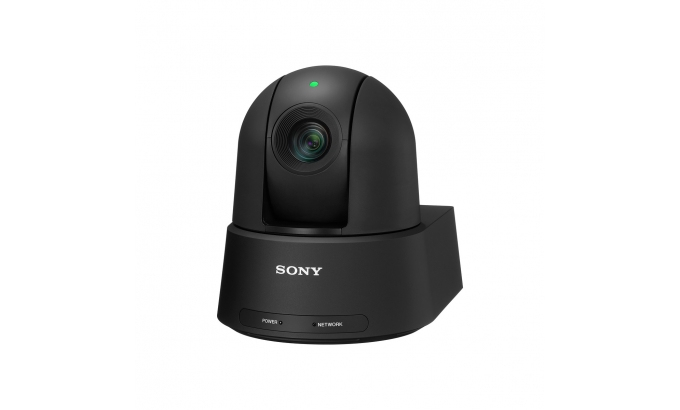

    The SRG-A40 features a built-in tally lamp, just like you'd find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status, or to show that PTZ Auto Framing mode is active. The lamp color will change from Red (On Air) to Green (PTZ Auto Framing ON).
  • Remote control of PTZ operation
    Pan/Tilt/Zoom camera movements and other functions can all be precisely controlled using the supplied IR remote controller, for convenient wireless control of PTZ functions without needing additional equipment.
  • Convenient control from PC or tablet
    Camera functions can also be controlled remotely from a networked PC or tablet using the intuitive Web App.

Special Fetures

  • High speed pan/tilt
  • Wide angle zoom lens
  • Clear Zoom
  • 4K Exmor R sensor
  • Preset camera positions
  • Picture Freeze Preset
  • AF, AE and AWB
  • PTZ Motion Sync

Product Specification

Device TypeConference camera
Audio SupportYes: 2ch audio support
Audio FormatsAAC-LC
Form FactorTurret
Camera Mount TypeSurface mount, ceiling mount
Connectivity TechnologyWired
Width15.67 cm
Depth20 cm
Height18.4 cm
Weight2 kg
Camera
TypeColour - Day&Night - pan / tilt / zoom
Digital Video FormatH.264, H.265
Horizontal Resolution (TV Lines)1700
Max Digital Video Resolution3840 x 2160
Video Modes1080/50i, 720/50p, 1080/50p, 1080/30p, 1080/25p, 2160/25p, 1080/59.94i, 1080/59.94p, 720/59.94p, 1080/23.98p, 2160/23.98p, 2160/29.97p
Digital Zoom80
Exposure Range1/1 sec - 1/10000 sec
Minimum Illumination1.6 lux F2.0 - 50 IRE - shutter 1/30 sec
Digital Video Capture Resolution1280 x 720, 1920 x 1080, 640 x 360, 3840 x 2160
Frame Rate (max)59.94 frames per second
FeaturesWhite balance, image stabilizer, image flip, Visibility Enhancer, 256 preset positions, Clear Image Zoom, Variable Bitrate (VBR), Constant Bitrate (CBR), exposure control, tally light, PTZ Motion Sync, Flicker Cancel, Picture Freeze Preset, Picture Setting File, standby mode, auto ICR, remote standby, AI-powered, PTZ Auto Framing
Image Sensor
Type8.5 MP Exmor R CMOS 1/2.5"
Lens Construction
TypeMotorized zoom
Optical Zoom20 x
Focal Length4.4 mm - 88 mm
Lens IrisF/2.0-3.8 auto iris
Focus AdjustmentAutomatic, manual
Min Focus Distance8 cm
Horizontal Field of View (degree)70
Panning
Range (degree)-170 to +170
Speed (degree/sec)Up to 300
Tilting
Range (degree)-20 to +90
Speed (degree/sec)Up to 126
Interfaces
VideoSDI, HDMI
Network InterfaceLAN
Network ProtocolsDHCP, DNS, HTTP, TCP/IP, UDP/IP, ARP, ICMP, RTSP, RTP, HTTPS, IPv4, IPv6, RTCP, NDI HX, SRT
Control InterfaceVISCA
Expansion / Connectivity

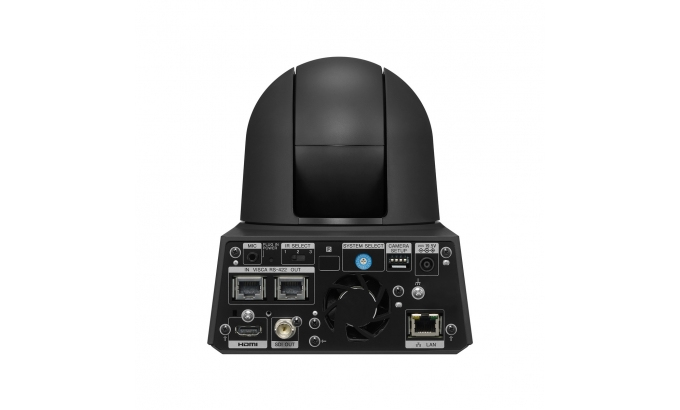

PortsHDMI output - HDMI Type A ¦ 3G-SDI output - BNC ¦ LAN/power - RJ-45 ¦ VISCA input - RJ-45 ¦ VISCA output - RJ-45 ¦ Microphone - 3.5 mm stereo jack
Miscellaneous
Included AccessoriesRemote control, wire rope, ceiling mount bracket, power adapter, 9 screws M3x8, screw M2.6x6, HDMI cable fixing plate
Compliant StandardsIEEE 802.3bt
ColourBlack
Power
Power RequirementsPoE Plus Class 4
Power DevicePower adapter / PoE
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature40 °C
