18U 4-Post Open Frame Server Rack — adjustable depth
18U, 19″56–101.7 cm depth544 kg loadCasters & feet included

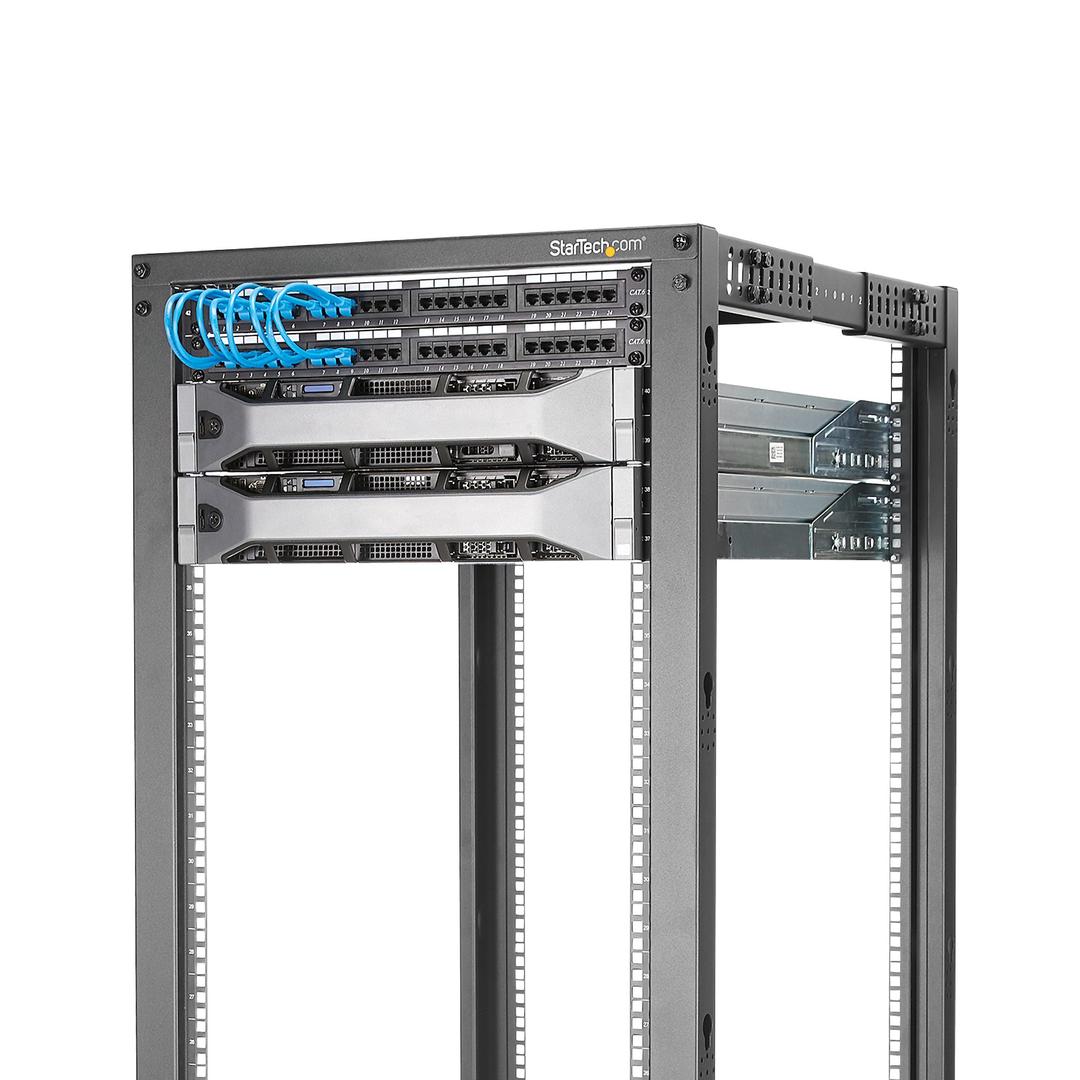

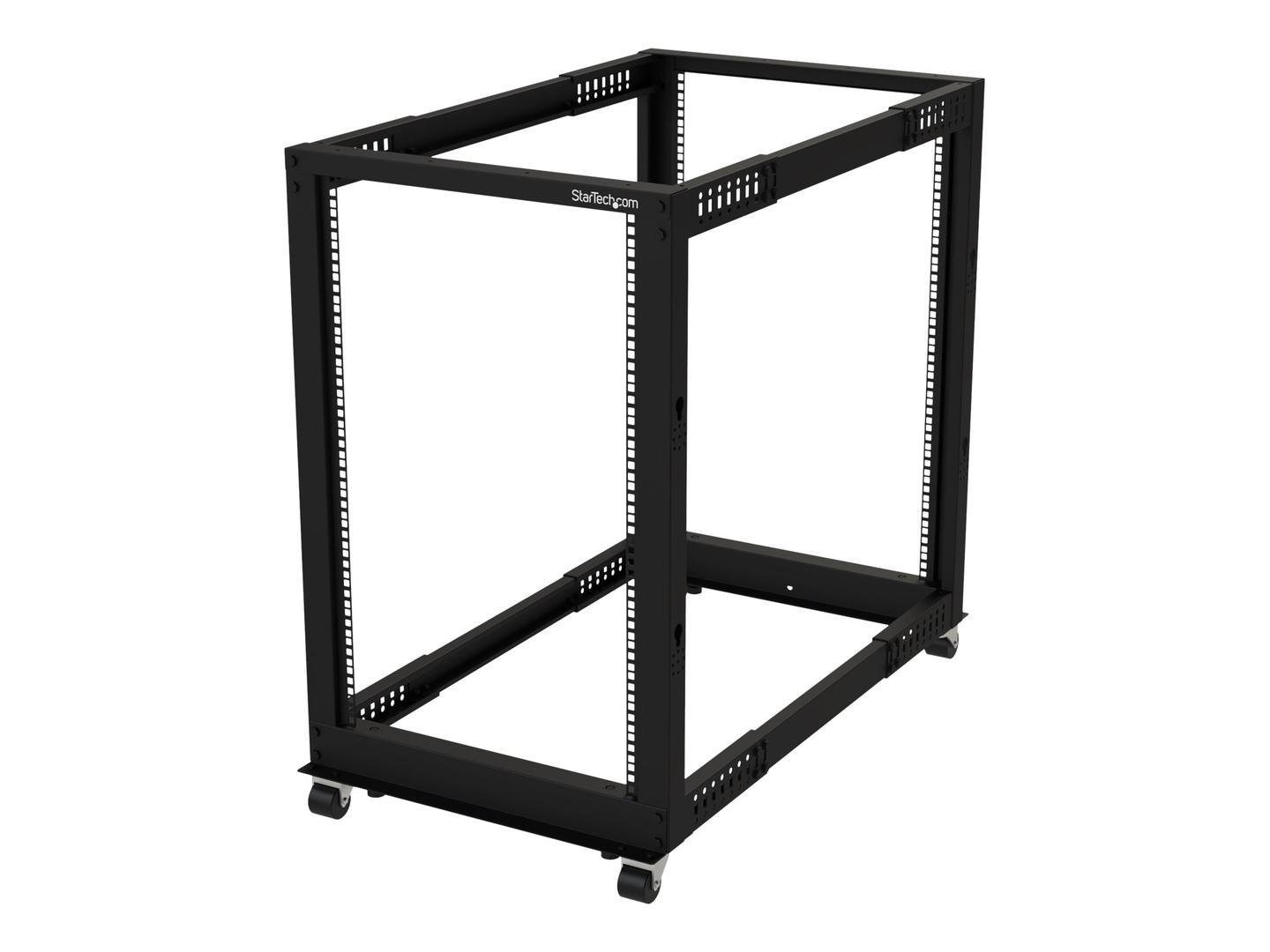

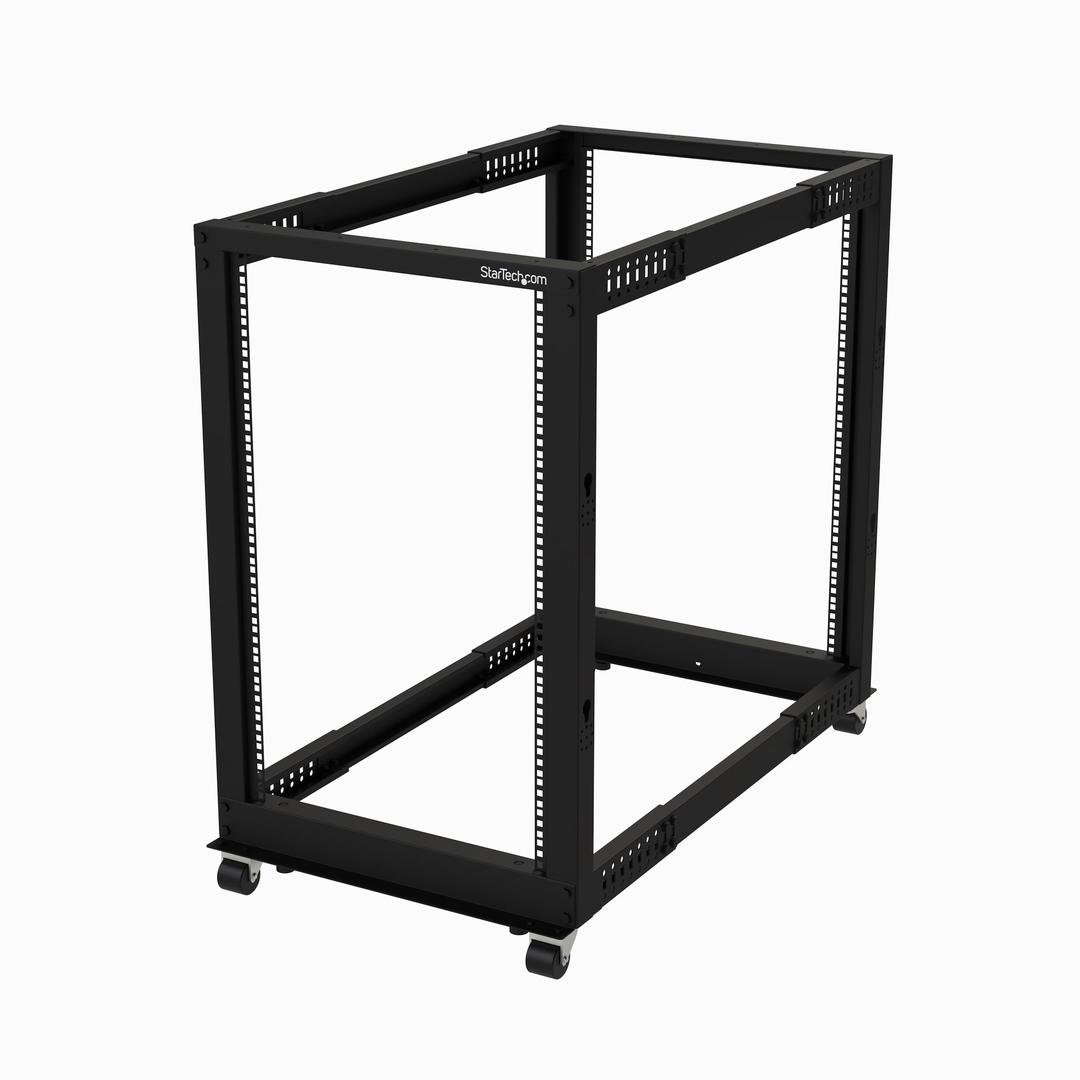

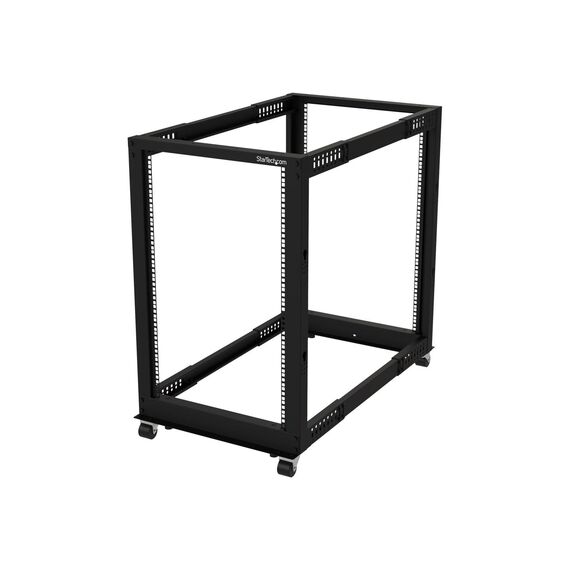

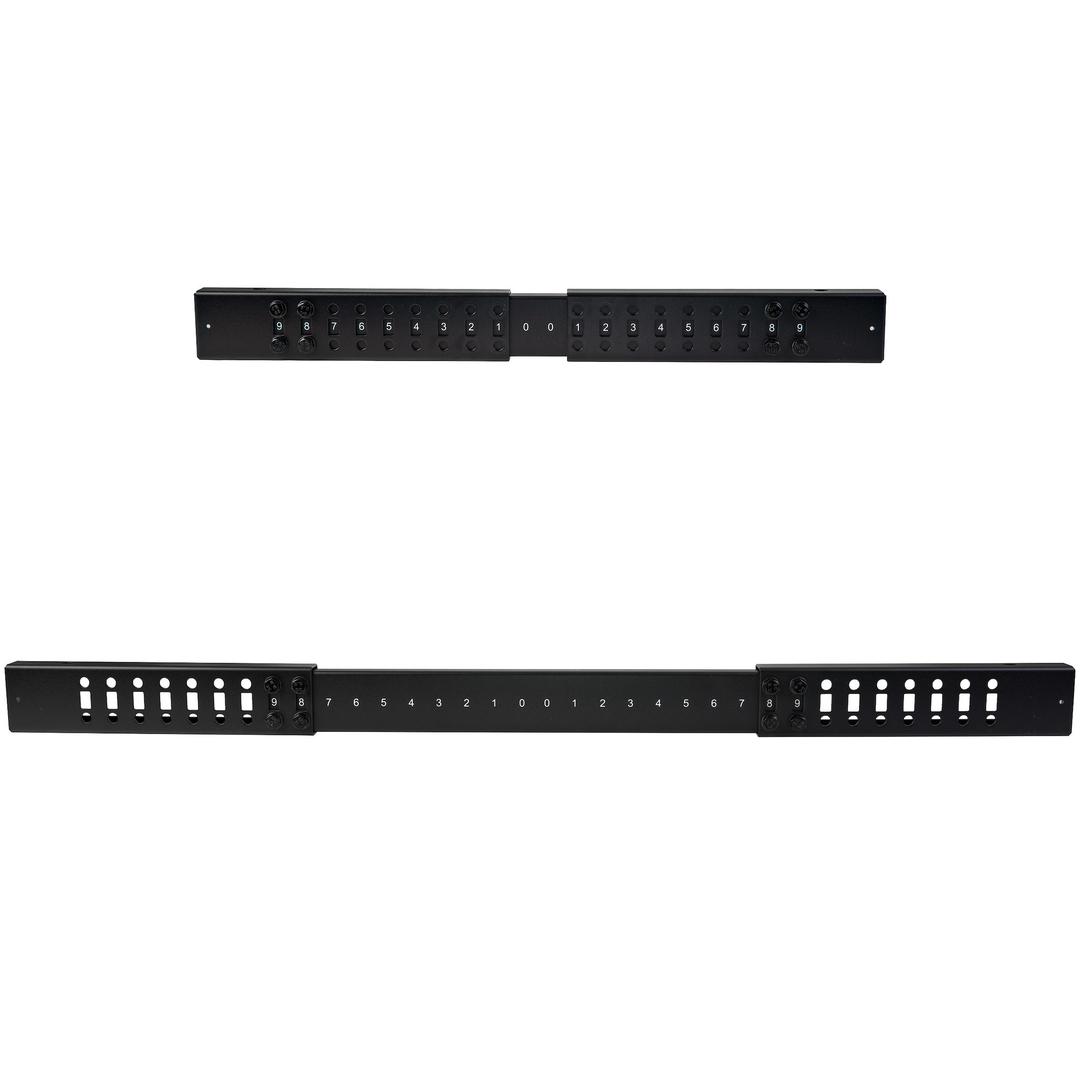

The StarTech.com 4POSTRACK18U is a 18U, 19″ four-post open frame server rack that ships flat-packed and assembles into a floor-standing frame with adjustable depth. Its L-shaped rails move between 56 and 101.7 cm (22–40″) of mounting depth, so the same rack takes short switches and patch panels as well as full-depth servers that need support at the front and the rear. The frame is cold-rolled steel in black, follows EIA/ECA-310-E, and carries up to 544 kg standing and 300 kg on its casters. Four casters and four levelling feet are both in the box, so you decide whether the rack is mobile or fixed. At 18U it stays under one metre tall on its casters. In practice it is an open, easy-to-reach frame for a server room, lab or equipment corner where airflow and quick access matter more than locking doors.
Compatibility — check before buying:

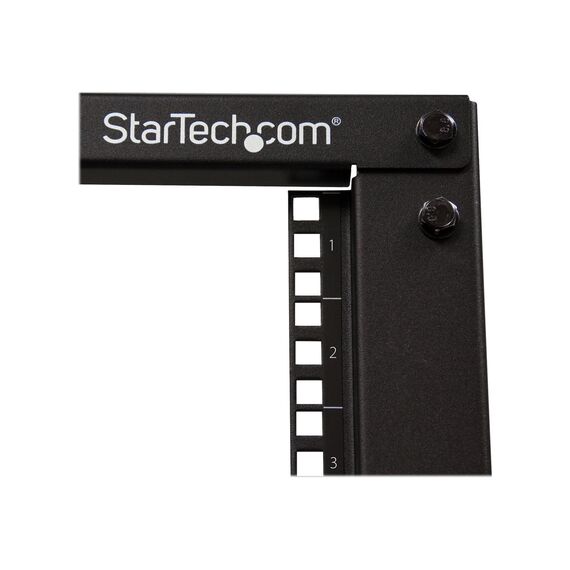

Open frame — no doors, side panels or locks. Equipment stays visible and reachable, so the rack belongs in a room that is already secured. Mounting depth 56–101.7 cm: rail-kit servers need both rail pairs, so set the depth to the rail kit of your deepest server before loading. The rails have square holes for M6 cage nuts (24 supplied); equipment is fixed with cage nuts and screws, not directly into the rail. The rack is not wall-mountable. Shelves, PDUs and blanking panels are sold separately. Tell us the models of your server, switch and UPS and we check depth and load for you.
Best For
✓ Server rooms and small data rooms
✓ Labs, test benches and workshops
✓ Rail-kit servers and storage
✓ Switches, patch panels and routers
✓ UPS and PDU installations
✓ Mobile equipment racks on casters
Key Features

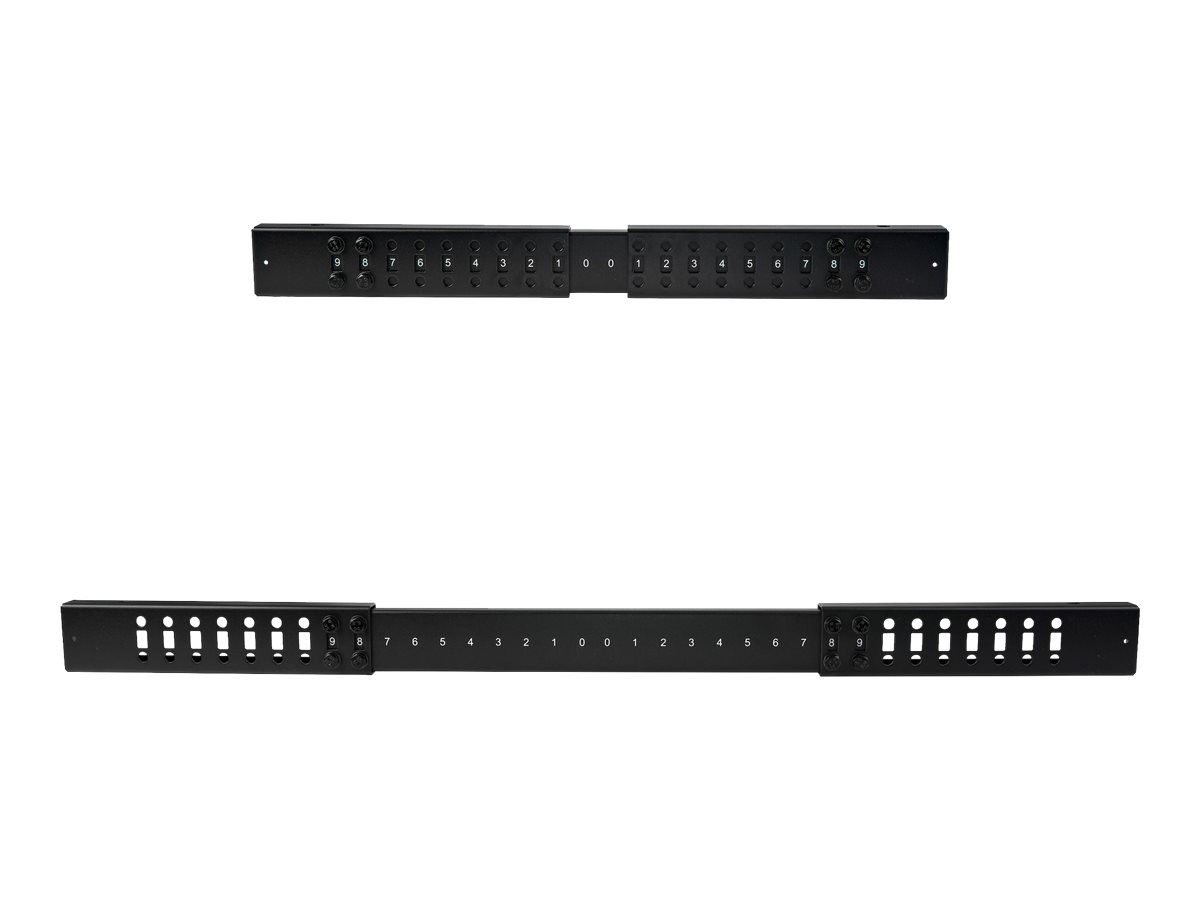

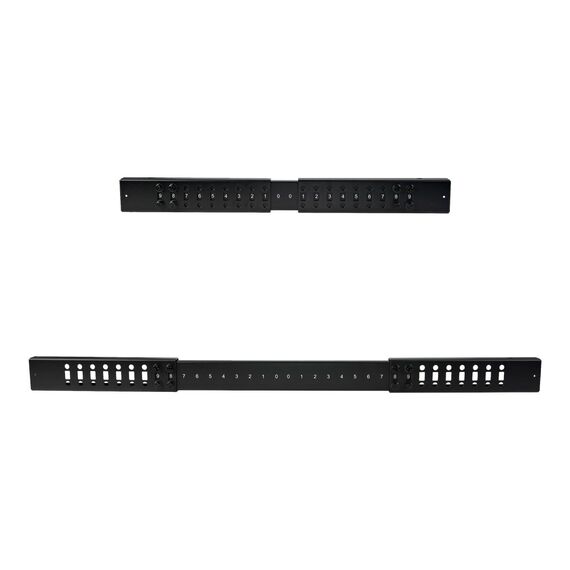

Adjustable depth
Rails set from 56 to 101.7 cm, for short network gear and full-depth servers alike.
544 kg capacity
Stationary load of 544 kg, and 300 kg when rolling on the casters.

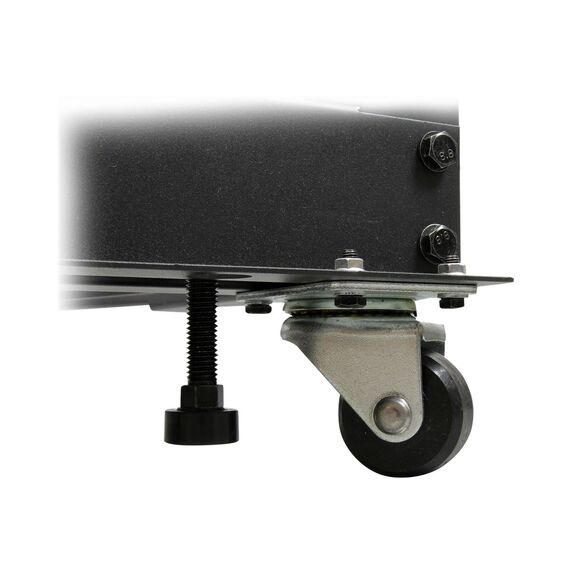

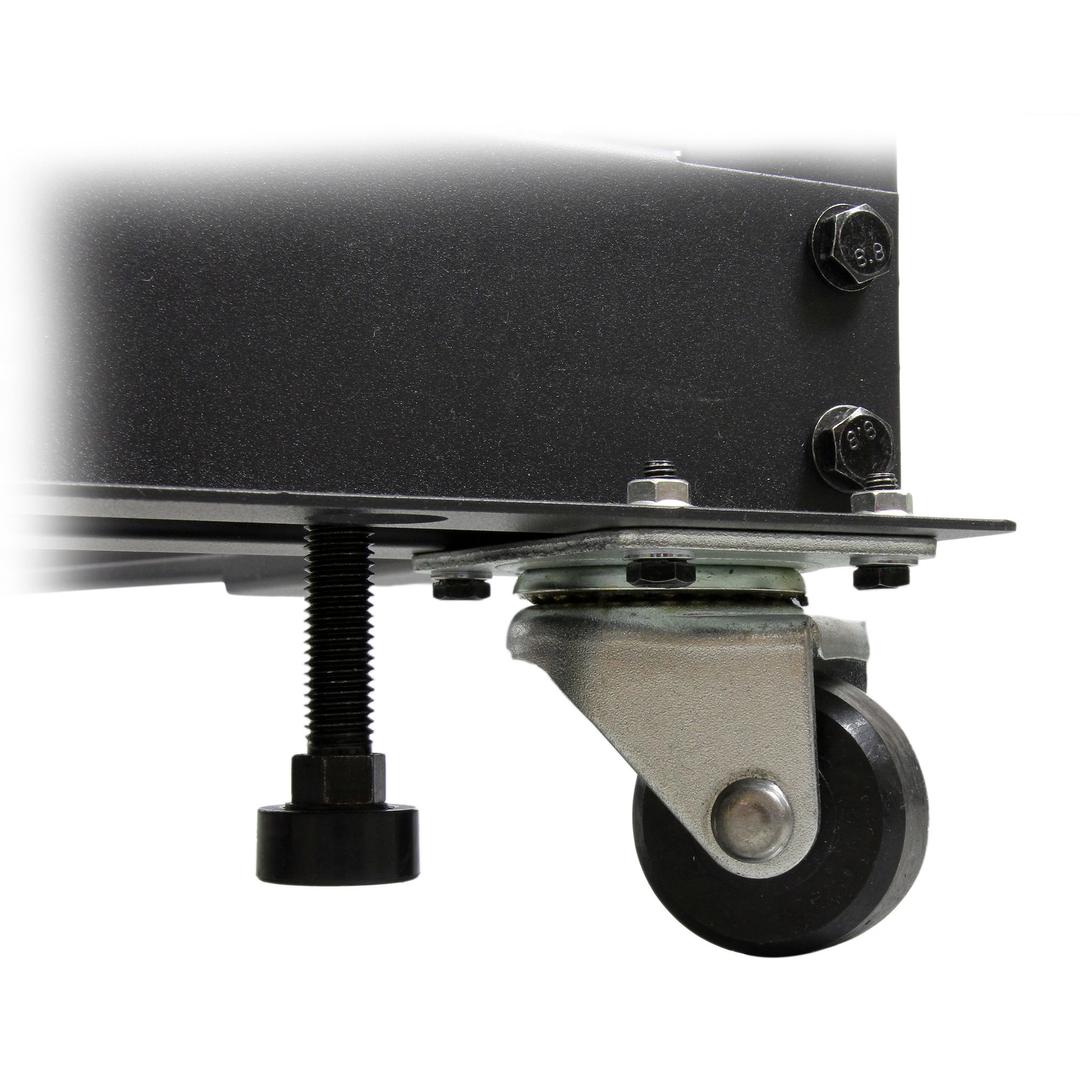

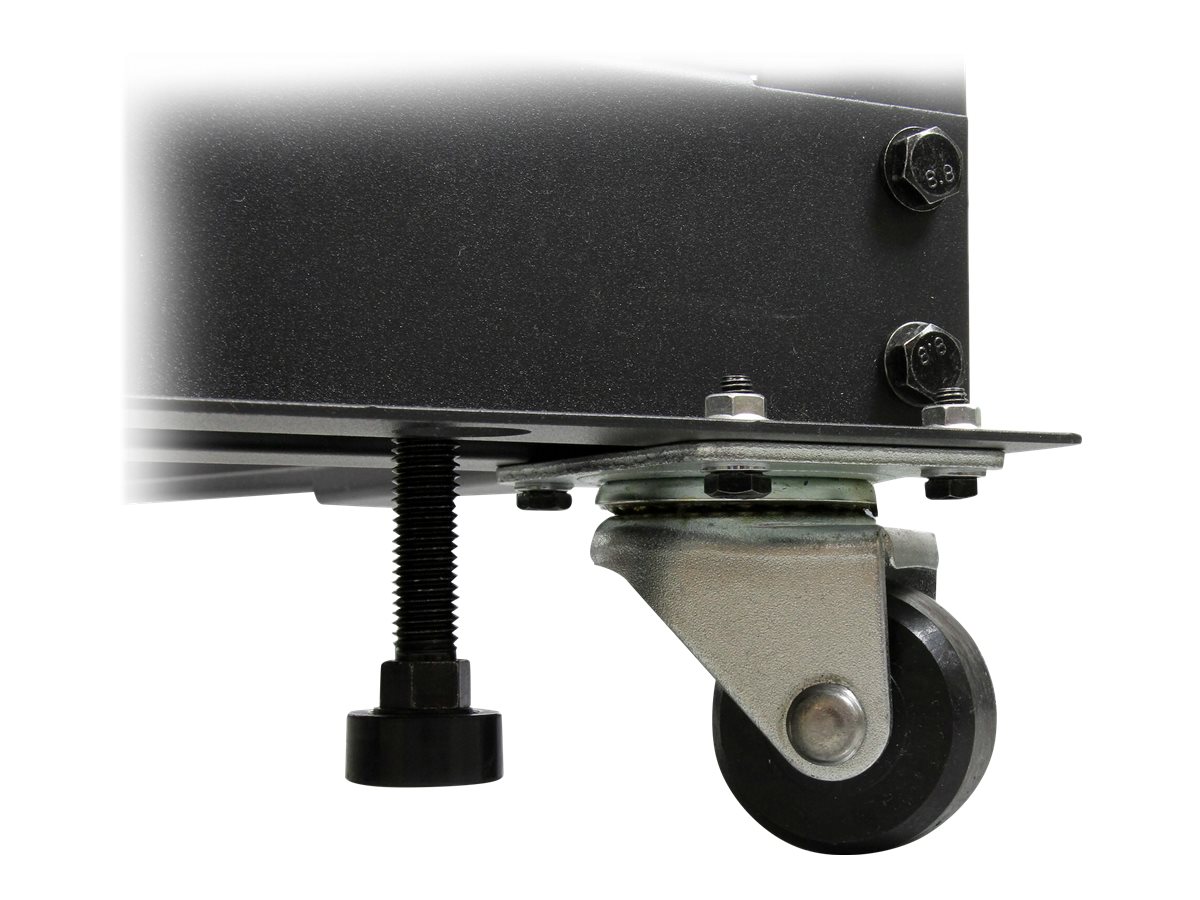

Casters or feet
Both are in the box: roll the rack where you need it, or fix it level on the feet.
Open access
No panels in the way — faster cabling, free airflow and service from every side.
Technical Specifications
| Identification |
| Brand |
StarTech.com |
| Product |
18U 4-Post Server Rack, 19″ Open Frame Rack with 101 cm Mounting Depth and 544 kg Weight Capacity |
| Part Number |
4POSTRACK18U |
| EAN / GTIN |
0065030886833 |
| Product Type |
4-post open frame server rack |
| Rack |
| Rack height |
18U |
| Rack type |
4-post open frame |
| Industry standard |
EIA/ECA-310-E |
| Material |
Cold-rolled steel |
| Colour |
Black |
| Mounting & Load |
| Mounting depth |
56–101.7 cm (22–40″), adjustable |
| Rail profile |
L-shape |

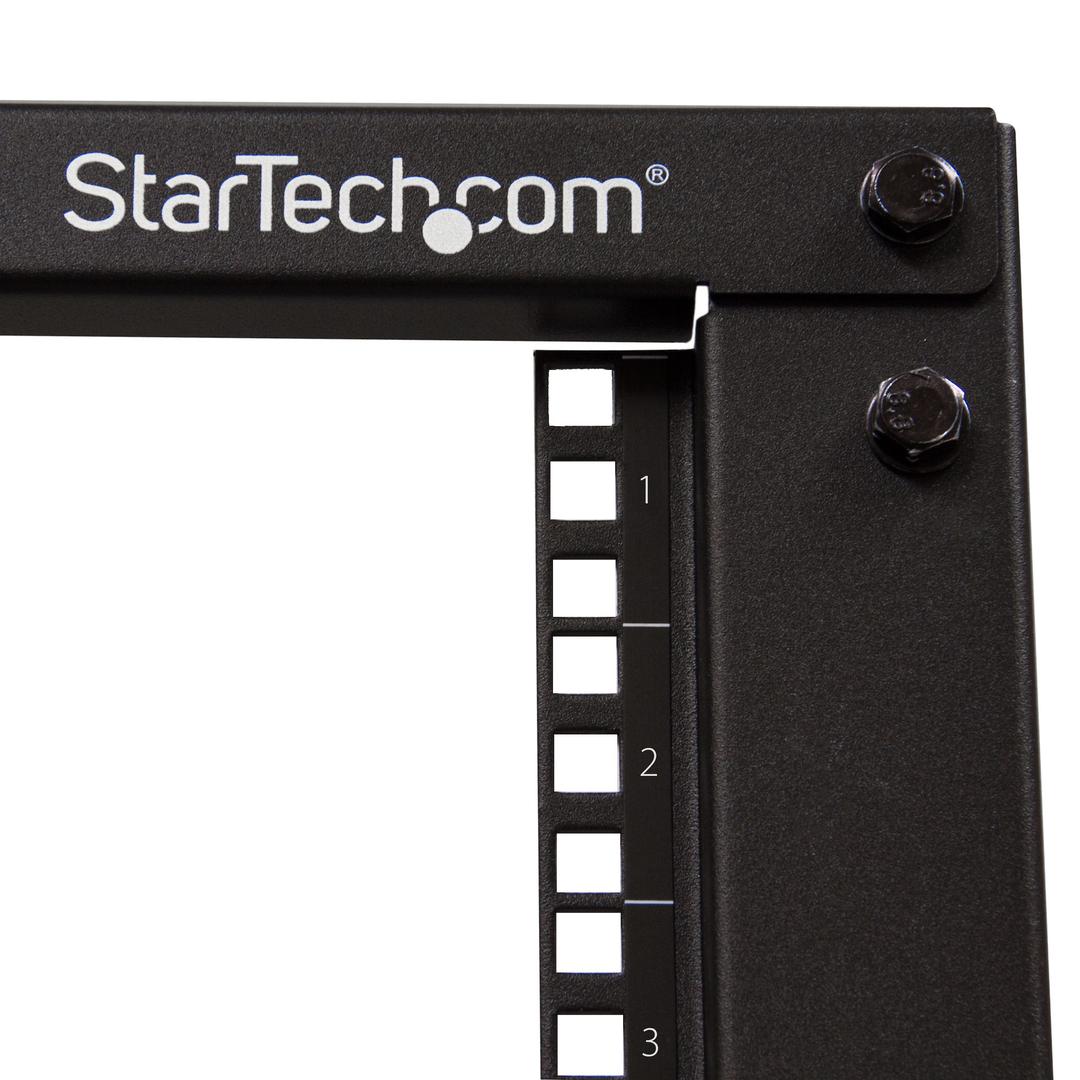

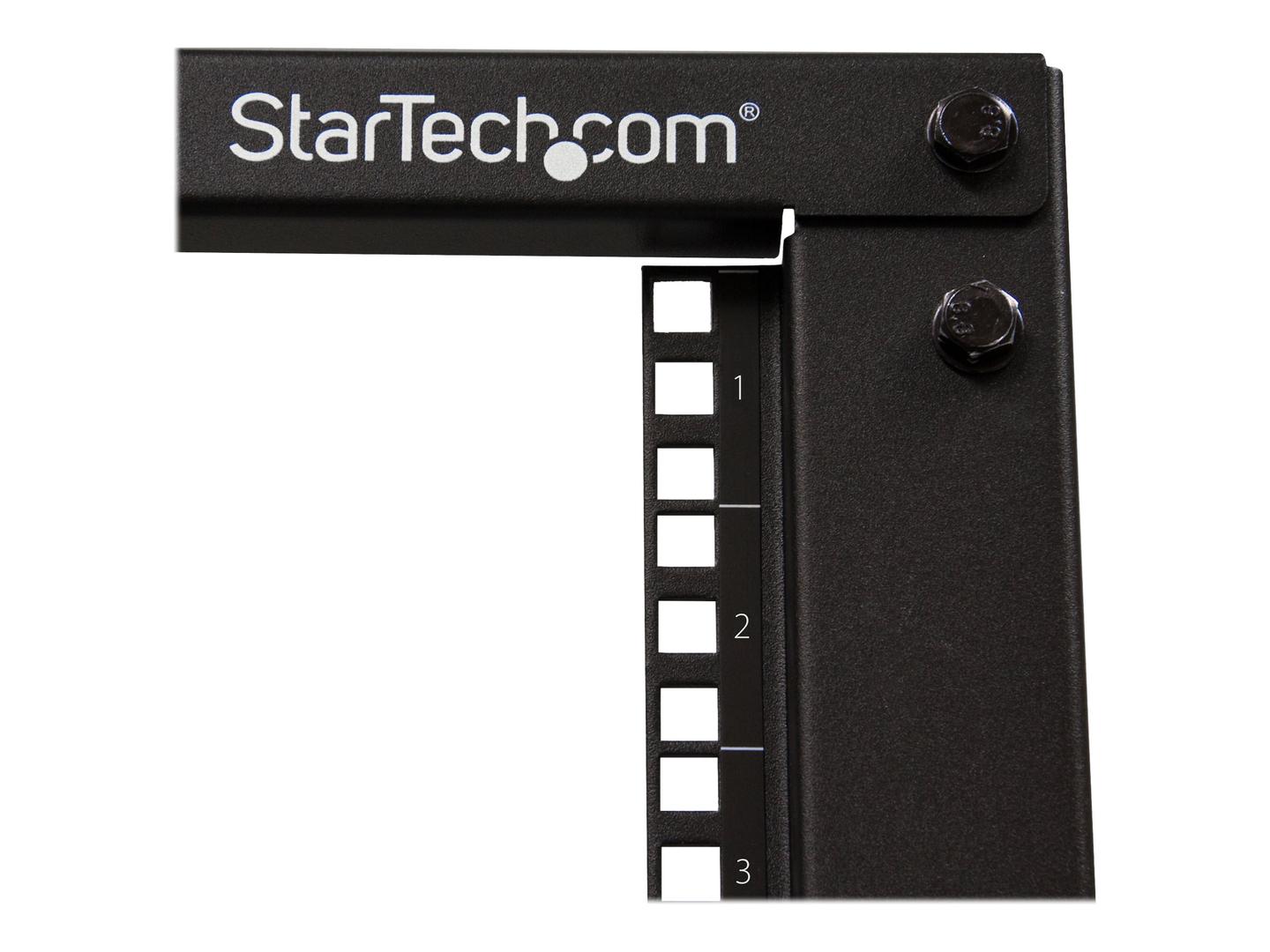

| Mounting holes |
Square (cage nut) |
| Cage nuts |
M6, 24 supplied |
| Wall-mountable |
No |
| Stationary |
Up to 544 kg |
| Rolling (on casters) |
Up to 300 kg |
| Dimensions & Weight |
| Length (depth) |
1.1 m |
| Width |
60 cm |
| Height |
90.4 cm |
| Height with casters |
97.7 cm |
| Weight |
26.5 kg |
| Floor, Cabling & Grounding |
| Casters |
4, included |
| Levelling feet |
4, included |

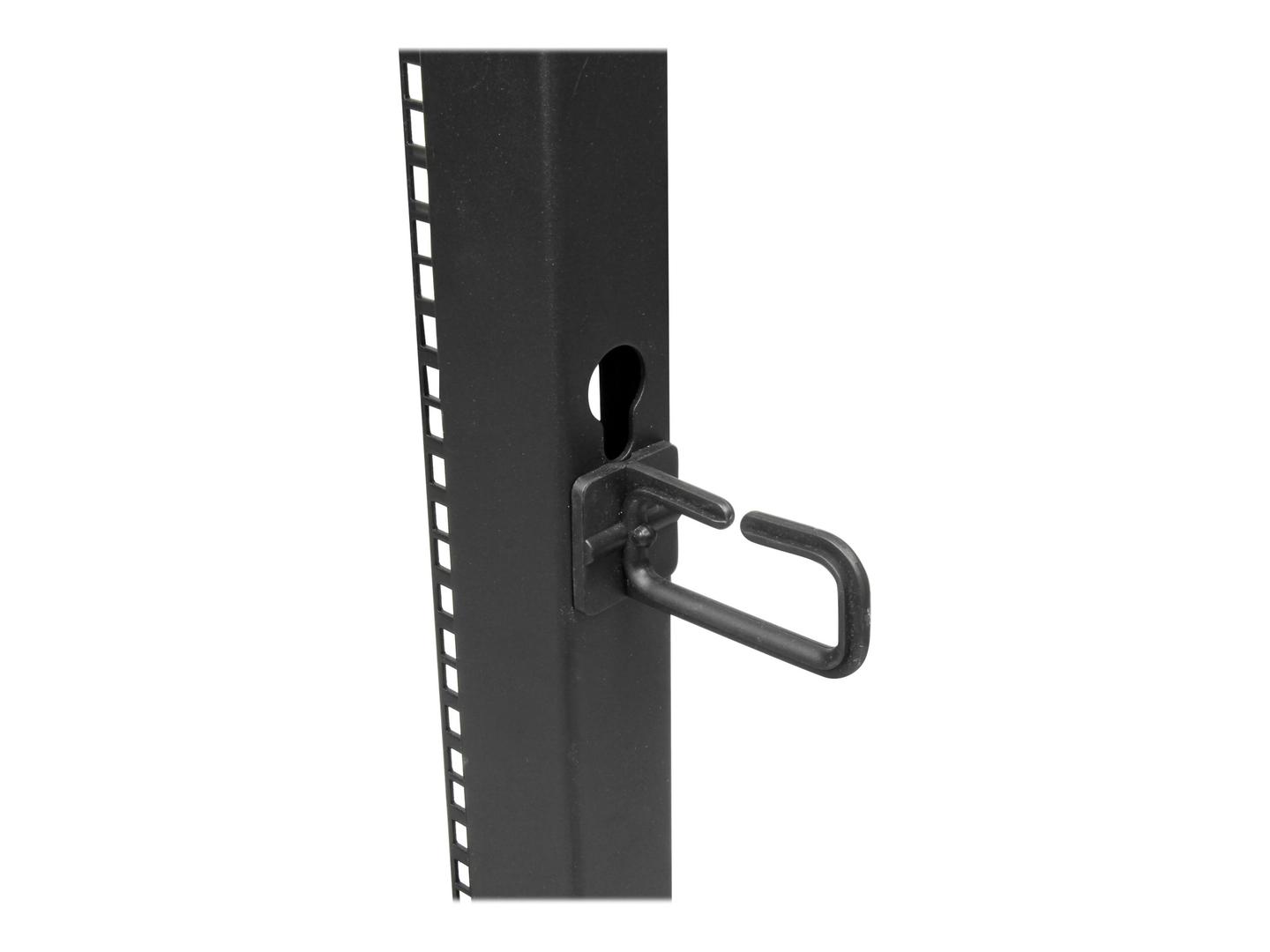

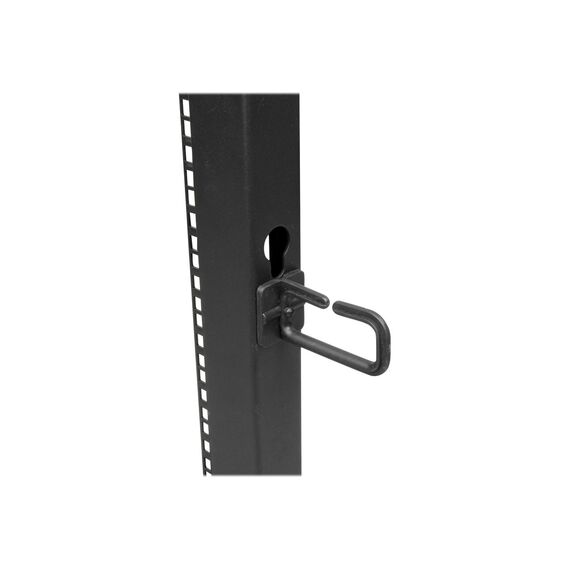

| Cable management |
8 cable management hooks included |
| Grounding |
4 grounding wires included |
| Assembly |
Flat pack, assembly required |

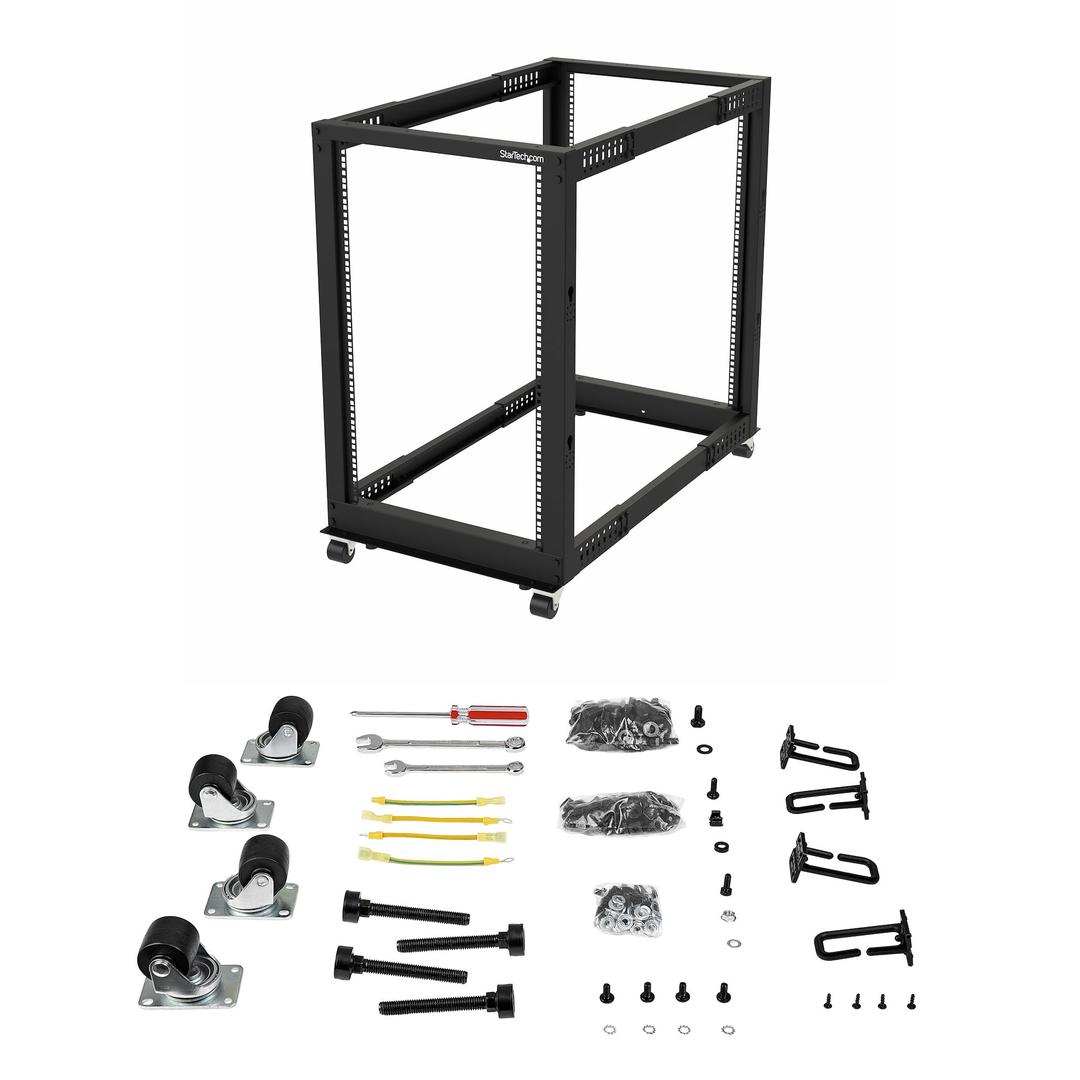

| In the Box |
| Included |
Frame parts (vertical rails, base, corner, centre and top brackets), M8 assembly bolts and washers, 24 M6 cage nuts with screws and washers, 8 cable management hooks, 4 casters, 4 levelling feet, 4 grounding wires, wrenches and a screwdriver |
| Not Included |
Doors, side panels and locks; shelves; PDU; blanking panels |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
StarTech.com publishes a 2-year warranty for this model on its UK product page. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration. |
Frequently Asked Questions
Can it take full-depth servers?
Yes, if the server rail kit fits a mounting depth between 56 and 101.7 cm. Set the rails to the rail kit before you load the rack.
Does it come assembled?
No. It ships flat-packed; the bolts, cage nuts, wrenches and a screwdriver are in the box.
Can I put it on wheels?
Yes. Four casters and four levelling feet are included. StarTech.com rates it for 300 kg when rolling.
Does it lock?
No. It is an open frame with no doors or side panels. For lockable storage, choose an enclosed server cabinet.
Singular Expert Insight
Open four-post frames are our first choice for server rooms that are already locked: cabling is faster and hot air leaves freely. Choose the height with growth in mind — the 15U 4POSTRACK15U is lower, the 25U 4POSTRACK25U gives seven more units. Put UPS units and heavy servers at the bottom, and use blanking panels to keep the airflow front to back. For the equipment, see our
switches; for enclosed alternatives, browse our
racks and cabinets. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.
Buyer’s Guide
Buy it if
You need an open 19″ frame with adjustable depth for servers and network gear.
Skip it if
You need doors, locks or a wall-mounted cabinet.
Also consider
StarTech.com 4POSTRACK25U — the same open frame in 25U.
