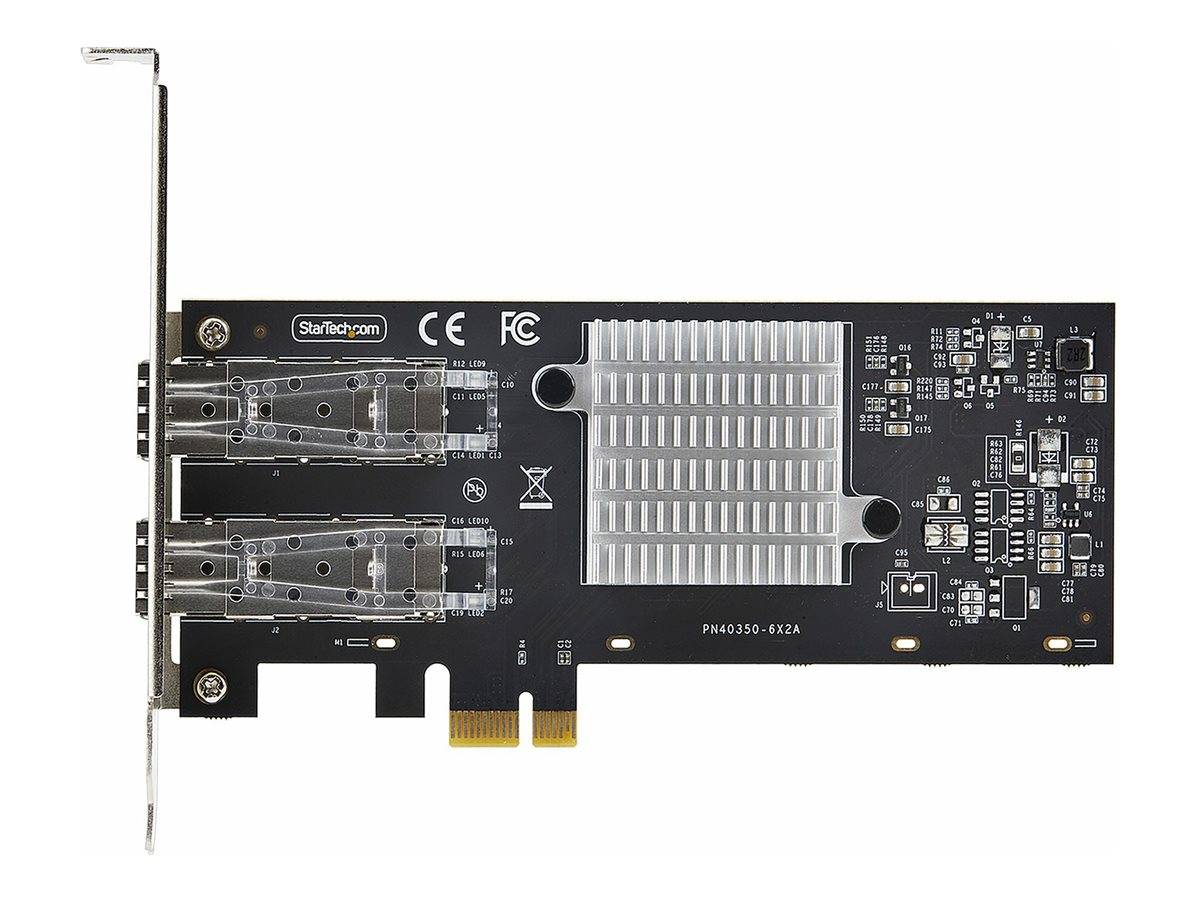

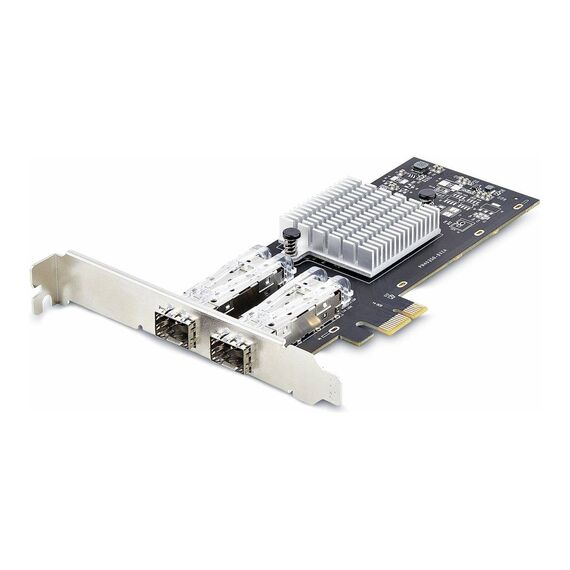

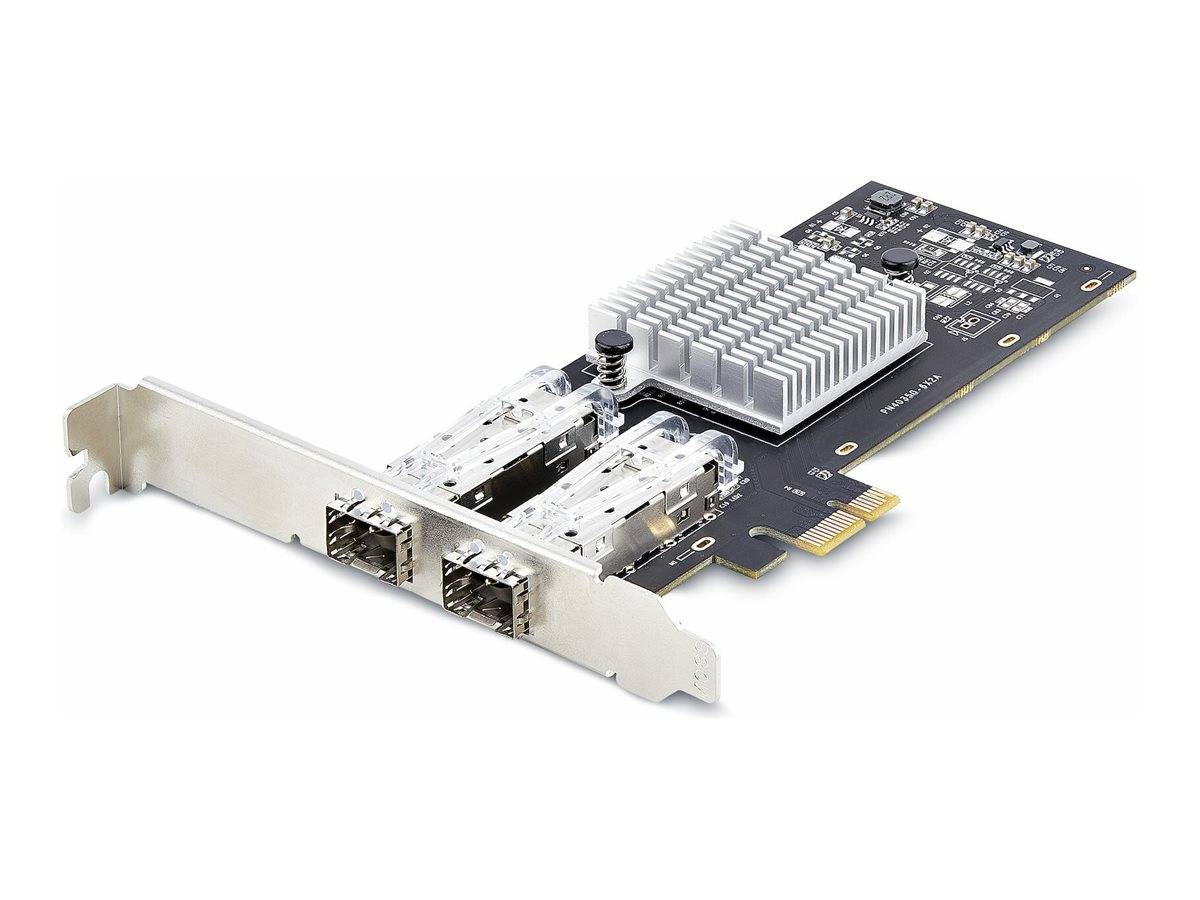

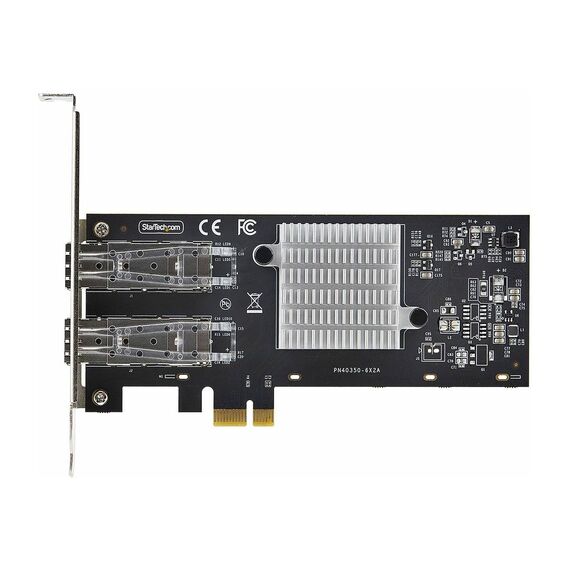

StarTech.com 2-Port GbE SFP Network Card / PCIe 2.0 x1 / Intel I350-AM2 2x 1GbE Controller | P021GI-NETWORK-CARD
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0, PCIe 2.1 |
| Networking | Networking |
| Ports | Gigabit SFP x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-LX, Ethernet 1000Base-SX, Ethernet 1000Base-T, Ethernet 1000Base-KX |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Capacity | Jumbo frame size: 9000 |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPv4, IPv6 |
| Status Indicators | Link/activity, link/speed |
| Features | Full duplex capability, Virtual Machine Device Queues (VMDq), Single Root I/O Virtualization (SR-IOV), Virtualization Technology for Connectivity (VT-c), Link Aggregation, Digital Diagnostics Monitoring (DDM), Energy-Efficient Ethernet (EEE), VLAN Tagging, promiscuous mode, with heat sink, Automatic Media-Dependent Interface Crossover (MDIX), PXE boot, bus powered |
| Compliant Standards | IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.11ax |
| Processor / Memory | Processor / Memory |
| Processor | Intel I350-AM2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x 1000Base-LX/SX - SFP (mini-GBIC) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC, WEEE, MSA, EMI |
| Colour | Black |
| Power | Power |
| Power Consumption Operational | 2.8 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Hyper-V Server, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows 10 / 11, VMware ESXi 7.x, Linux 2.4.x or later (LTS versions only) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1 cm |
| Depth | 14.7 cm |
| Height | 6.8 cm |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 3 cm |
| Shipping Depth | 17 cm |
| Shipping Height | 14 cm |
| Shipping Weight | 105 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
Features - StarTech.com - P021GI-NETWORK-CARD
More Details
Product Code
CI63471
EAN Code
0065030899918
Manufacturer
StarTech.com
