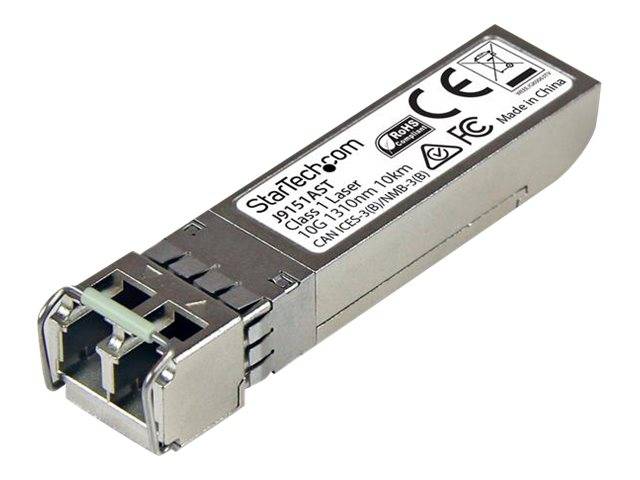

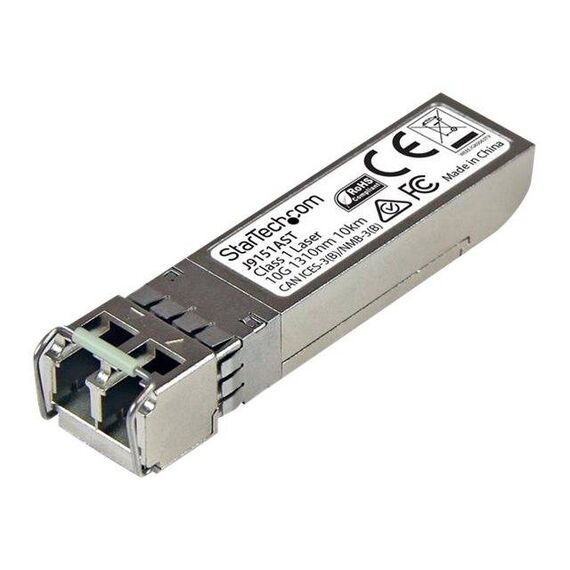

StarTech.com 10 Gigabit Fiber SFP+ Transceiver Module - HP J9151A Compatible - SM LC with DDM - 10km (J9151AST)
StarTech.com 10 Gigabit Fiber SFP+ Transceiver Module - HP J9151A Compatible - SM LC with DDM - 10km (J9151AST)
Description Ensure dependable 10Gb Ethernet connections and cost-savings with this single-mode Mini-GBIC module. This HP compatible 10 Gigabit fiber SFP+ is engineered by StarTech.com to deliver what you want most in your network connections: reliability. Built to exacting specifications and fully tested to ensure maximum performance, you can install this high-quality fiber transceiver module into HP networking devices that support the J9151A transceiver module, as well as other major brands of networking equipment.This 10GBase-LR SFP+ delivers 10 Gigabit connectivity over single-mode fiber cable with a range of up to 10 km (6.2 mi.). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment.This 10 GbE SFP+ is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry's MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.This 10 Gigabit single-mode SFP+ is engineered to the highest quality standards and is 100% HP compatible, equivalent to the HP J9151A SFP+ transceiver. The StarTech.com SFP+ transceiver module is configured and fully tested to ensure it works seamlessly with HP or other major brands of networking equipment.You can be assured that the use of StarTech.com SFP products should not affect the warranty protection of your networking equipment.Delivering both convenience and scalability, this fiber SFP+ transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that's compatible with a wide range of 10 Gigabit networking devices.Ideal for use in HP switches, routers and other networking equipment, the SFP+ optical transceiver provides reliable performance, allowing you to expand your network to remote segments cost-effectively. The SM fiber transceiver module supports Digital Diagnostics Monitoring (DDM), a maximum distance of up to 10 km (6.2 mi.), and maximum data rates of up to 10Gbps. Special Features
|
Product Specification
Device Type | SFP+ transceiver module |
Form Factor | Plug-in module |
Colour | Silver |
Connectivity Technology | Wired |
Cabling Type | 10GBase-LR |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
Data Transfer Rate | 10 Gbps |
Optical Wave Length | 1310 nm |
Max Transfer Distance | 10 km |
Features | Full duplex capability, Digital Diagnostics Monitoring (DDM) |
Compliant Standards | IEEE 802.3ae |
Interfaces | 1 x Ethernet 10GBase-LR - LC single mode x 2 |
Compliant Standards | UL, FCC, RoHS, MSA |
OEM Manufacturer Equivalent Part Number | HP J9151A |
Width | 1.3 cm |
Depth | 5.7 cm |
Height | 1.4 cm |
Service & Support | Limited warranty - lifetime |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 70 °C |
Humidity Range Operating | 30 - 75% |
Designed For | HP SFP+ zl Module Rack Shippable ¦ HPE 2-Port SFP+/ 2-Port CX4 10GbE yl Module, 5406 zl Switch, 6120XG Blade Switch, 6600-24G-4XG Switch, 6600-48G-4XG Switch, SFP+ zl |
