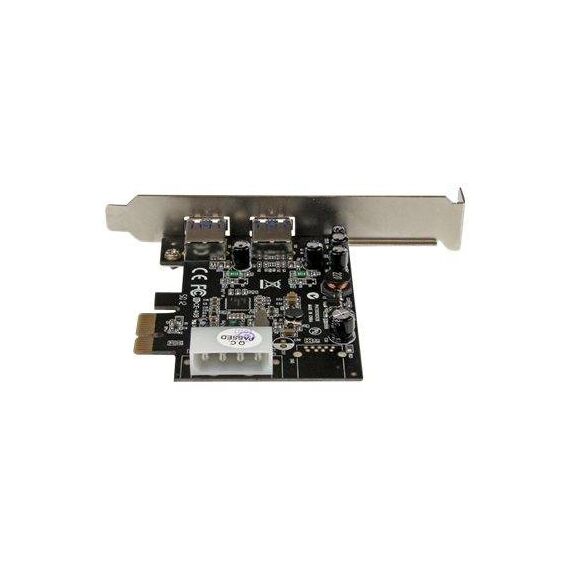

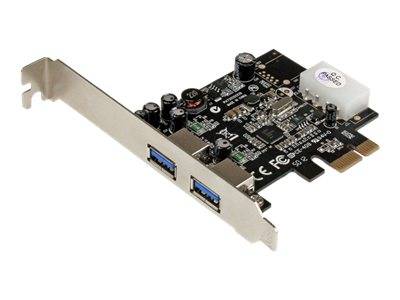

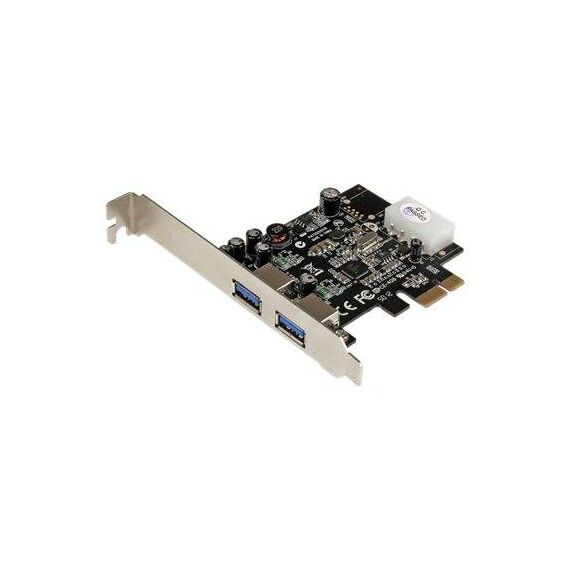

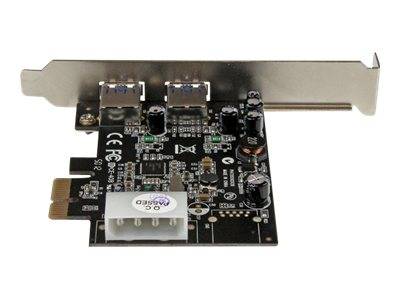

StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power | PEXUSB3S25

Description

Add 2 SuperSpeed USB 3.0 ports to your PCI Express-enabled PC. The PEXUSB3S25 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional LP4 power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers.The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.UASP is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Product Specification

Device Type USB adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express x1
Ports USB 3.0 x 2
Connectivity Technology Wired
Data Link Protocol USB, USB 2.0, USB 3.0
Data Transfer Rate 5 Gbps
Compliant Standards USB 1.1, USB 2.0, USB 3.0
Interfaces 2 x USB 3.0 - 9 pin USB Type A ( external )

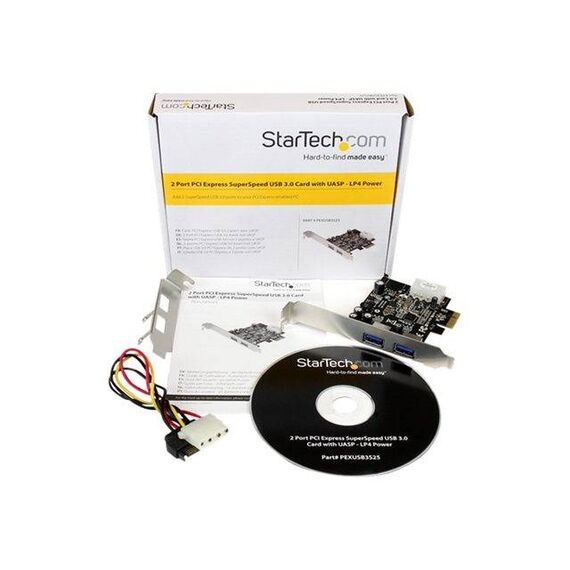

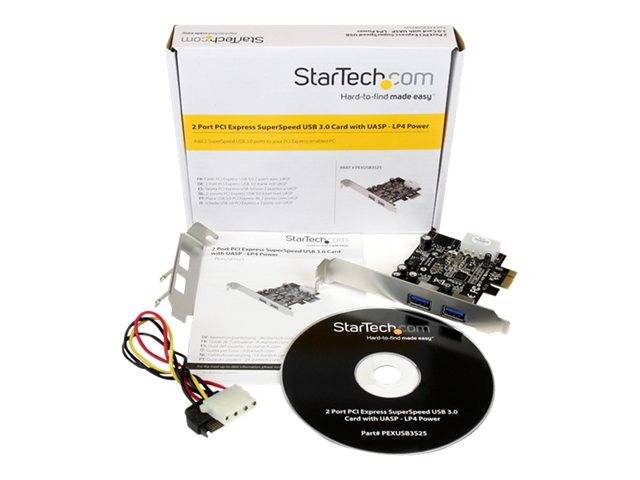

Included Accessories Low-profile bracket
Compliant Standards FCC, RoHS
Software Included Drivers & Utilities
OS Required Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits)
Width 1.9 cm
Depth 6.7 cm
Height 12.1 cm
Weight 90 g
Service & Support Limited warranty - 2 years
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 5 - 85%
Designed For P/N: USB3S2ESATA3
