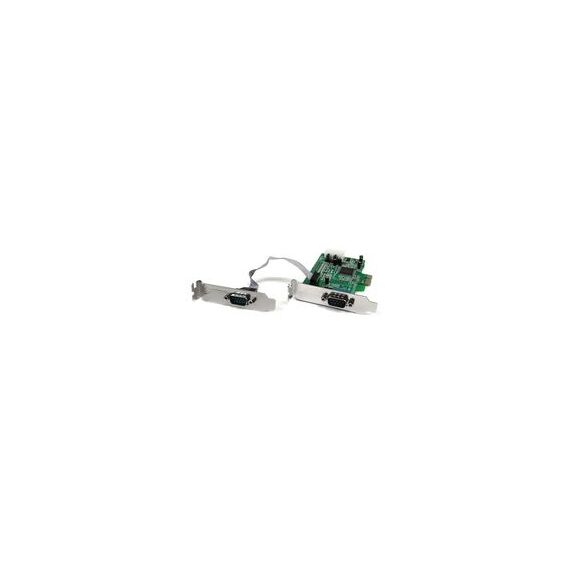

2Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART (PEX2S553LP) V931204

Hover over an image to enlarge

(Including VAT)
Product Code:V931204
EAN Code:0065030841757
Payment options
Our advantages

24 months warrantyGuarantee for all purchased goods in our online store is 12 months

Return and exchange - no problemYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.

Different payment methodsPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Free Store

Delivery within 2-4
business days

2 Years Warranty PEX2S553LP 2Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART (PEX2S553LP) 2Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART (PEX2S553LP)

"Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot
The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 DB9 serial connections.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express PCIe, while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 32 and 64-bit, Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer regardless of the case form factor.
This product is a replacement for our PEX2S552LP card.
Backed by a Lifetime warranty and free lifetime technical support."
" Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance
Pre-configured with half-height mounting bracket for low profile systems, but includes a full profile bracket for versatility
Easy to install and use with full step-by-step instructions saves time and hassle"

Feature list

Host interface: PCIe
Serial ports quantity: 2
Chipset: MosChip MCS9922CV-AA
Data transfer rate: 0.46 Mbit/s
Width: 80 mm
Depth: 105 mm
Height: 80 mm
Weight: 63.5 g
Operating temperature range T-T: -20 - 85 °C
Storage temperature range T-T: -40 - 85 °C
Operating relative humidity range: 5 - 85 %
Packaging width: 38.00 mm
Packaging height: 138.00 mm
Package weight: 210 g
Ports quantity: 2
Connectivity technology: Wired
Mac compatibility: Y
Compatible operating systems: DOS, Windows 95/ 98SE/ 2000/ XP32/64bit/ Server 200332/64bit/ Vista32/64bit/ 732/64bit/ Server 2008 R2, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0,Linux, Mac OS 10.4.x 2Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART (PEX2S553LP)
