StarTech.com 4 Port RS232 Mini PCI Express Serial Card

StarTech.com MPEX4S552 StarTech.com 4 PORT SERIELL RS232 MINI PCI (MPEX4S552)

StarTech.com 4 PORT SERIELL RS232 MINI PCI (MPEX4S552)

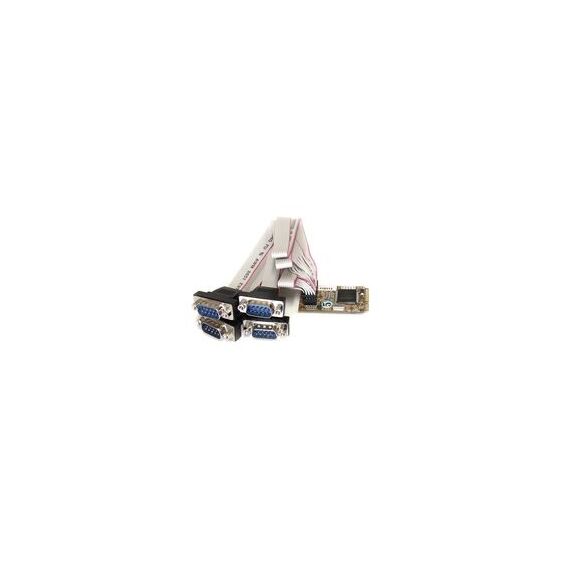

The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card 16650 UART turns a mini-PCIe slot into four RS232 DB9 serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.

A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards .

Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.

The StarTech.com Advantage

- The smallest form factor available, for internally adding serial ports to any embedded system
- Native single-chip design means up to 48% less load on your CPU which is critical for small embedded PCs that use low power, low MHz CPUs

Feature list

Host interface:	Mini PCI Express
Output interface:	Serial
Internal:	Y
Serial interface type:	RS-232
Serial ports quantity:	4
Chipset:	MosChip MCS9904CV-AA
FIFO First In, First Out:	256 B
Data transfer rate:	0.921 Mbit/s
Width:	10 mm
Depth:	50.95 mm
Height:	30 mm
Weight:	150 g
Operating temperature T-T:	0 - 55 °C
Storage temperature T-T:	-20 - 85 °C
Operating relative humidity H-H:	5 - 95 %
Windows operating systems supported:	Y
Linux operating systems supported:	Y
Colour of product:	Green
Packaging width:	150.00 mm
Packaging height:	40.00 mm
Package weight:	200 g
User guide:	Y
Compatible operating systems:	Windows 7 32/64bit/ Vista32/64/ XP32/64/ CE 6.0Windows Server 2008 R2/ 200332/64/ 2000Linux 2.6.x
Compliance industry standards:	PCI Express 1.1
Quantity outer carton:	50 pcs
