Composite and S-Video to VGA Video Scan Converter (VID2VGATV2) V931704

Hover over an image to enlarge

(Including VAT)
14 item(s)
Product Code:V931704
EAN Code:0065030844345 VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (VID2VGATV2) Composite and S-Video to VGA Video Scan Converter (VID2VGATV2)

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter with Scaler provides a simple way to convert Composite or S-Video signals to VGA or Component RCA output, for use with computer monitors, projectors or HDTV sets.

Equipped with an On-Screen Display OSD menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector.

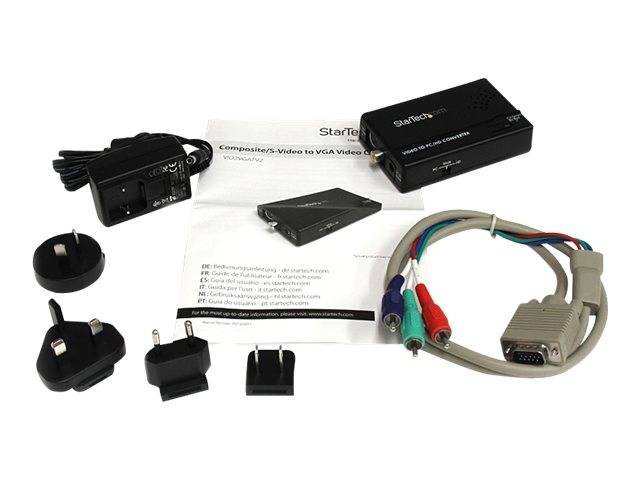

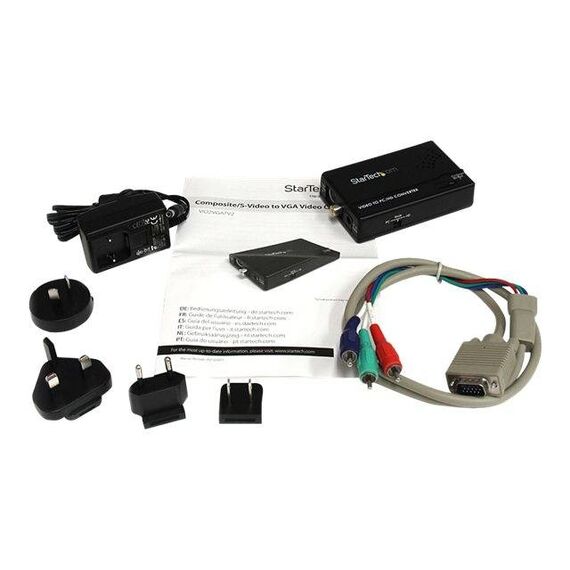

Plus, the Component/S-Video-VGA Converter includes a VGA to Component RCA breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port.

Backed by a 2-year warranty and free lifetime technical support.

- Convert and scale Composite/S-Video input to VGA/Component output
- Accepts NTSC and PAL input
- On-Screen Display for simple output setting selection
- VGA to Component YPbPr RCA Adapter included
- 50 Hz to 60 Hz frame rate conversion
- Plug & Play installation - no drivers or software required

Feature list

Colour of product: Black
Weight: 90 g
External power adapter: Y
Operating voltage: 5 V
Operating current: 1 A
Host interface: Composite, S-Video
Output interface: VGA
Analog signal format system: NTSC, PAL
Maximum resolution: 1600 x 1200 pixels
Supported resolutions: 1600 x 1200, 1280 x 1024, 1024 x 768
On Screen Display OSD: Y
Plug and Play: Y
Packaging width: 115.00 mm
Packaging height: 60.00 mm
Package weight: 460 g
Dimensions WxDxH: 64 x 112 x 26 mm Composite and S-Video to VGA Video Scan Converter (VID2VGATV2)
