StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
StarTech.com ST1000SPEXD4 StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NICAdd dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot

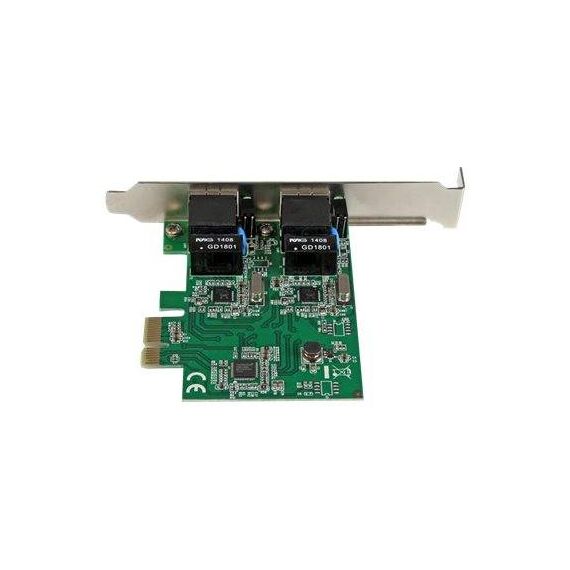

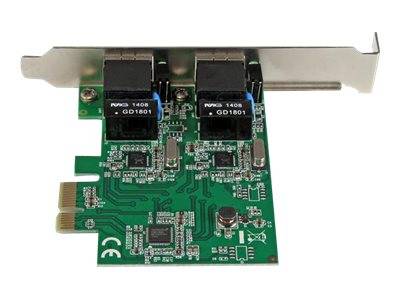

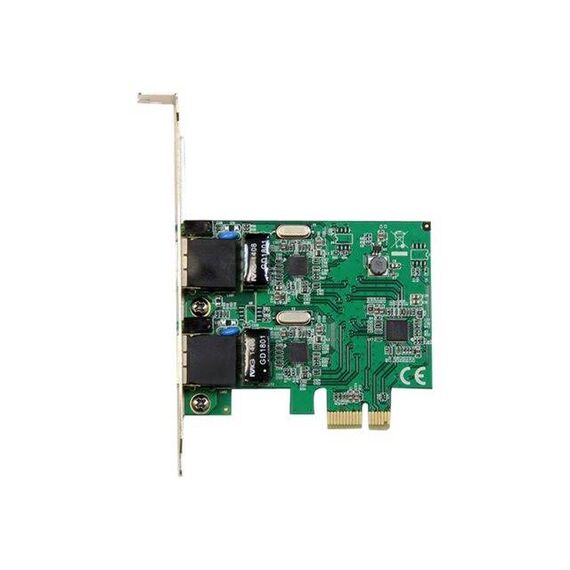

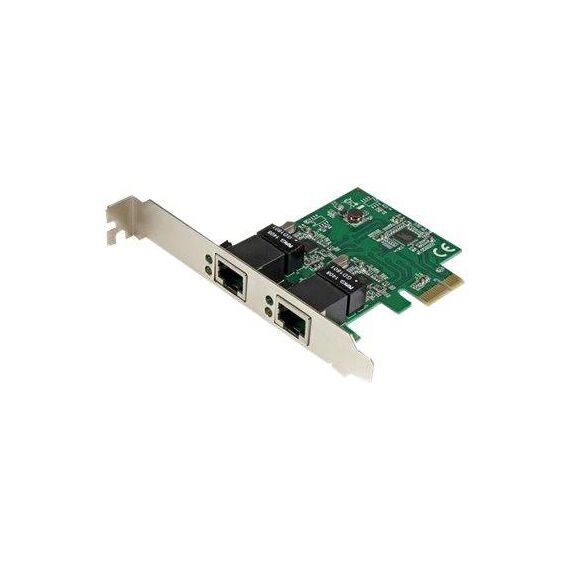

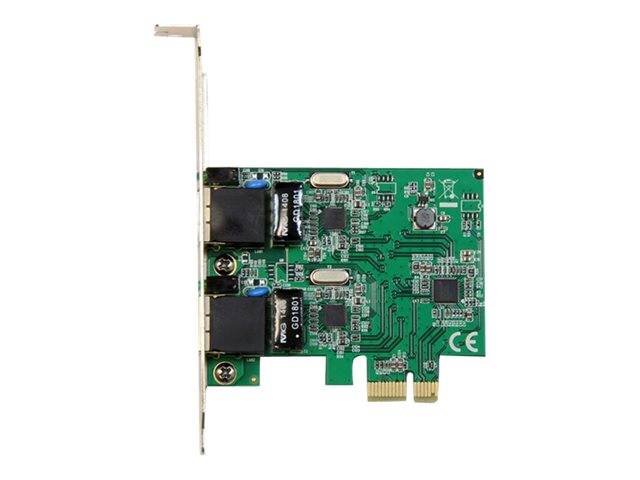

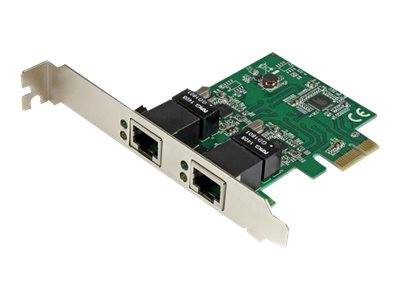

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.

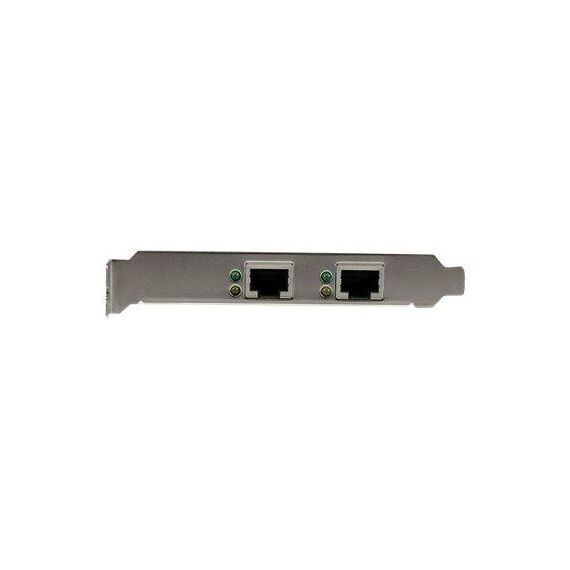

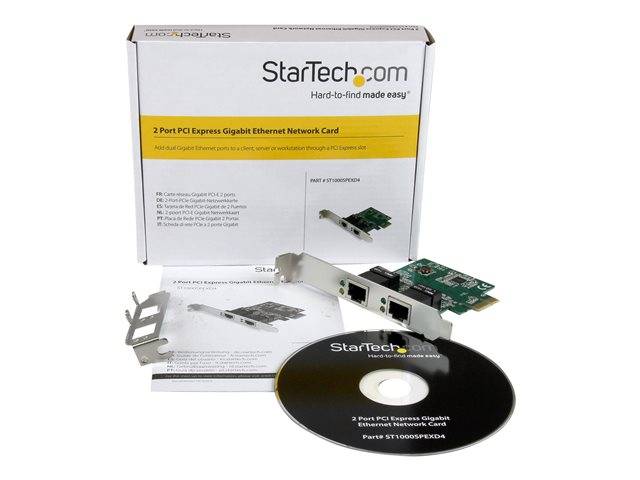

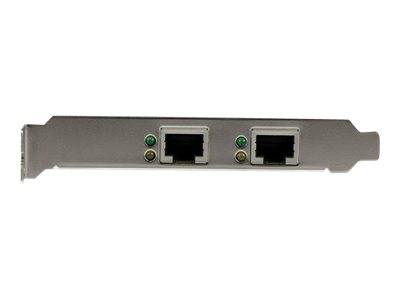

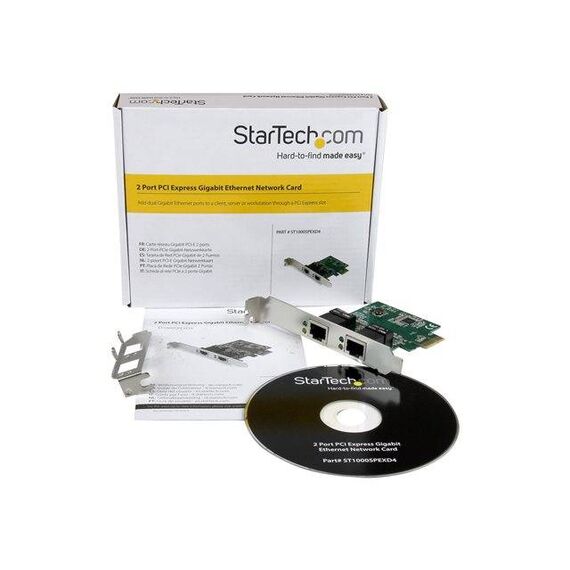

The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN WoL. The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Protect critical networked systems with a redundant and independent Gigabit port
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Maximize the networking efficiency of your virtualized server, with dedicated ports
|Ethernet LAN RJ-45 ports:||2|
|Data transfer rate max:||2000 Mbit/s|
|Chipset:||Realtek - RTL8111E, Asmedia - ASM1182E|
|Networking standards:||IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x|
|Jumbo frames support:||Y|
|Auto MDIX IEEE:||Y|
|Windows operating systems supported:||Y|
|Mac operating systems supported:||Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks|
|Linux operating systems supported:||Y|
|Package width:||142 mm|
|Package depth:||170 mm|
|Package height:||30 mm|
|Package weight:||133 g|
|Operating temperature T-T:||0 - 70 °C|
|Storage temperature T-T:||0 - 100 °C|
|Operating relative humidity H-H:||10 - 90 %|
|Number of products included:||1 pcs|
