StarTech.com HDMI over IP Extender Kit with Video Wall Support / 1080p / HDMI over Cat5 / Cat6 Transmitter and Receiver Kit (ST12MHDLAN2K) / Video/audio/infrared/serial extender / HDMI / up to 100 m / TAA Compliant / for P/N: ST12MHDLAN2R | ST12MHDLAN2K

ST12MHDLAN2K
741.37
(882.23 inc. VAT)
Out of stock
Delivery
Payment options
Product CodeV934447 EAN Code0065030878456 ManufacturerStarTech.com Length>50m

StarTech.com HDMI over IP Extender Kit with Video Wall Support / 1080p / HDMI over Cat5 / Cat6 Transmitter and Receiver Kit (ST12MHDLAN2K) / Video/audio/infrared/serial extender / HDMI / up to 100 m / TAA Compliant / for P/N: ST12MHDLAN2R | ST12MHDLAN2K

Description

This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5 or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.The kit includes an easy-to-use online app to manage your IP video distribution.The app is available on iOS for an iPhone or iPad, Android for a smartphone or tablet, and Google Chrome browser for a desktop.The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.



Product Specification

Device Type Video/audio/infrared/serial extender
Form Factor External
Colour Black
Localisation Australia, Japan, New Zealand, United Kingdom, Europe, North Asia
Connectivity Technology Wired
Data Link Protocol HDMI
Max Resolution 1920 x 1080 @ 60 Hz
Max Transfer Distance 100 m
Status Indicators Power, link OK, status
Features Wall mountable, daisy-chaining support
Interfaces 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 2 x RS-232 (input) - RJ-11 ¦ 2 x RS-232 (output) - RJ-11 ¦ 2 x IrDA (input) - mini jack ¦ 2 x IrDA (output) - mini jack ¦ 2 x audio (input) - mini jack ¦ 2 x audio (output) - mini jack

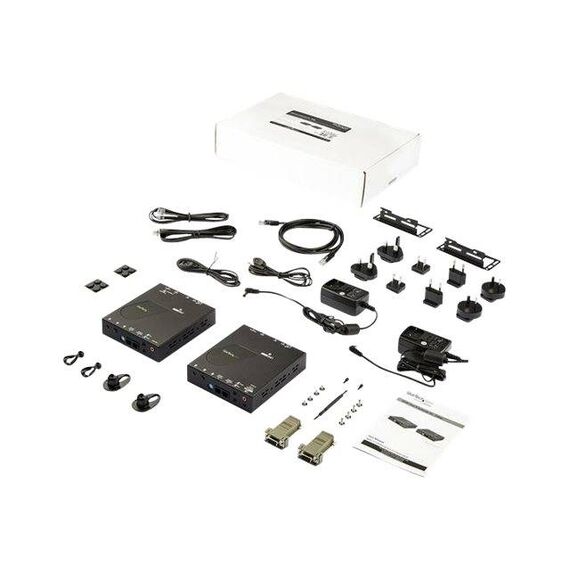

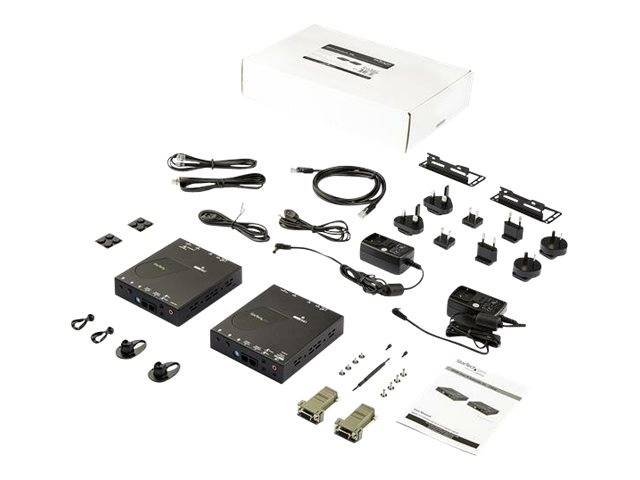

Included Accessories IR receiver, IR transmitter, 8 foot pads
Cables Included 1 x network cable ¦ 2 x RJ-11 to RS-232 adapter ¦ 2 x RJ-11 phone cable
Mounting Kit Included
Rack Mounting Kit Included
Compliant Standards FCC, RoHS
TAA Compliant Yes
Power Device External power adapter
Max Supported Qty 2
Voltage Required AC 120/230 V
Power Consumption Operational 10 Watt
Width 11.8 cm
Depth 13.1 cm
Height 3.1 cm
Weight 80 g
Shipping Weight 200 g
Service & Support Limited warranty - 2 years
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 0 - 80%
Designed For P/N: ST12MHDLAN2R

Features - StarTech.com - ST12MHDLAN2K

Length
>50m
More Details
Product Code
V934447
EAN Code
0065030878456
Manufacturer
StarTech.com
