StarTech.com HDMI over Cat5 Video Extender with RS232 and IR Control / Extend an HDMI® video and audio over standard CAT5 cabling, with support for RS232 Serial and Infrared control
StarTech.com ST121UTPHD2 StarTech.com HDMI over Cat5 Video Extender with RS232 and IR Control / Extend an HDMI® video and audio over standard CAT5 cabling, with support for RS232 Serial and Infrared controlExtend an HDMI® video and audio over standard CAT5 cabling, with support for RS232 Serial and Infrared control
The ST121UTPHD2 HDMI® over Cat5 Extender Kit can extend the audio and video signal output from an HDMI®-equipped device by up to 330 feet 100 Meters, over a single CAT5 cable, or up to 165 Feet 50 Meters over a single CAT6 cable. The extender supports full High-Definition video 4K and 1080p and HD 3D, and also extends the accompanying digital audio signal.
For convenient, time-saving control of the media source, the CAT5 HDMI extender offers bi-directional RS232 serial and Infrared IR interfaces, which enable you to control the HDMI audio-video source from either end of the connection.

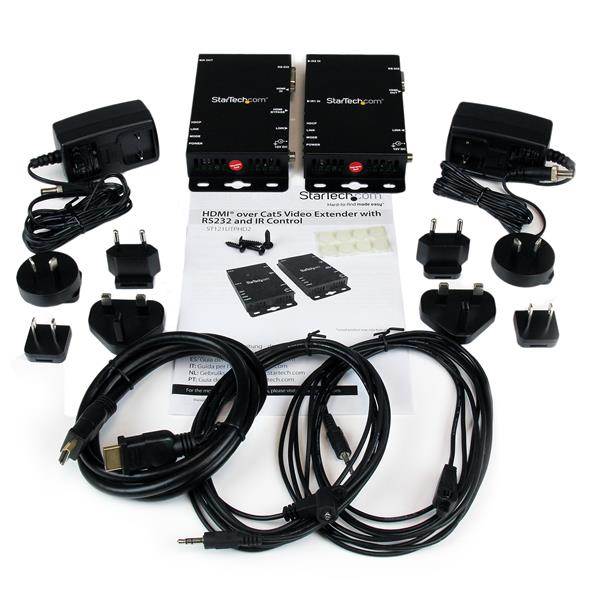

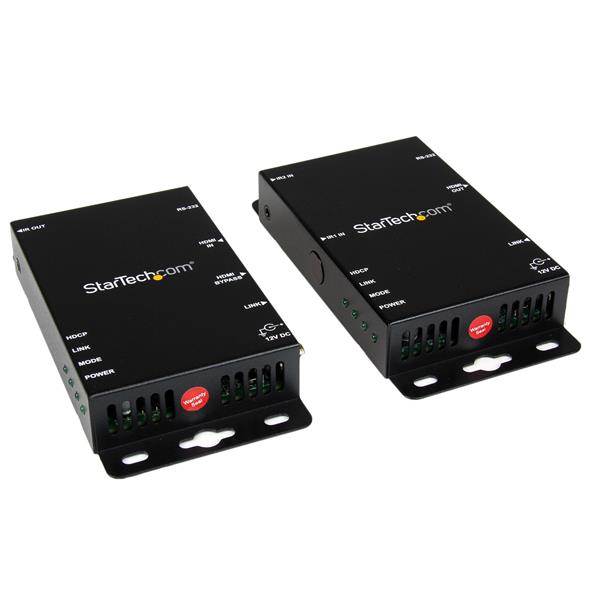

The HDMI over CAT5 Extender Kit includes both the HDMI® to CAT5 transmitter and the Cat5 to HDMI receiver needed for a cost-effective, ready-to-use digital signage solution.
To help ensure seamless performance without any unexpected or unnecessary interruptions, the HDMI Ethernet transmitter and receiver units are fully compliant with High Speed HDMI® and HDCP standards, and each unit features lockable power connectors to prevent accidental disconnections.
The ST121UTPHD2 HDMI over Cat5 Extender Kit is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated bi-directional RS232 and IR interfaces enable you to communicate with, monitor and control your source audio-video device, from either end of the connection
- Support for full 1080p resolution with accompanying digital audio, which lets you display your content the way it's meant to be seen and heard
|Cable types supported:||Cat5|
|Maximum transfer distance:||100 m|
|Supported video modes:||1080p|
|Colour of product:||Black|
|RJ-45 input ports:||1|
|RJ-45 output ports:||1|
|VGA D-Sub input ports:||1|
|VGA D-Sub output ports:||1|
|Operating temperature T-T:||0 - 70 °C|
|Storage temperature T-T:||-20 - 85 °C|
|Relative humidity:||0 - 95 %|
|External power adapter:||Y|
|Operating voltage:||12 V|
|Dimensions WxDxH:||150 x 20 x 80 mm|
|Package weight:||1500 g|
|Package height:||66 mm|
|Package width:||248 mm|
|Package depth:||304 mm|
