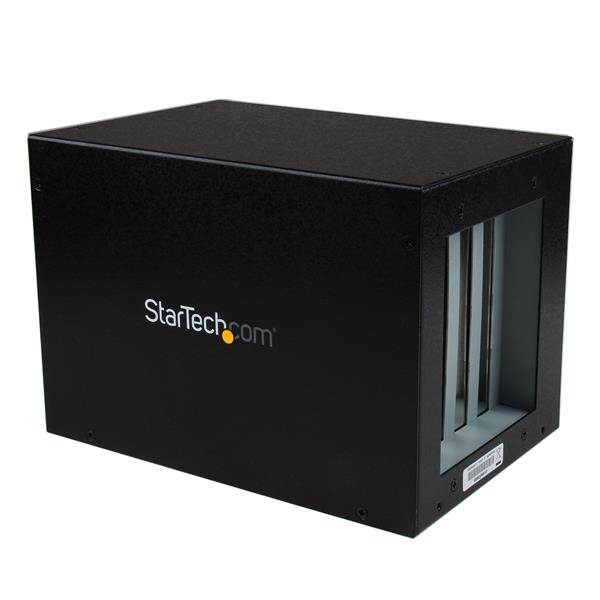

StarTech.com PCI Express to 4 Slot PCI Expansion System / Add four external PCI expansion card slots to a desktop or laptop computer system

(392.16  incl.Vat)
Shipped from Germany. Delivery within 2-8 business days.

Payment options
Product CodeV931128 EAN Code0065030825184 ManufacturerStarTech.com

StarTech.com PEX2PCI4 StarTech.com PCI Express to 4 Slot PCI Expansion System / Add four external PCI expansion card slots to a desktop or laptop computer system

Add four external PCI expansion card slots to a desktop or laptop computer system
StarTech.com''s innovative PCI Express to PCI Expansion Chassis provides a quick and simple solution to I/O expandability on almost any PCI Express PCIe enabled system. Adding external PCI slots to a server/workstation or laptop, this cost-effective and time-saving method of simply adding additional PCI cards to a server/workstation or providing a platform to be able to swap PCI add-in cards between a mobile and desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems. The external expansion chassis adds four PCI slots 32-bit/33MHz to the host computer system, through a single PCI Express connection. Providing total bandwidth of up to 250MBps from the x1 PCIe host controller card, which allows the host computer to function as though the cards in the expansion chassis were connected directly to the motherboard. For mobile applications, the Expansion Chassis can be connected to an ExpressCard enabled laptop using StarTech.com''s ExpressCard connection cable EC2PCI, which adds the same functionality offered by the Expansion Chassis to a laptop. This eliminates the expense and need of having to purchase different card adapters for the laptop. A dependable I/O expansion solution, the Expansion Chassis is backed by StarTech.com''s 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Convert a single PCI Express slot to four additional external PCI slots without any driver or software installation required
- External expansion enclosure simplifies swapping PCI cards, without ever having to move or take apart the main desktop/server
- Backed by a StarTech.com 2-year warranty and free lifetime technical support

Feature list

Host interface: PCIe
Output interface: PCI, PCI-X
Internal: Y
Package length: 9.65 mm
RoHS compliance: Y
Windows operating systems supported: Windows 2000, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported: Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported: Y
Server operating systems supported: Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2
Operating temperature T-T: 0 - 55 °C
Storage temperature T-T: -40 - 75 °C
Width: 137 mm
Depth: 204 mm
Height: 142 mm
Weight: 2400 g
Package width: 200 mm
Package depth: 245 mm
Package height: 210 mm
Cables included: DVI
