StarTech.com USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber - 2km
SV565FXDUSA
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
StarTech.com SV565FXDUSA StarTech.com USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber - 2km
StarTech.com USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber - 2km
Technical Specifications
| Warranty Information | |
|---|---|
| Warranty | 3 Years |
| Hardware | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | DVI |
| Multi-Monitor | No |
| Rack-Mountable | Yes |
| Daisy-Chain | No |
| Connector(s) | |
| Console Interface(s) | 2 - DB-9 (9 pin; D-Sub) Male |
| 2 - DVI-I (29 pin) Female | |
| 4 - 3.5 mm Mini-Jack (3 Position) Female | |
| 4 - USB A (4 pin) Female | |
| Host Connectors | 2 - DB-9 (9 pin; D-Sub) Female |
| 2 - DVI-I (29 pin) Female | |
| 2 - USB B (4 pin) Female | |
| 4 - 3.5 mm Mini-Jack (3 Position) Female | |
| Other Interface(s) | 2 - Fiber Optic SC Female |
| Performance | |
| Max Transfer Distance | 2 km (1.2 mi) |
| DVI Support | Yes - Single Link |
| IP Control | No |
| Maximum Digital Resolutions | 1920 x 1200 (1920 x 1080 widescreen - 1080p) |
| Wide Screen Supported | Yes |
| Port Selection Support | Push Button and Hotkeys |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Width | 8.7 in [220 mm] |
| Product Height | 1.7 in [44 mm] |
| Product Depth | 5.3 in [135 mm] |
| Product Weight | 36.4 oz [1030 g] |
| Indicators | |
| LED Indicators | 1 - Local Indicator |
| 1 - Remote Indicator | |
| 1 - Status Indicator (Green - Powered On, Blue - Powered On and Connected) | |
| 2 - Serial Indicators (RX/TX status) | |
| Power | |
| Power Adapter Included | Two |
| Input Voltage | 110 ~ 240 AC |
| Input Current | 0.5A |
| Output Voltage | 12 DC |
| Output Current | 1.5A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0~80% RH |
| Special Notes / Requirements | |
| Note | Supports most combo keyboard and mouse sets (including Wireless) |
| Packaging Information | |
| Shipping (Package) Weight | 12.8 lb [5.8 kg] |

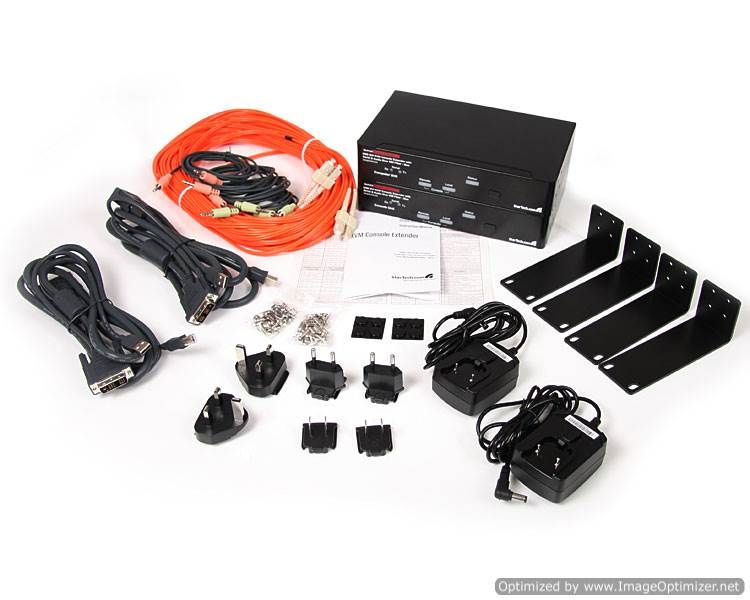

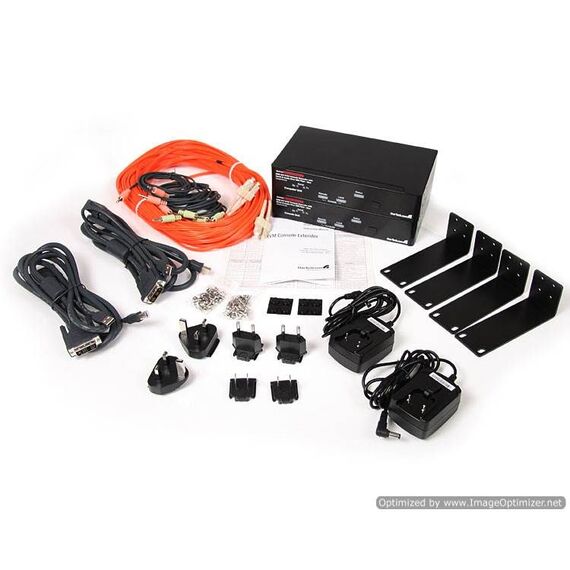

| What's in the Box | |
| Included in Package | 1 - Local Extender Unit |
| 1 - Remote Extender Unit | |
| 4 - Rackmount Brackets | |
| 1 - 30m (98ft) MM Fiber cable | |
| 2 - Sets of DVI USB and Audio cables | |
| 1 - Rubber feet | |
| 2 - Universal Power Adapter (US/UK/EU) | |
| 1 - Manual | |
StarTech.com USB DVI KVM Console Extender w/ Serial & Audio Over MM Fiber - 2km
Features - StarTech.com - SV565FXDUSA
More Details
Product Code
V931090
EAN Code
0065030839426
Manufacturer
StarTech.com
