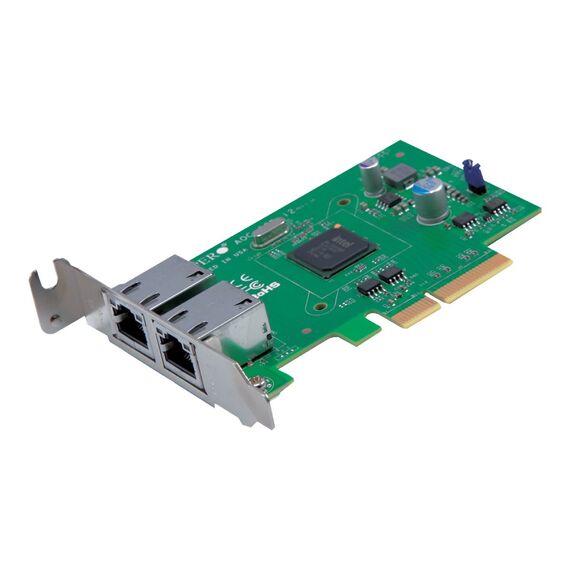

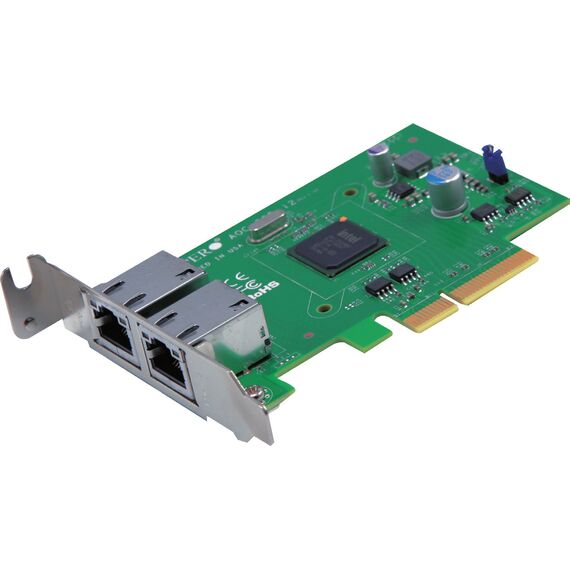

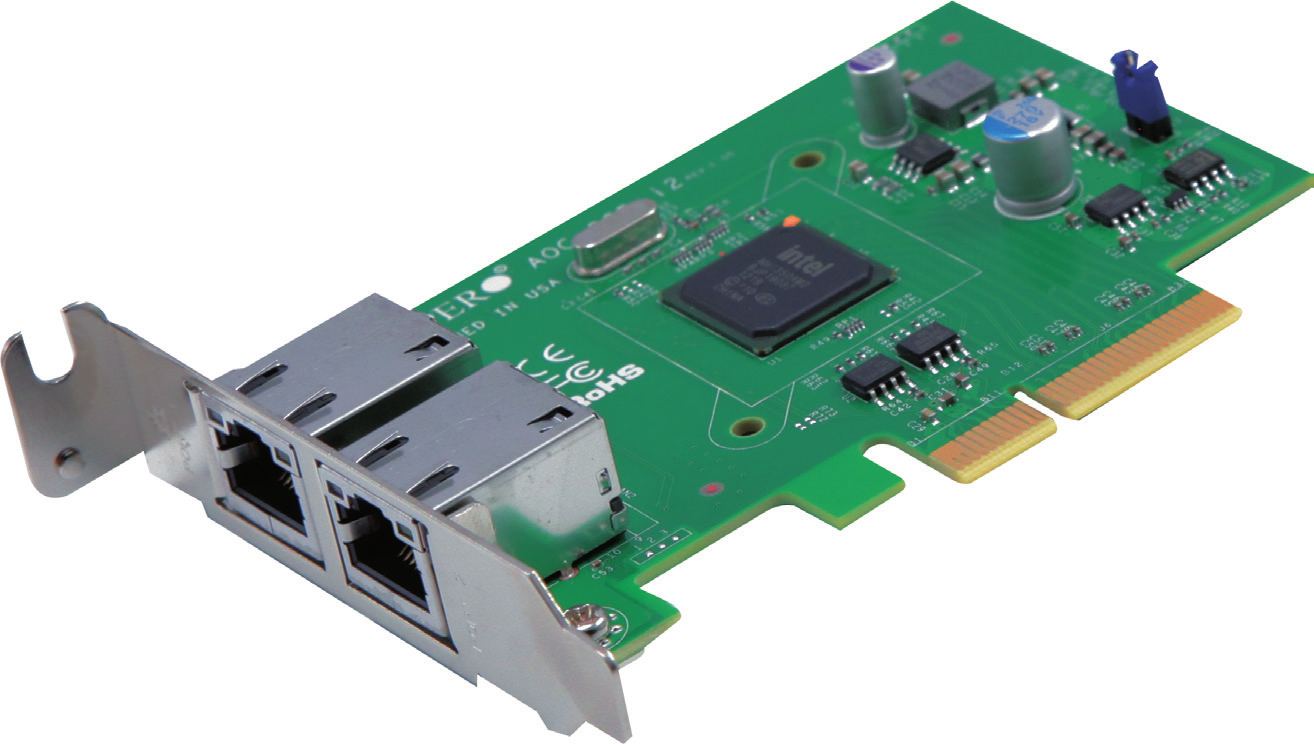

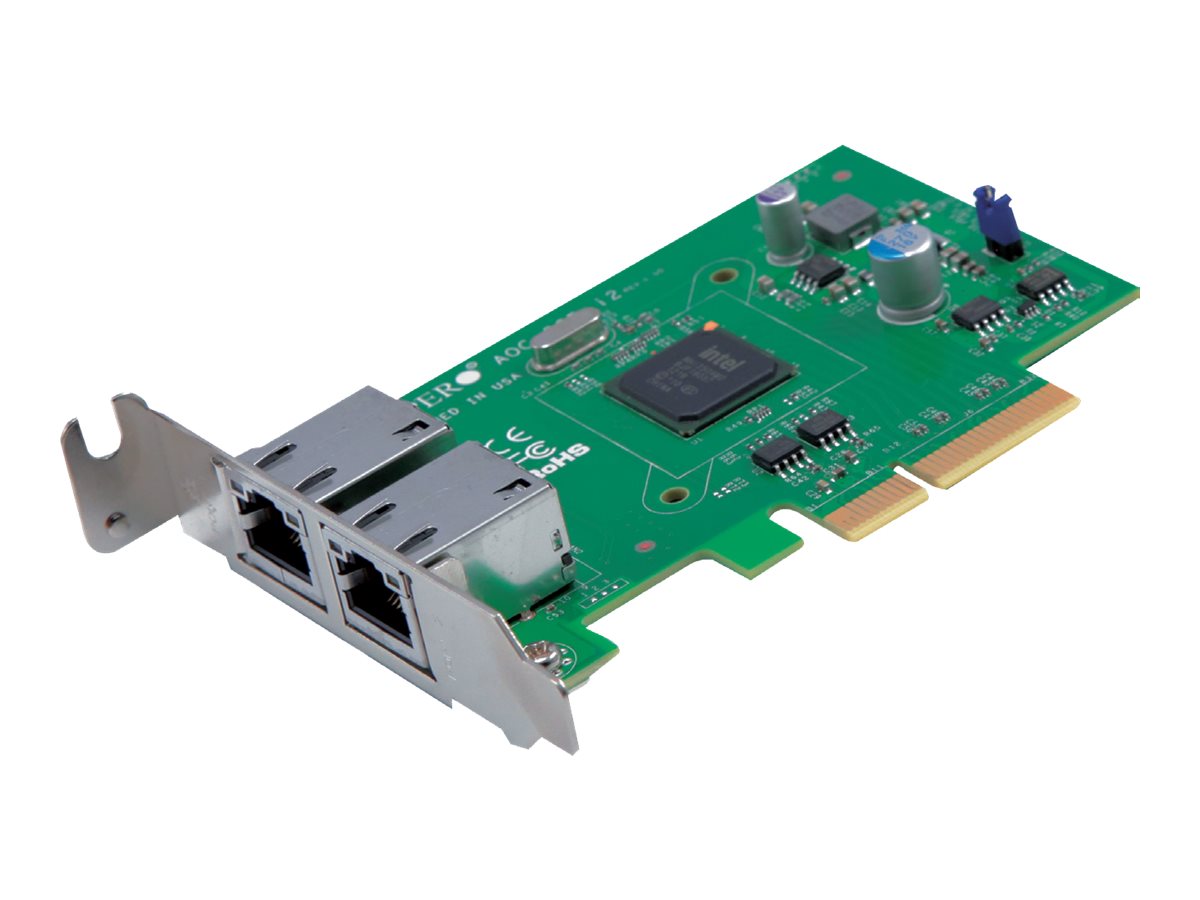

Supermicro AOC-SGP-i2 - Network adapter - PCIe 2.1 x4 low profile - Gigabit Ethernet x 2 | AOC-SGP-I2
AOC-SGP-I2
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Low-profile standard form factor
- PCI Express 2.1
- 2 RJ-45 ports
- Intel I/O Acceleration technology (I/O AT)
- Jumbo frame support up to 9.5 KB
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Low power consumption
- ISCSI remote boot support
- Flexible I/O virtualization and Quality of Service (QoS)
- PXE boot support
- RoHS compliant
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 x4 |
| PCI Specification Revision | PCIe 2.1 |
| Networking | |
| Ports | Gigabit Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Features | Flow control, MDI/MDI-X switch, auto-negotiation, packet filtering, Quality of Service (QoS), Intel I/O Acceleration Technology (I/OAT), Jumbo Frames support, Virtual Machine Device Queues (VMDq), PXE support, Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), checksum offload support, iSCSI remote boot |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az |
| Processor / Memory | |
| Processor | 1 x Intel I350 |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Power | |
| Power Consumption Operational | 4 Watt |
| Software / System Requirements | |
| OS Required | Red Hat Linux 6.0, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, VMware ESXi 4.0, Microsoft Windows Server 2003 SP2, Microsoft Windows XP SP3, FreeBSD 8.0, Red Hat Enterprise Linux 5.5, Microsoft Windows 7 SP1, SuSE Linux Enterprise Server 10 SP3, SuSE Linux Enterprise Server 11 SP1, VMware ESXi 4.1, VMware ESXi 5, Citrix XenServer |
| Dimensions & Weight | |
| Depth | 9.91 cm |
| Height | 6.9 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
Features - SUPERMICRO - AOC-SGP-I2
More Details
Product Code
07:759414
EAN Code
0672042131945
Manufacturer
SUPERMICRO
No posts found
