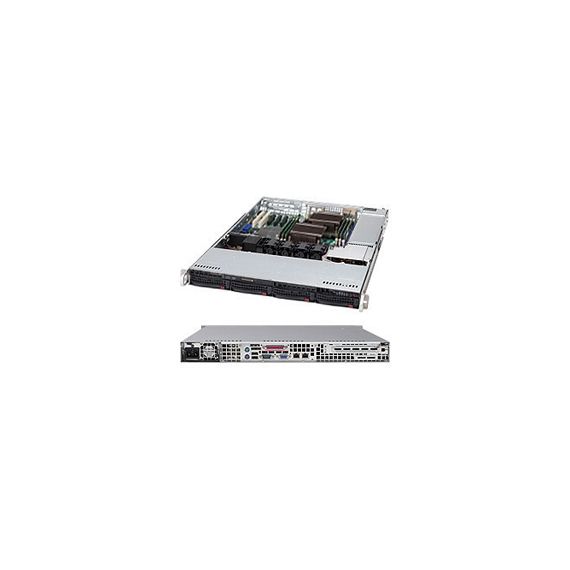

Supermicro SC815 TQ-600CB / Rack-mountable / 1U / extended ATX / SATA/SAS / hot-swap 600 Watt / black | CSE-815TQ-600CB
|
Description Supermicro's SC815 1U chassis features a unique and highly-optimized design. The chassis is equipped with a high efficiency power supply, or gold level system for superb power savings. High performance fans provide ample optimized cooling latest generation memory modules and drive bays offer maximum storage capacity in a 1U form factor. |
Product Specification
| Form Factor | Rack-mountable - 1U |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | Extended ATX |
| Front Accessible Bays Qty | 2 |
| Hot-Swap Bays Qty | 4 |
| Server Swappable Drive Interface | SATA/SAS |
| Built-in Devices | Led panel |
| Colour | Black |
| Cooling System | Internal: 40 mm fan x 4 / Pulse-width modulation (PWM) support |
| System Cabinet Features | SCSI Enclosure Services (SES2) support |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 3.5" ¦ 1 (total) / 1 (free) x front accessible - 3.5" Slim Line ¦ 1 (total) / 1 (free) x front accessible - 5.25" Slim Line |
| Expansion Slots | 1 x full-length, full-height |
| Included Accessories | 4 x SATA cables, mounting rails, SAS / SATA backplane, air shroud |
| Compliant Standards | UL, TUV, cUL, EN 60950, IEC 60950, EMC, FCC, 80 PLUS Platinum |
| Power Device | Power supply |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Provided | 600 Watt |
| Power Supply Features | Power Factor Correction (PFC) |
| Width | 43.7 cm |
| Depth | 65 cm |
| Height | 4.3 cm |
| Weight | 18.1 kg |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
Features - SUPERMICRO - CSE-815TQ-600CB
More Details
Product Code
S680769
EAN Code
0672042097708
Manufacturer
SUPERMICRO
