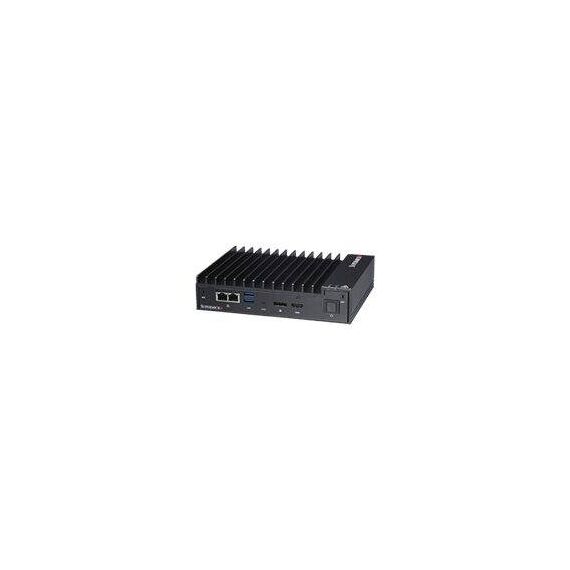

Supermicro SuperServer E100-9S - Server - USFF - 1-way - 1 x Core i7 7600U - RAM 0 GB - no HDD - HD Graphics 620 - GigE - no OS | SYS-E100-9S
Please sign in so that we can notify you about a reply
Special Fetures
- IoT gateway for smart
- Factory/building/home
- Kiosk, interactive info system
- Environmental monitor
Product Specification
| Type | Server |
| Product Form Factor | Ultra small form factor |
| Server Scalability | 1-way |
| Colour | Black |
| Processor / Chipset | |
| CPU | Intel Core i7 (7th Gen) 7600U |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| RAM | |
| Installed Size | 0 GB / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Unbuffered |
| Hard Drive | |
| Type | No HDD |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 620 |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel I219-LM, I210-IT |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x Mini PCIe - full-length, full-height ¦ 1 (total) / 1 (free) x M.2 Card - 2242/2280/3042 ¦ 2 (total) / 2 (free) x SO-DIMM 260-pin (1.2 V) |

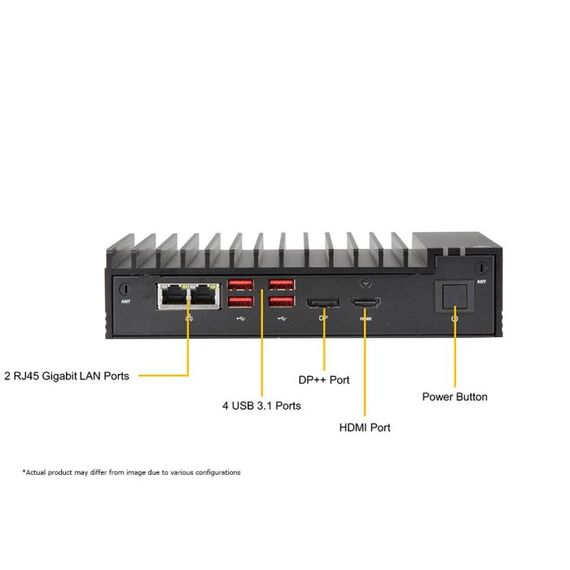

| Interfaces | 2 x LAN (Gigabit Ethernet) - RJ-45 (2 in front) ¦ 1 x USB-C 3.1 (1 in front) ¦ 2 x USB 3.0 (2 in front) ¦ 1 x HDMI (1 in front) ¦ 1 x DisplayPort (1 in front) ¦ 4 x USB 2.0 |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Power | |
| Device Type | Power adapter |
| Nominal Voltage | DC 12 V |
| Power Provided | 60 Watt |
| Operating System / Software | |
| OS Provided | No operating system |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - labour - 3 years ¦ Limited warranty - parts - 1 year |
| Dimensions & Weight | |

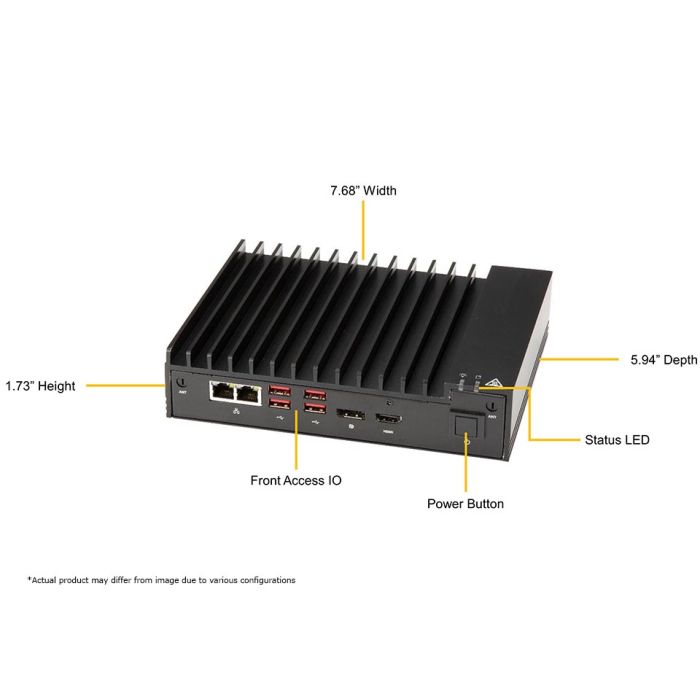

| Width | 19.5 cm |
| Depth | 15.1 cm |
| Height | 4.4 cm |
| Weight | 1.2 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
Features - SUPERMICRO - SYS-E100-9S
CPU Type
- Intel Core i7
More Details
Product Code
04:333439
EAN Code
0672042298679
Manufacturer
SUPERMICRO
