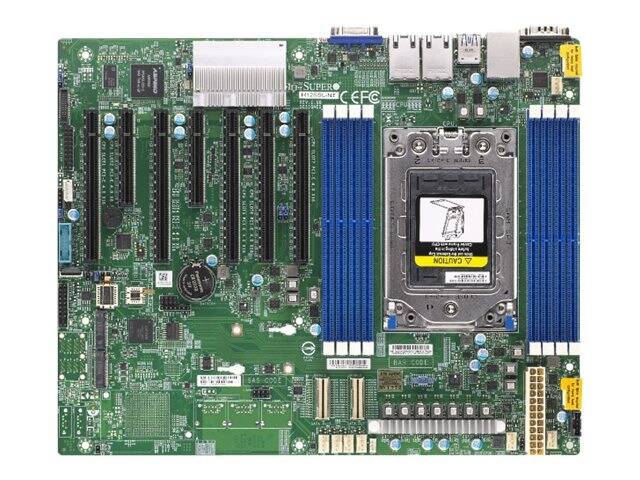

SUPERMICRO H12SSL-NT - Motherboard - ATX - Socket SP3 - USB 3.0 - 2 x 10 Gigabit LAN - onboard graphics | MBD-H12SSL-NT-O
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Processor Socket | Socket SP3 |
| Max Processors Qty | 1 |
| Compatible Processors | EPYC 7002 series |
| Supported RAM | |
| Max Size | 2 TB |
| Technology | DDR4 |
| Bus Clock | 3200 MHz |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered |
| Features | 8-channel memory architecture |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| LAN | |
| Network Controller | Broadcom BCM57416 |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin (1.2 V) ¦ 5 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x8 |
| Storage Interfaces | SATA-600 / PCIe -connectors: 2 x SlimSAS ¦ PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces | 2 x LAN (10Gigabit Ethernet) ¦ 1 x VGA ¦ 4 x USB 3.0 ¦ 1 x serial ¦ 1 x management |
| Internal Interfaces | 2 x USB 3.0 - header |
| Features | |
| BIOS Type | AMI |
| BIOS Features | Power failure recovery (AC loss resume), DMI 2.3 support, IPMI 2.0 support, ACPI 5.1 support, SMBIOS 3.1.1 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, chassis fan tachometer, system voltage, CPU core voltage |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection |
| Miscellaneous | |
| Included Accessories | I/O back cover |
| Cables Included | 1 x Slim SAS to 8 x SATA cable |
| Compliant Standards | Plug and Play |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Package Type | Retail |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
Features - SUPERMICRO - MBD-H12SSL-NT-O
CPU Socket
- Socket SP3
More Details
Product Code
07:116714
EAN Code
0672042423361
Manufacturer
SUPERMICRO
