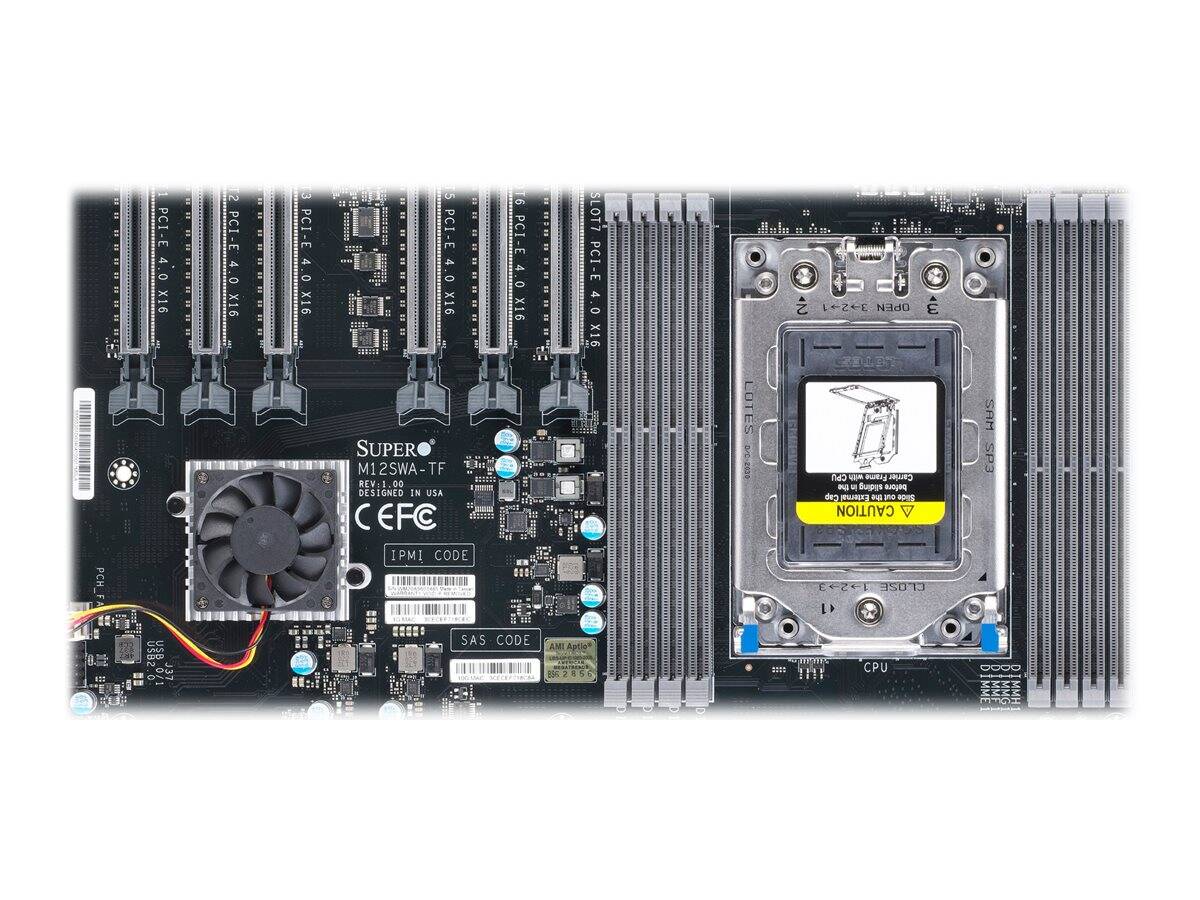

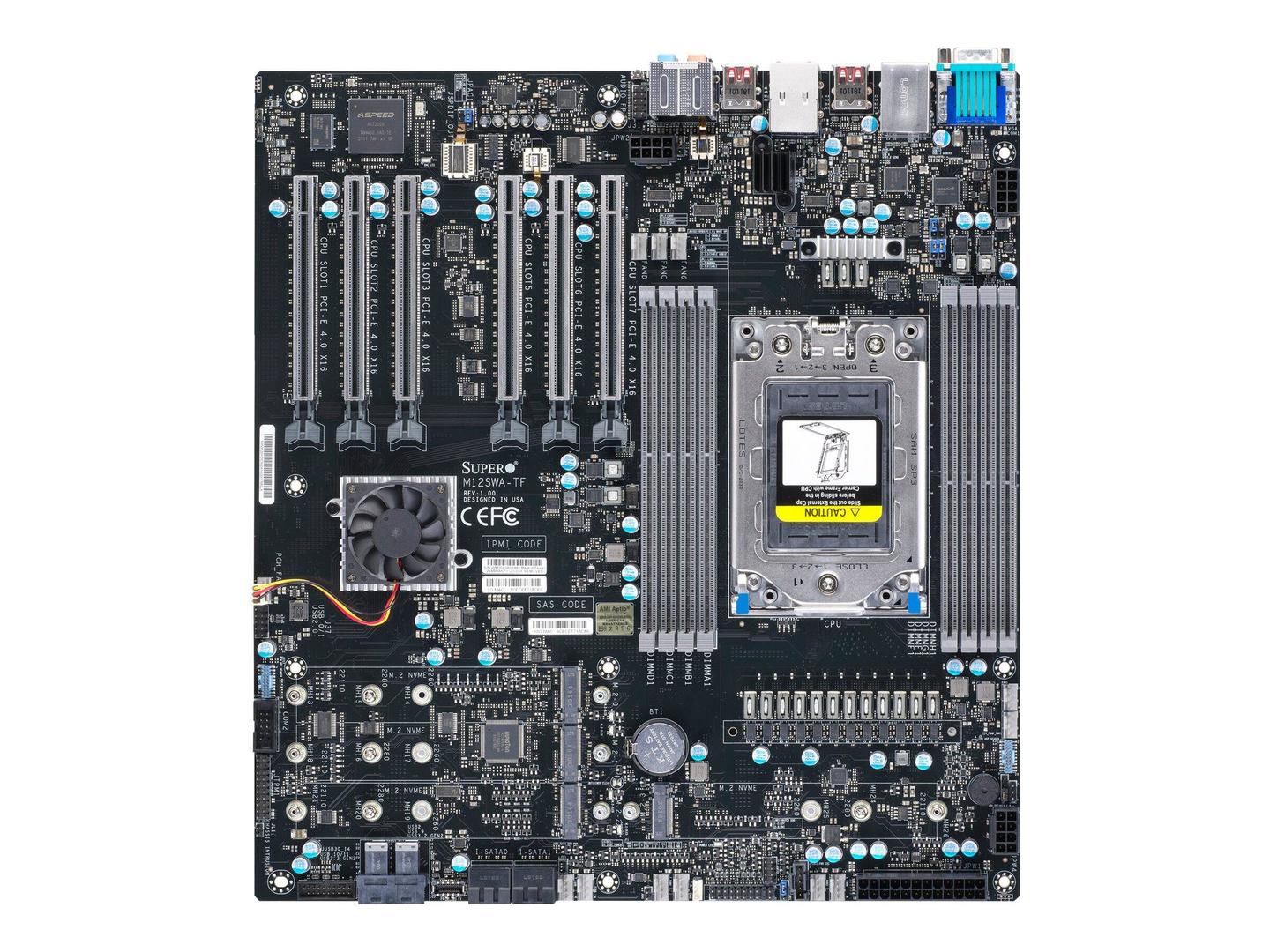

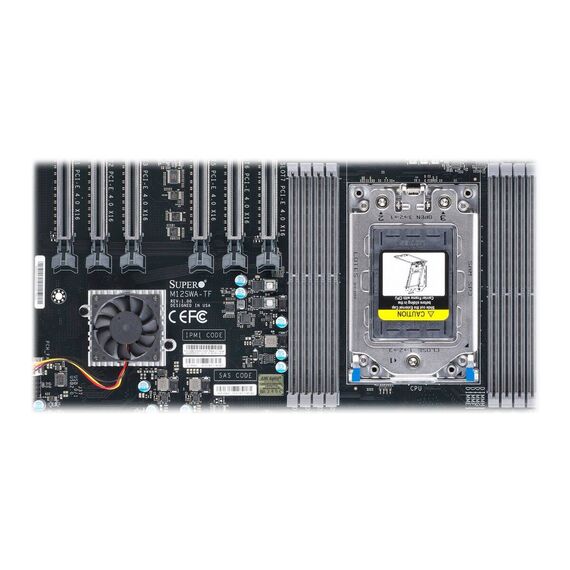

SUPERMICRO M12SWA-TF - Motherboard - extended ATX - Socket sWRX8 - AMD WRX80 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - 10 Gigabit LAN, Gigabit LAN - onboard graphics - HD Audio (8-channel) | MBD-M12SWA-TF-O

SUPERMICRO M12SWA-TF - Motherboard - extended A | MBD-M12SWA-TF-O

Description
Features
Reviews

Special Fetures

AMD Ryzen Threadripper PRO 3000WX series processor
PCI-E 4.0 x16 slots
SATA 3.0 6Gbps
10GBase-T LAN port
GbE LAN port (shared with IPMI)
ASPEED AST2600 BMC graphics
USB 3.2 Gen2x2 port
USB 3.2 Gen2 ports
USB 3.2 Gen1 ports
USB 2.0 ports via header
8.1 COM port (rear)
TPM 2.0 header
7.1 channel HD audio
10-fan header, 4-pin type fan header, 112V power header for liquid cooling

Product Specification

Product Type	Motherboard - extended ATX
Chipset Type	AMD WRX80
Processor Socket	Socket sWRX8
Max Processors Qty	1
Compatible Processors	Ryzen ThreadRipper PRO (supports CPUs with up to 64 cores, Maximum TDP 280 Watt)
Supported RAM
Max Size	2 TB
Technology	DDR4
Bus Clock	3200 MHz
Supported RAM Integrity Check	Non-ECC, ECC
Registered or Buffered	Registered, unbuffered
Features	8-channel memory architecture
Details	2 TB - registered - ECC ¦ 256 GB - unbuffered - non-ECC
Graphics
Graphics Controller	ASPEED AST2600
Audio
Type	HD Audio (8-channel)
Audio Codec	Realtek ALC1220 / Realtek ALC4050H
Compliant Standards	High Definition Audio
LAN
Network Controller	Marvell AQC113C / Intel I210-AT
Network Interfaces	10 Gigabit Ethernet, Gigabit Ethernet
Expansion / Connectivity
Expansion Slots	1 x CPU ¦ 8 x DIMM 288-pin (1.2 V) ¦ 6 x PCIe 4.0 x16
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe -connectors: 2 x U.2 - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces	1 x LAN (Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 4 x USB 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x VGA ¦ 1 x serial
Internal Interfaces	2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header
Features
BIOS Features	ACPI support, IPMI 2.0 support
Hardware Monitoring	CPU core temperature, chassis temperature, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
Sleep / Wake Up	Keyboard wake up
Hardware Features	Chassis intrusion detection, WatchDog Timer
Miscellaneous
Software Included	SuperDoctor 5
Width	30.48 cm
Depth	33.02 cm
Package Type	Retail
Manufacturer Warranty
Service & Support	Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years
