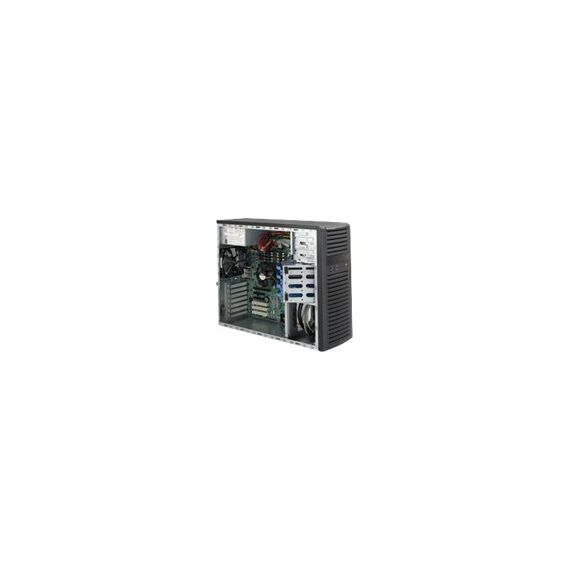

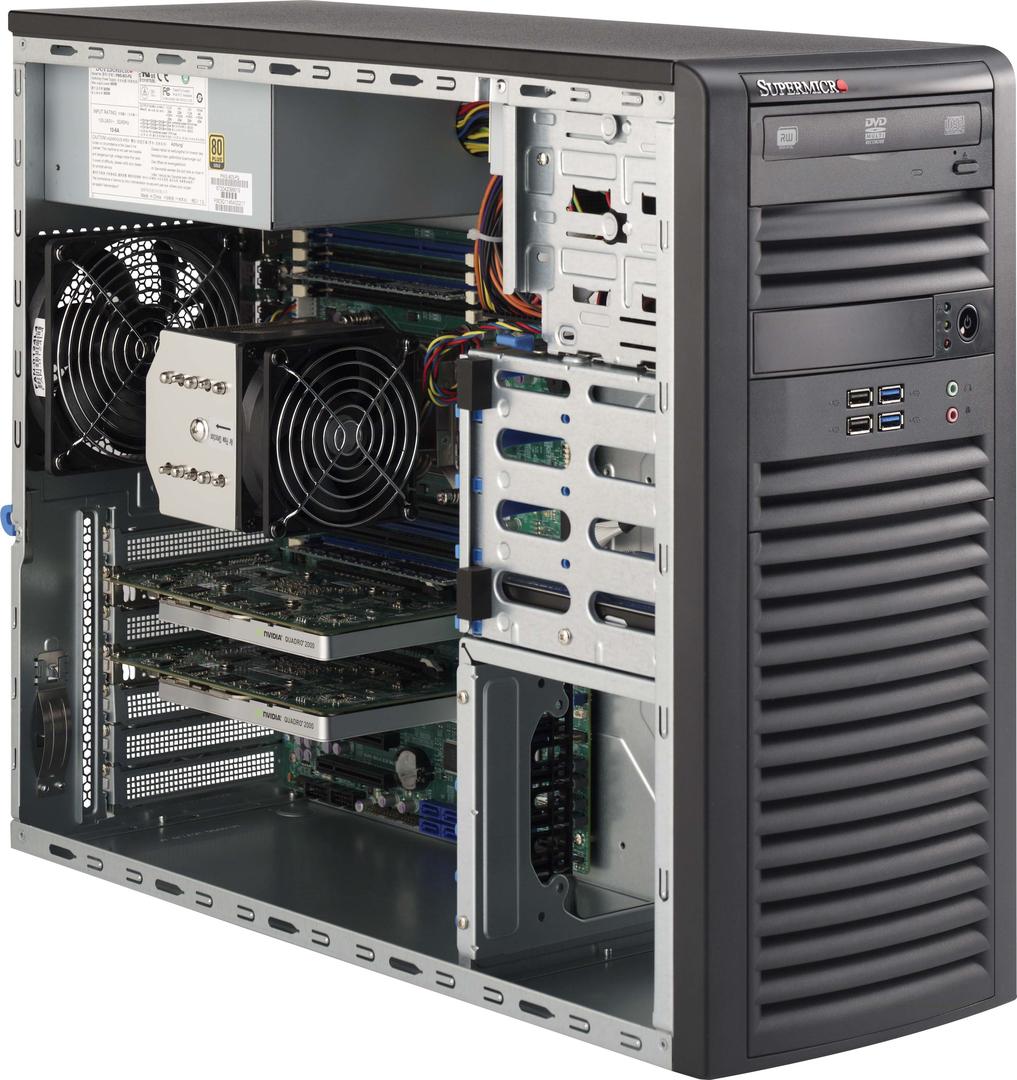

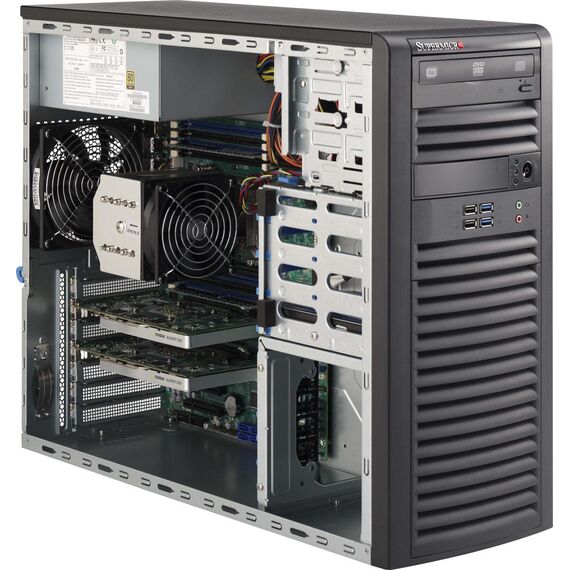

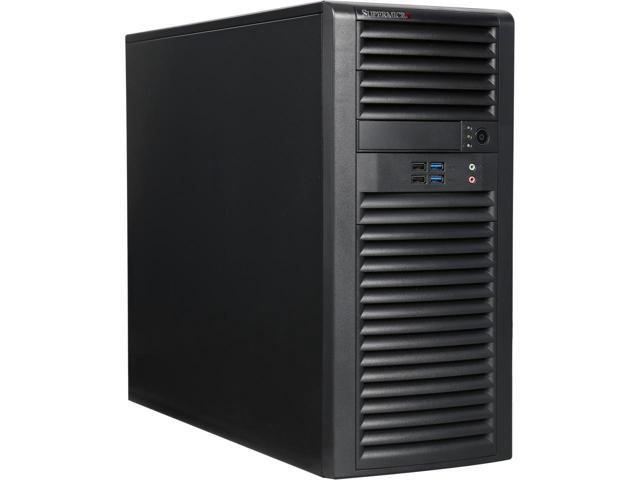

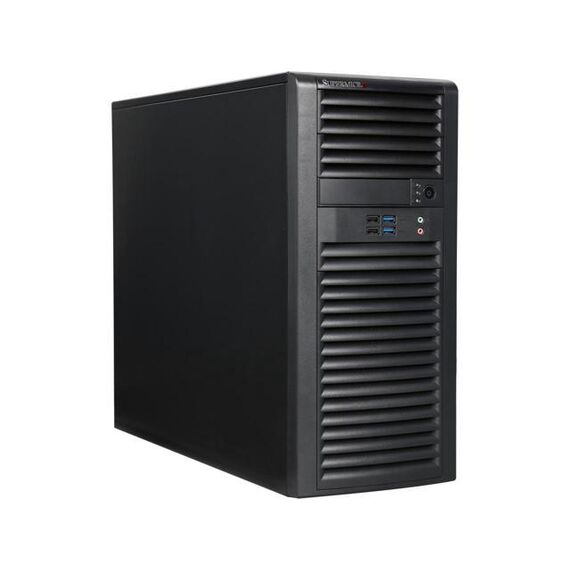

Supermicro SC732 D4-903B / Tower / extended ATX 900 Watt / black / USB/Audio | CSE-732D4-903B
CSE-732D4-903B
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- 90° rotatable HDD cage design
- 7 x full-height, full-length PCI expansion slots
- High efficiency power supply
- Cost effective desktop, embedded workstation chassis
Product Specification
| Form Factor | Tower |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | ATX, microATX, Extended ATX |
| Internal Bays Qty | 4 |
| Front Accessible Bays Qty | 3 |
| Built-in Devices | Led panel |
| Colour | Black |
| Cooling System | Rear: 120 mm fan x 1 / exhaust / 1850 rpm / 21dB Whisper-Quiet Operation Front: 120 mm fan mount x 1 / 1850 rpm |
| System Cabinet Features | Rotational drive cage |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 2 (total) / 2 (free) x front accessible - 5.25" 1 (total) / 1 (free) x front accessible - 3.5" 4 (total) / 4 (free) x internal - 3.5" |
| Expansion Slots | 7 x full-length, full-height |
| Interfaces | 2 x USB 2.0 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 2 x USB 3.0 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | UL, TUV, cUL, EN 60950, IEC 60950, CCC, FCC |
| Power | Power |
| Power Device | Power supply |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Provided | 900 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Dimensions & Weight | Dimensions & Weight |
| Width | 42.4 cm |
| Depth | 52.53 cm |
| Height | 19.3 cm |
| Weight | 13.6 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - labour - 3 years Limited warranty - parts - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
Features - SUPERMICRO - CSE-732D4-903B
More Details
Product Code
04:141799
EAN Code
0672042108152
Manufacturer
SUPERMICRO
